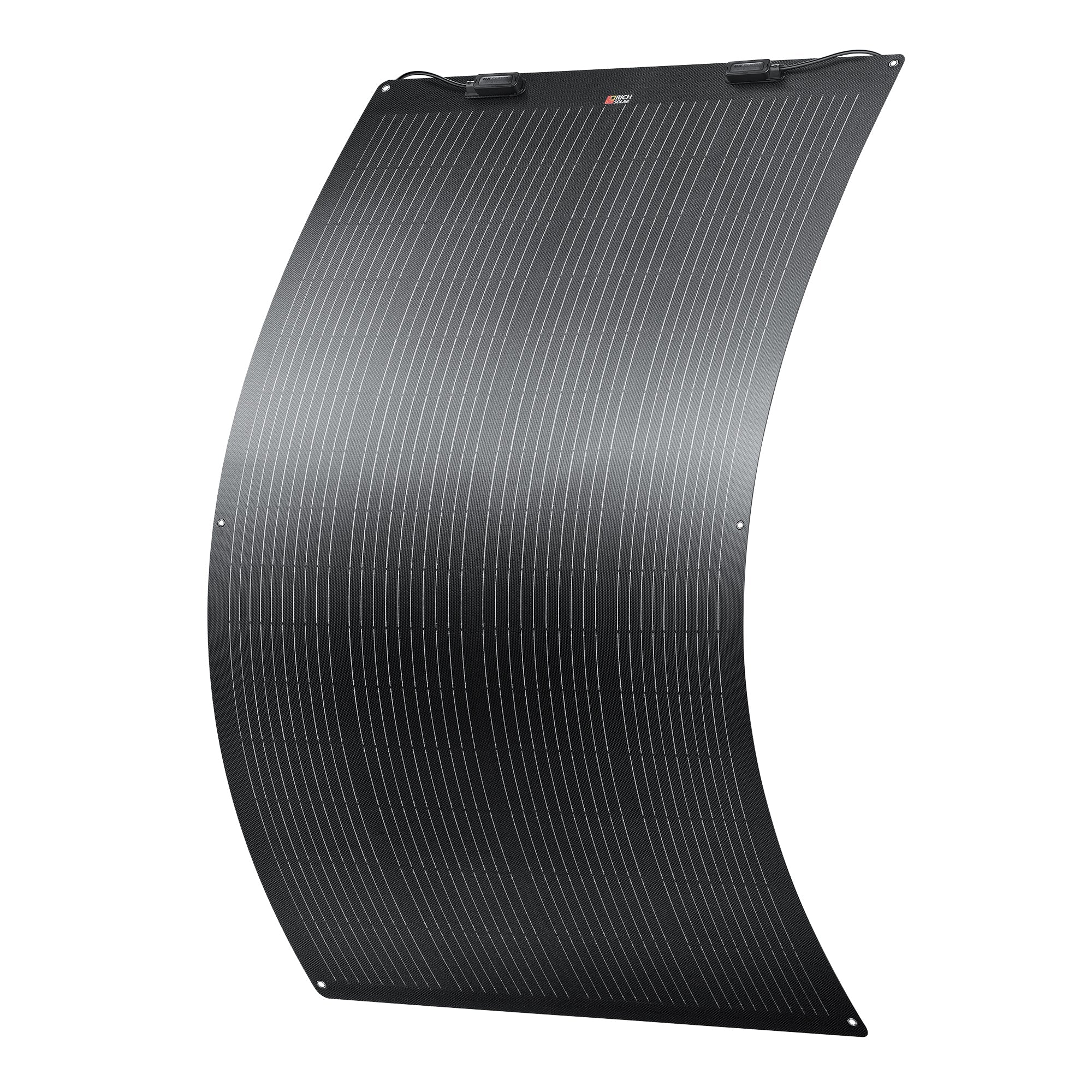

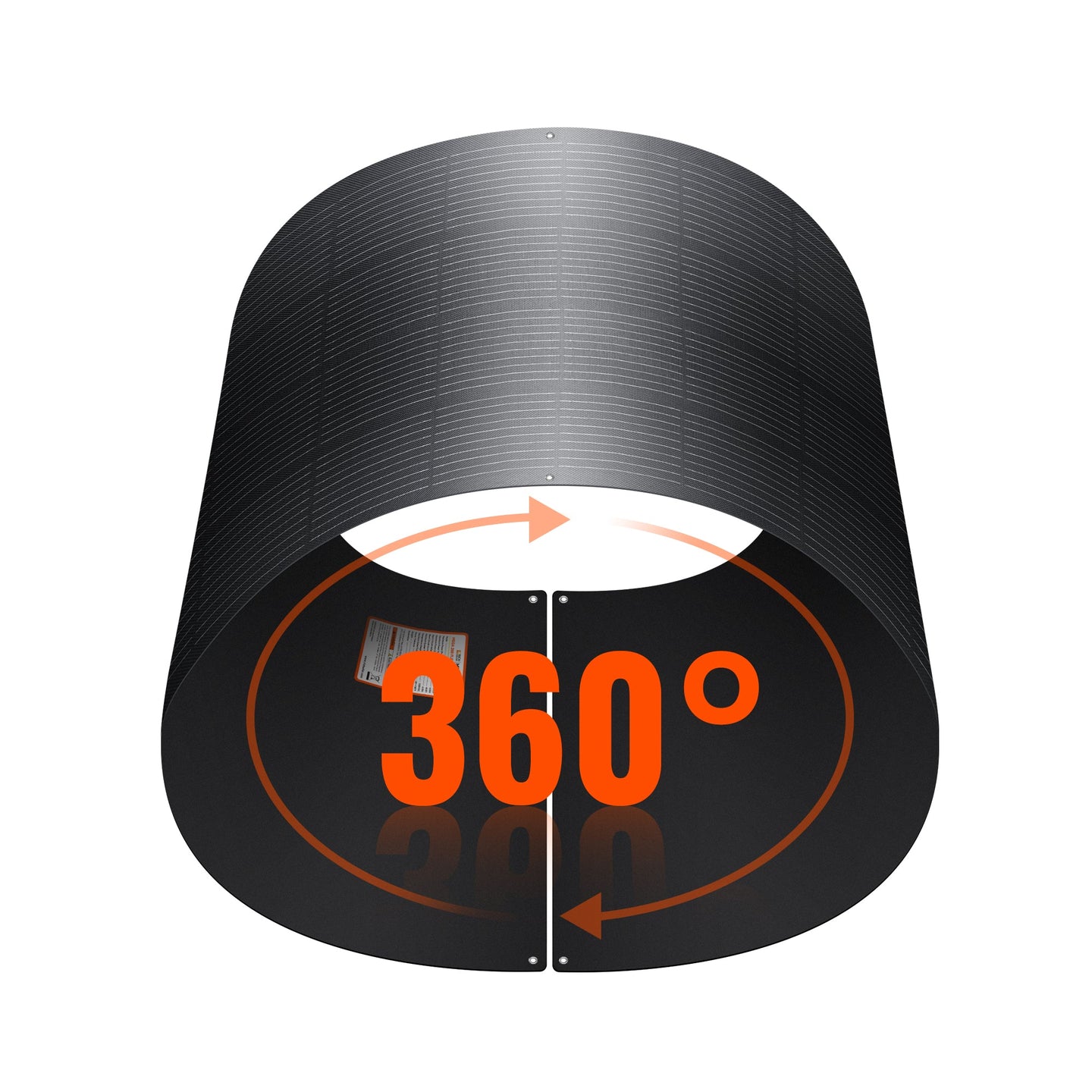

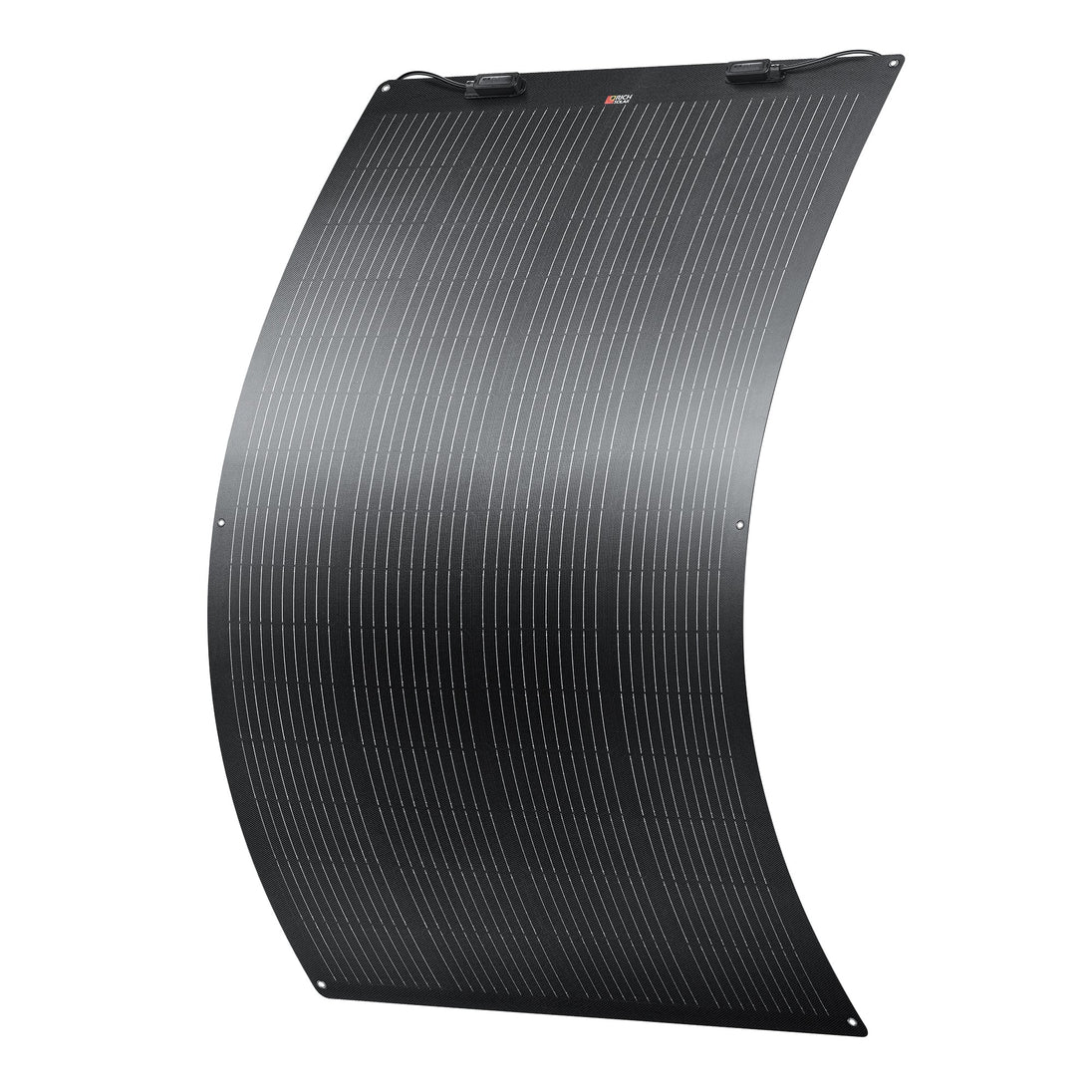

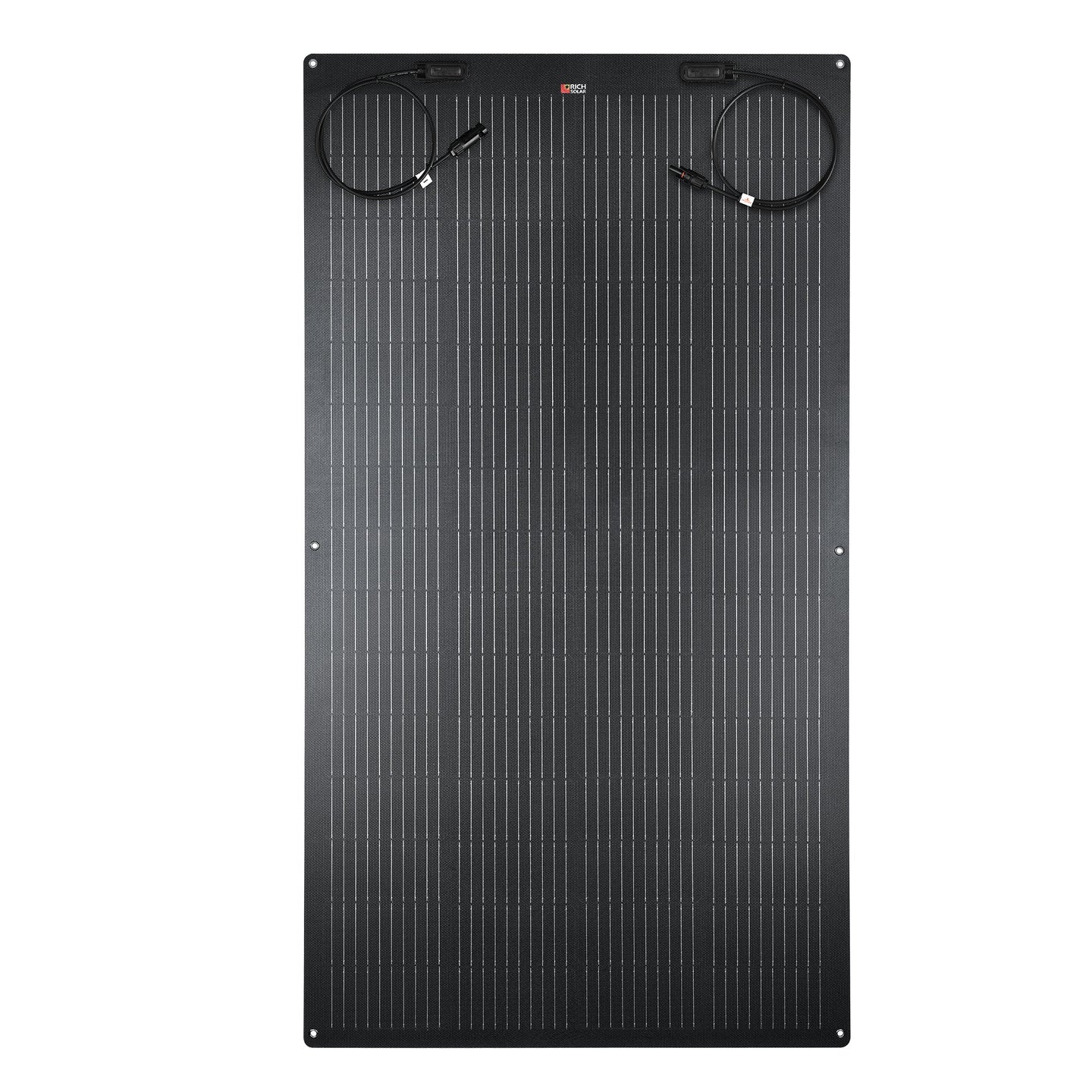

360° bendable panel conforms to curved surfaces such as RV roofs or boats.
Ultra-thin 0.1" profile delivers a sleek, space-saving appearance.
Ultra-lightweight at just 8.1 lb, easy to handle and transport.

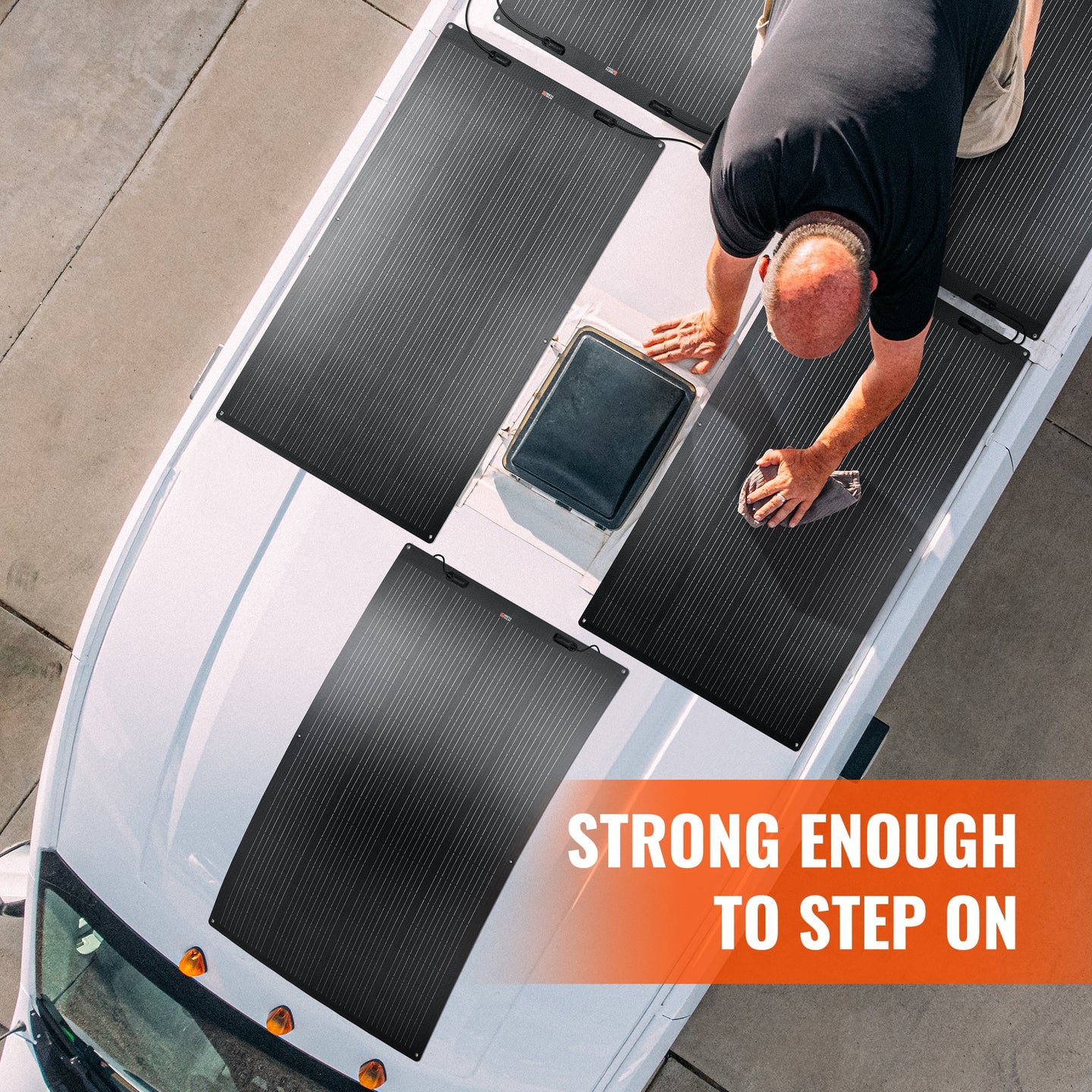

Walkable design withstands foot traffic without damage.
Technology & Performance
10-busbar cell technology enhances light capture, reduces resistance, and boosts current collection.
Superior low-light performance delivers reliable power in cloudy weather, at dawn, and at dusk.
A low temperature coefficient maintains strong output under hot conditions.
Non-destructive cell cutting technology minimizes micro-cracks for long-term durability.
Advanced processing and premium materials ensure PID resistance.
Outdoor Durability
IP68 waterproof rating for all-weather protection.
Certified to withstand a 5,400 Pa front load and 2,400 Pa back load.
Wide temperature range from -40°F to +185°F for extreme environments.
Easy Installation
Plug-and-play connectors support both series and parallel wiring.

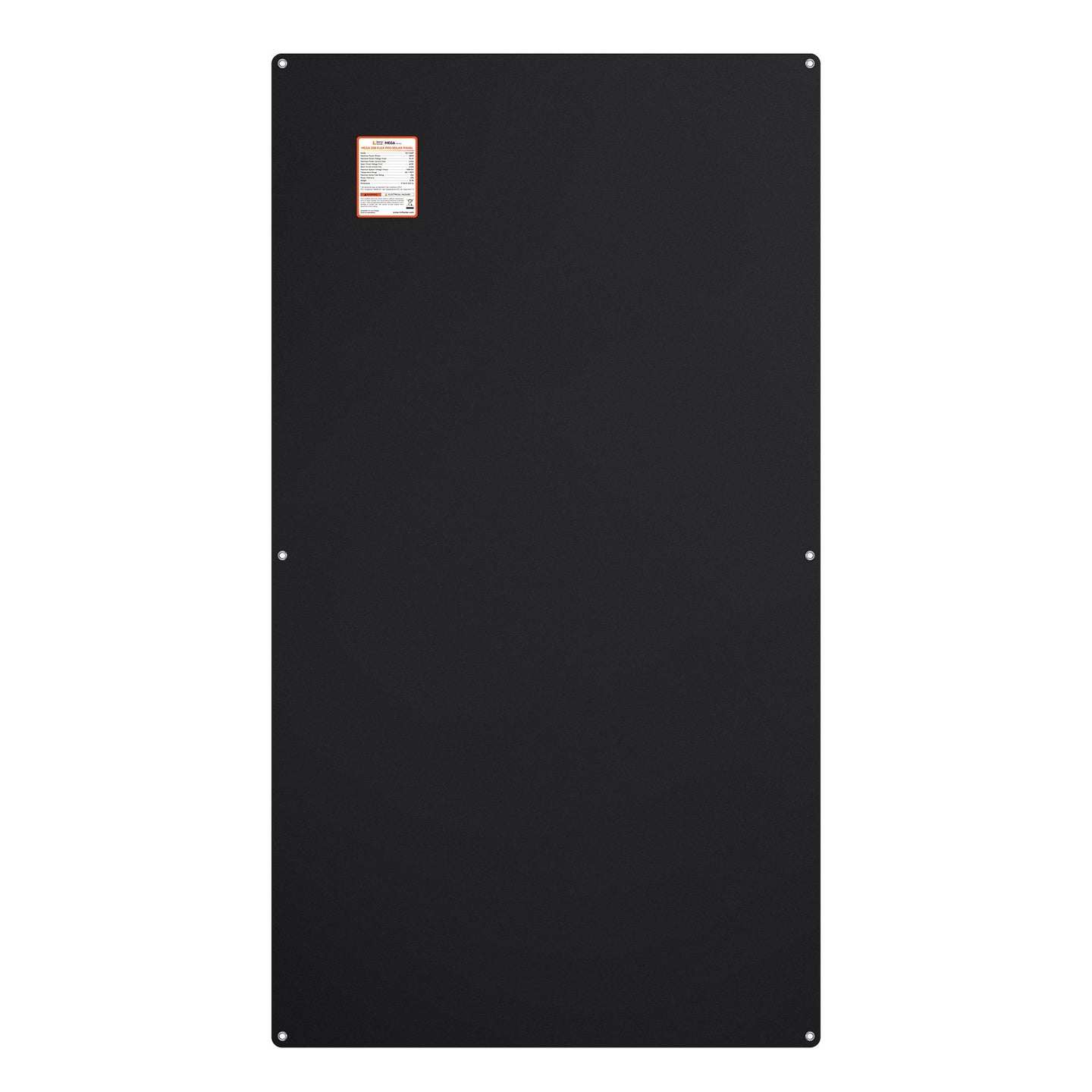

Pre-drilled mounting holes for flexible installation options.
Specifications
Maximum Power (Pmax): 200W
Maximum Power Voltage (Vmp): 34.2V
Maximum Power Current (Imp): 5.85A
Open Circuit Voltage (Voc): 40.8V
Short Circuit Current (Isc): 6.23A
Maximum System Voltage (Vmax):1500VDC
Maximum Series Fuse Rating: 15A
Temperature Range: -40~+185°F
Weight: 8.6 lb

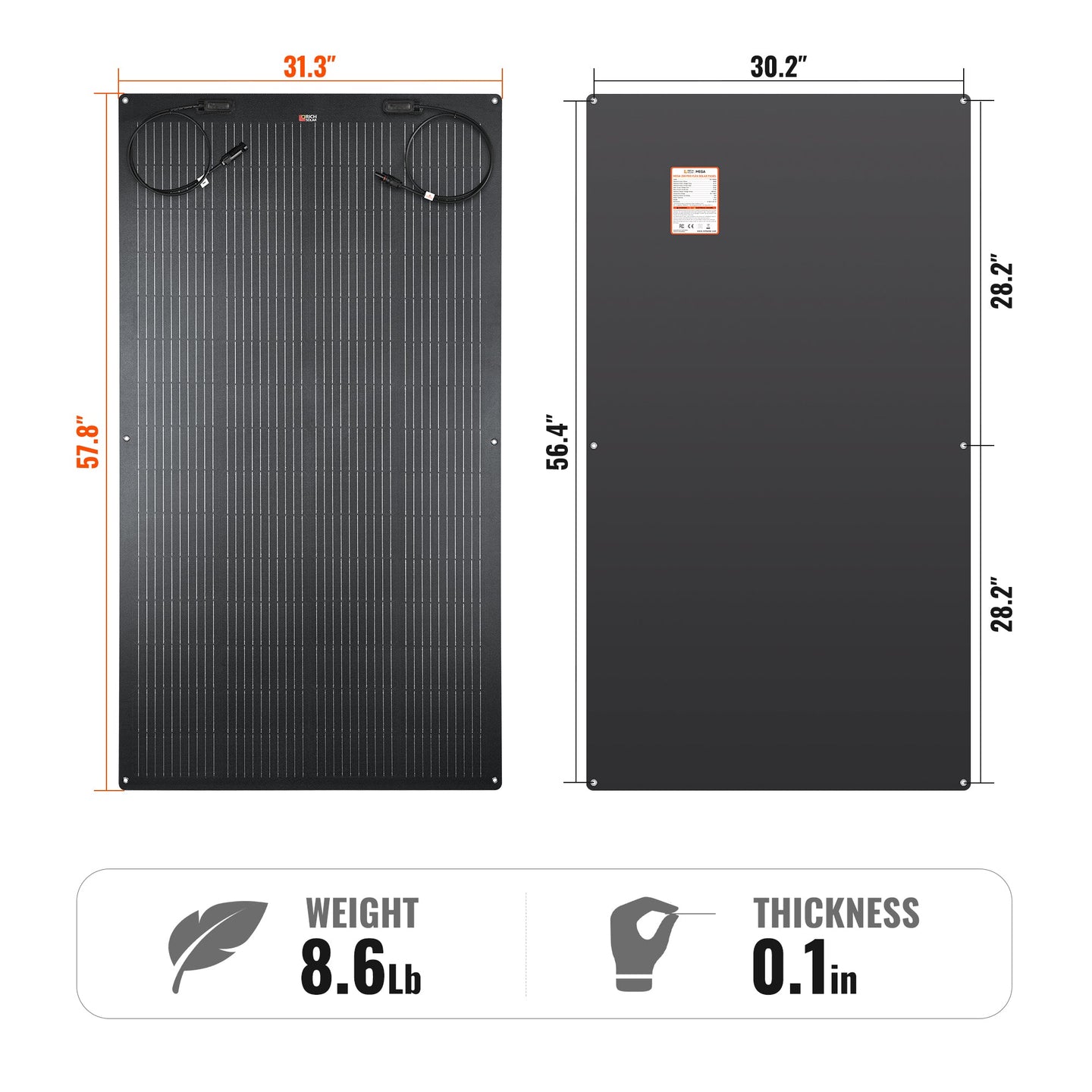

Dimensions: 57.8 x 31.3 x 0.1 in
Material and Workmanship Warranty: 1 year
