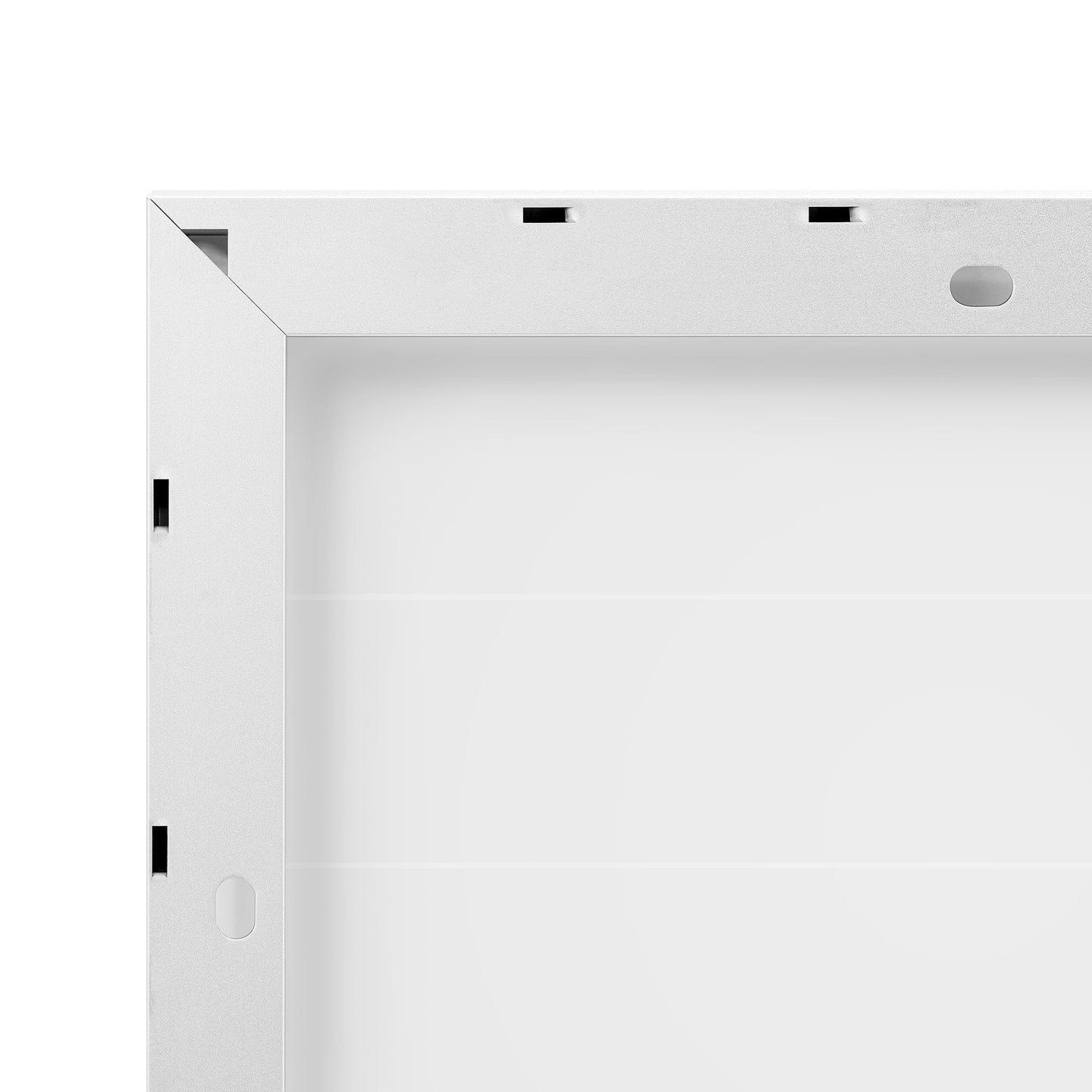

Built with strong tempered glass and an aluminum frame.
Certified to withstand challenging environmental conditions.
Installation
Easy installation and handling for various applications.
Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts, and tilt mounts.
Compatible with on-grid and off-grid inverters.
Warranty
25-year power output warranty
10-year workmanship warranty
Built-in Components
Panel Leads (Pair): 12AWG 2FT

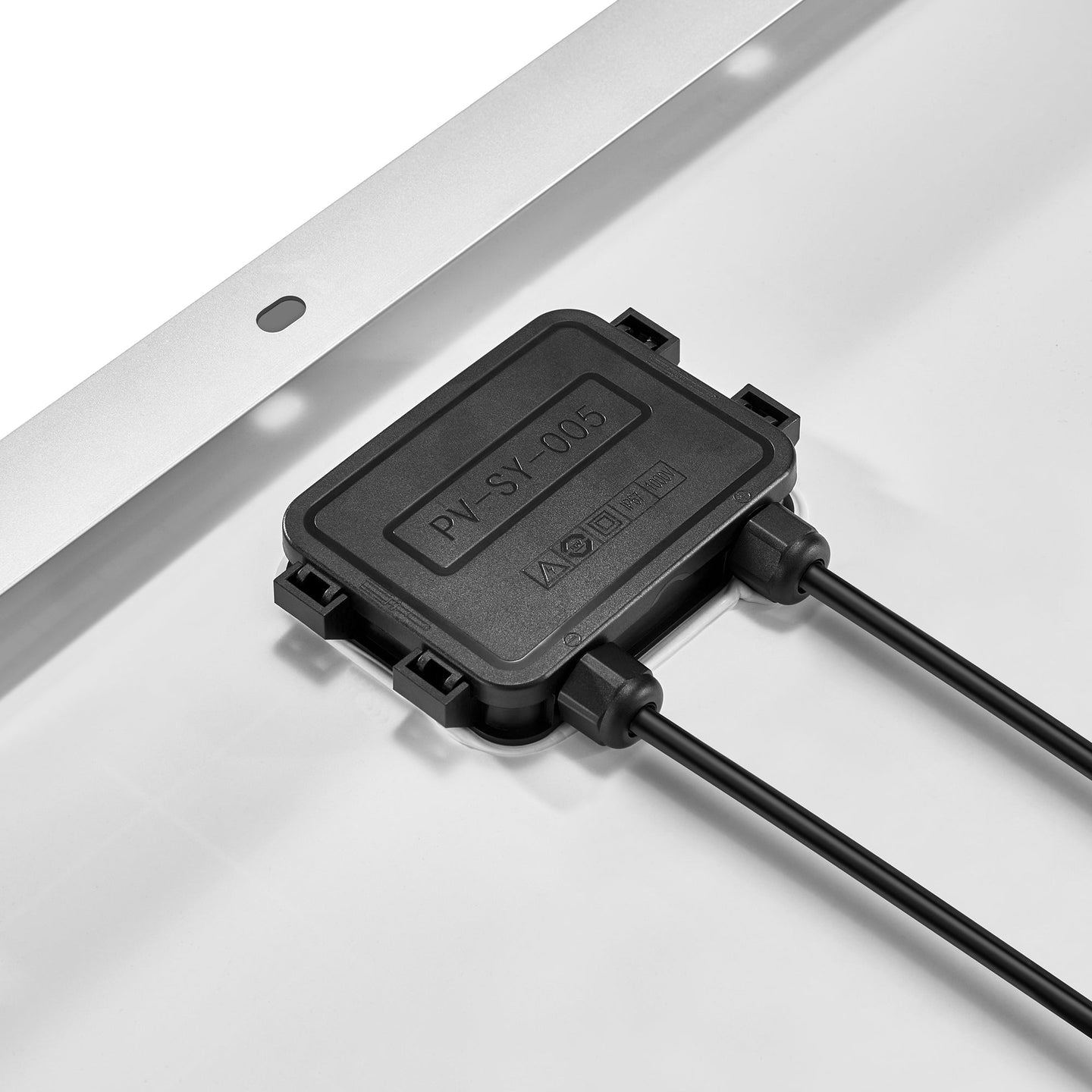

IP67-rated waterproof junction box

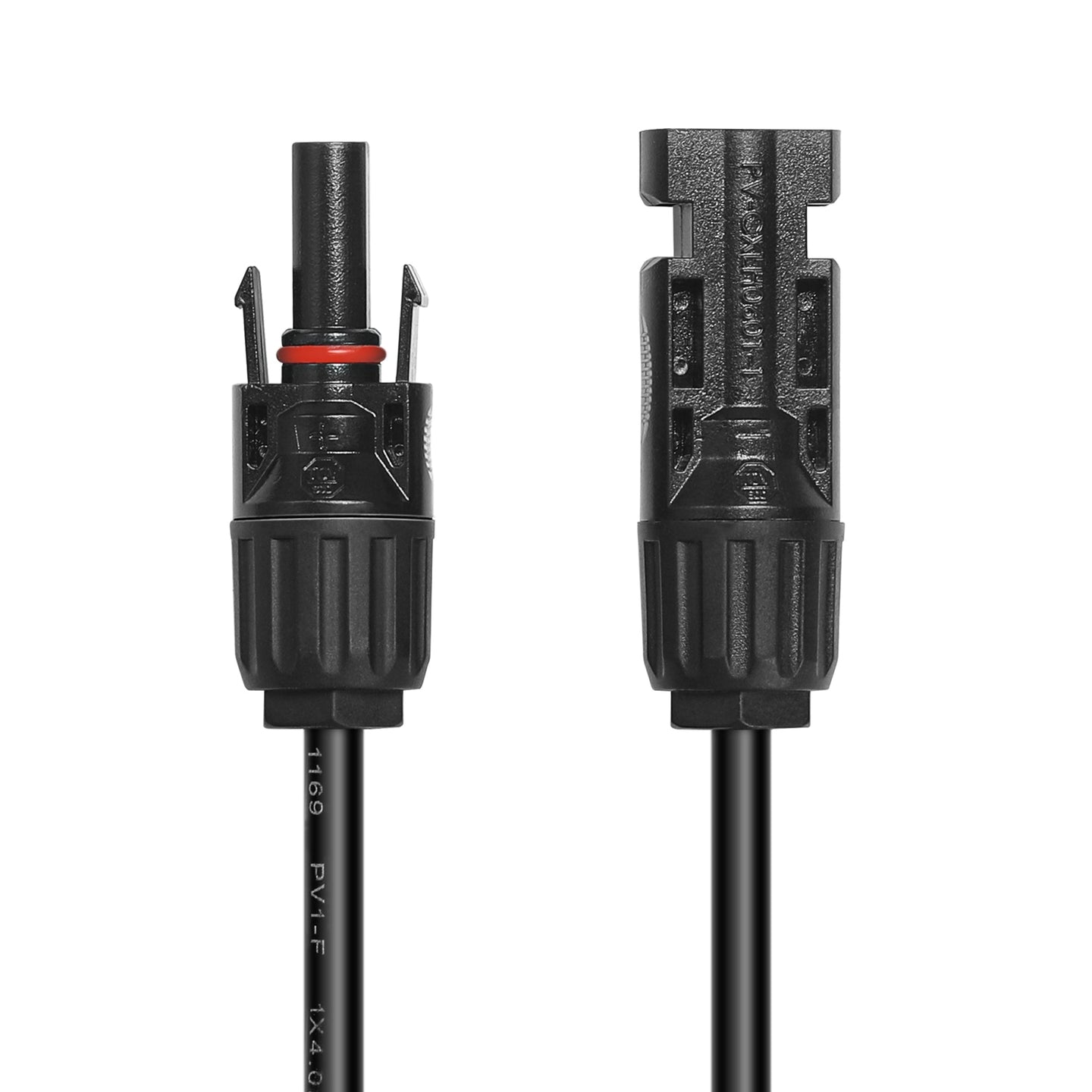

IP67-rated waterproof solar connectors
Specifications
Maximum Power(Pmax): 50W
Maximum Power Voltage(Vmp): 17.6V
Maximum Power Current(Imp): 2.84A
Open Circuit Voltage(Voc): 20.8V
Short Circuit Current(Isc): 3.13A
Maximum System Voltage(Vmax): 1000VDC
Maximum Series Fuse Rating: 10A
Weight: 8.0 lb

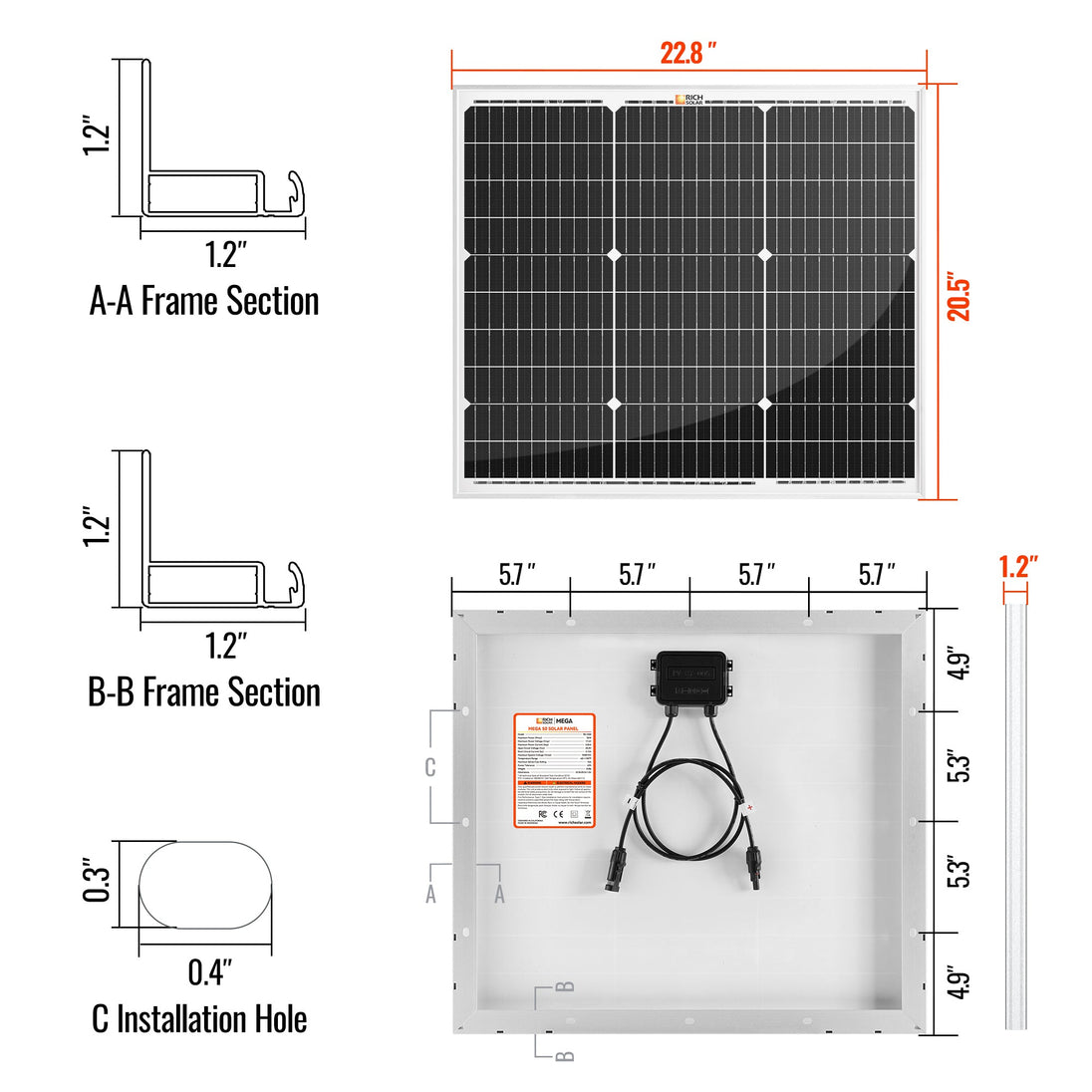

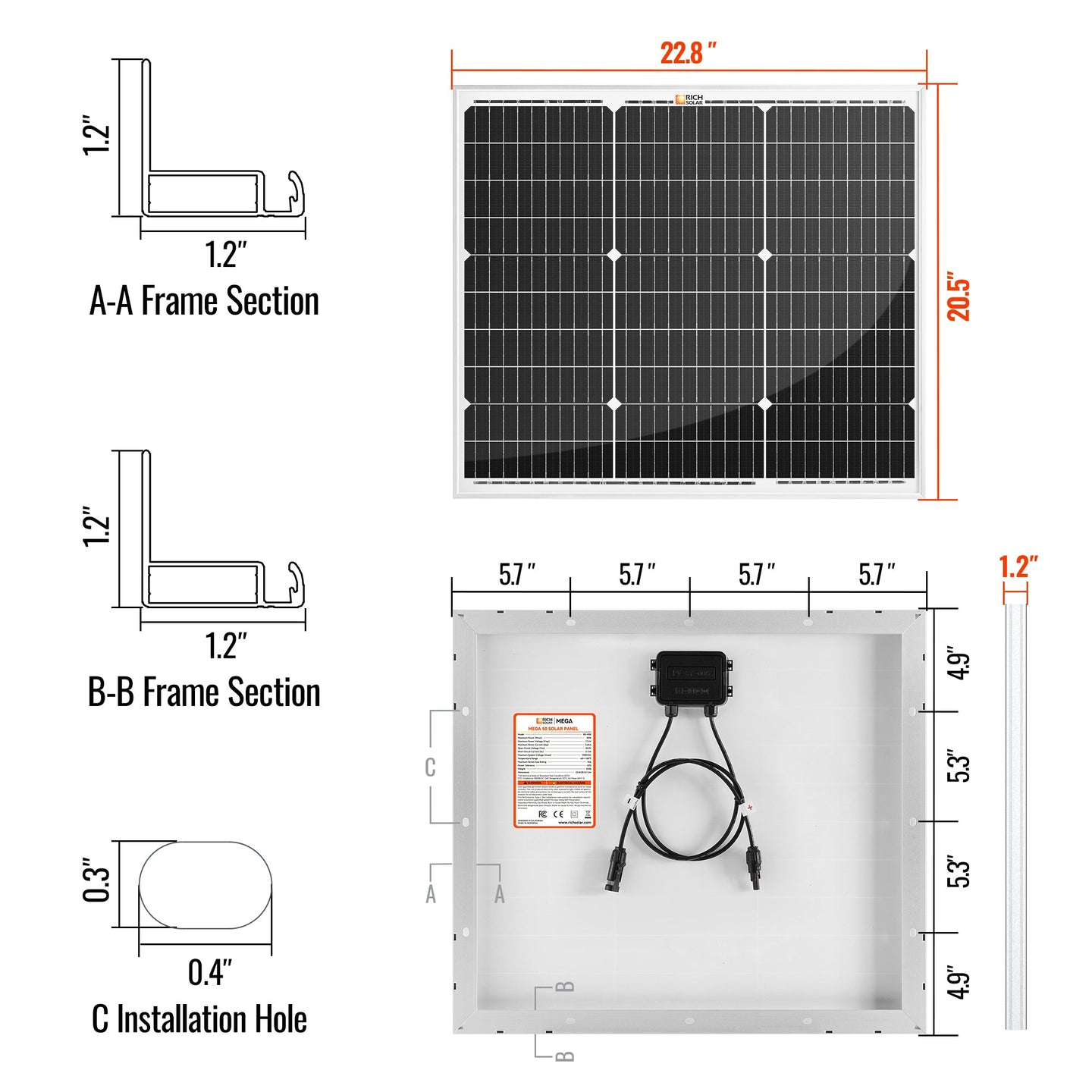

Dimensions: 22.8x20.5x1.2 in
