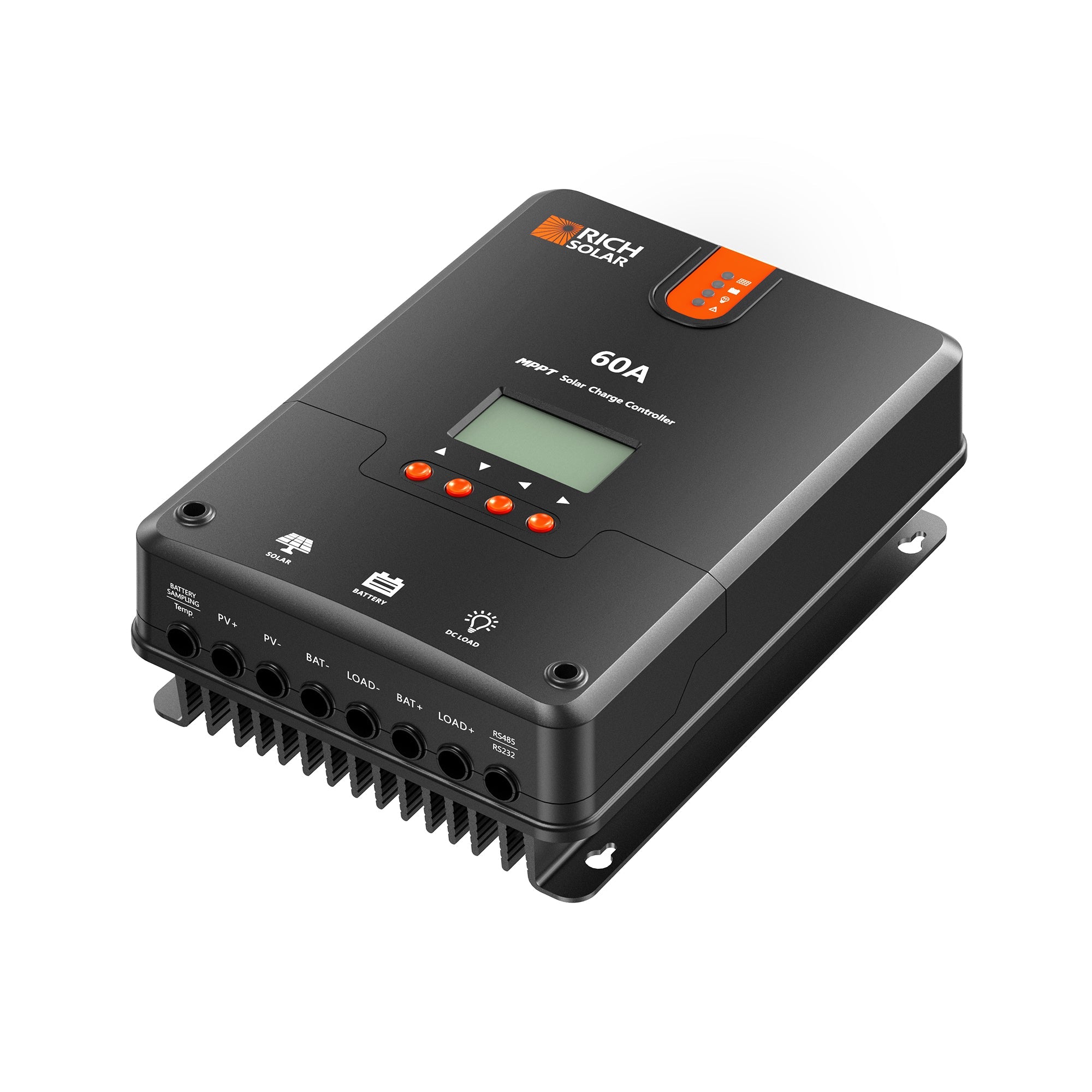

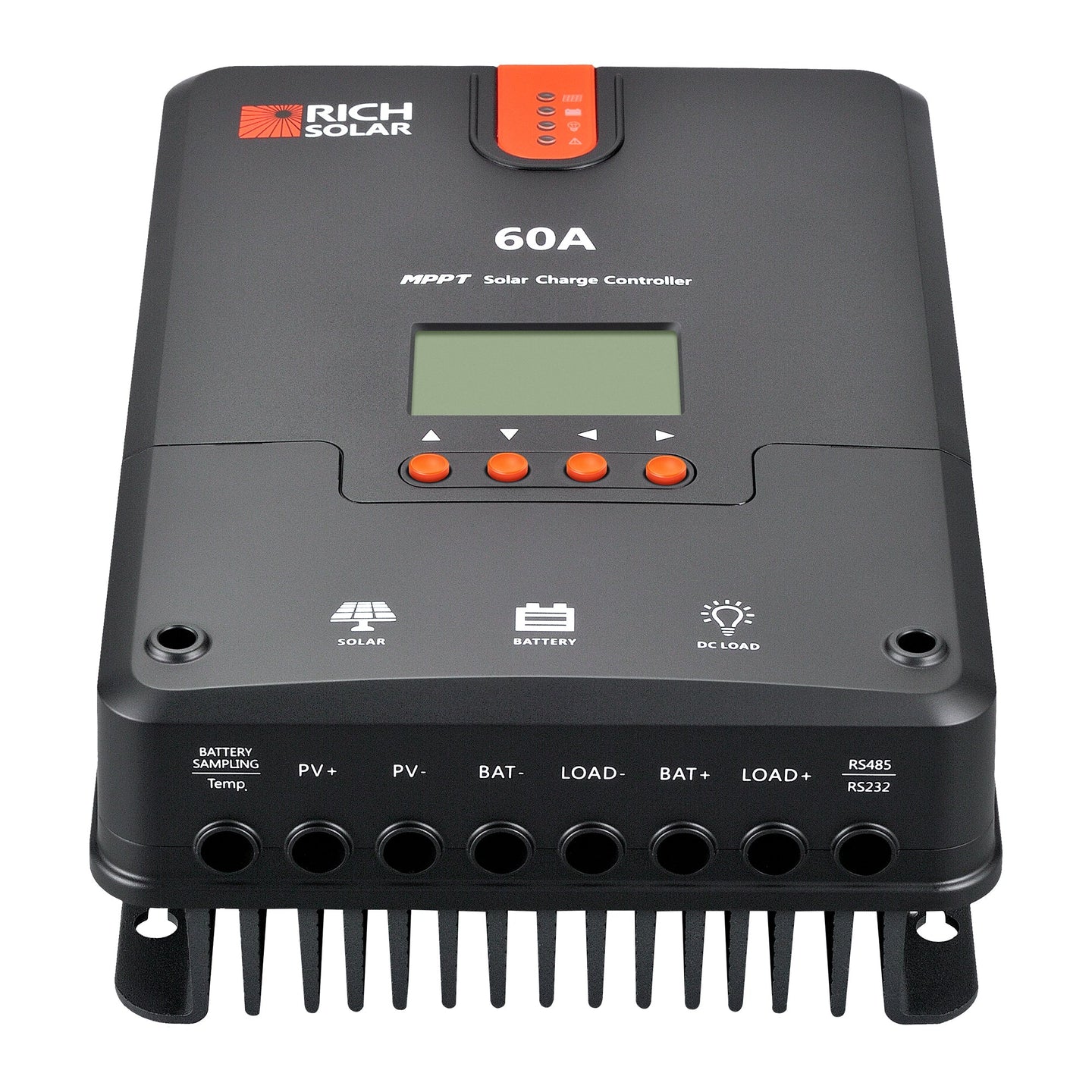

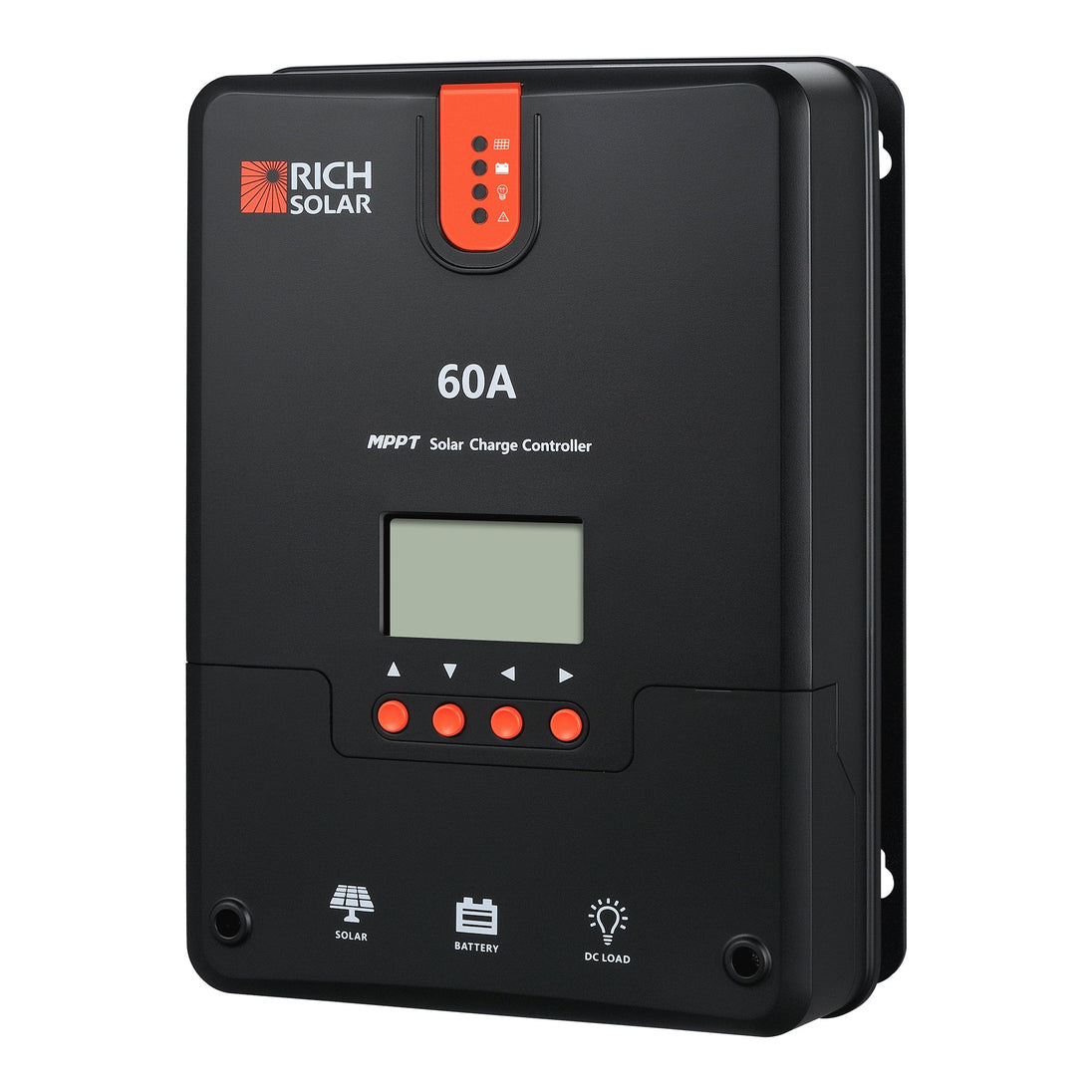

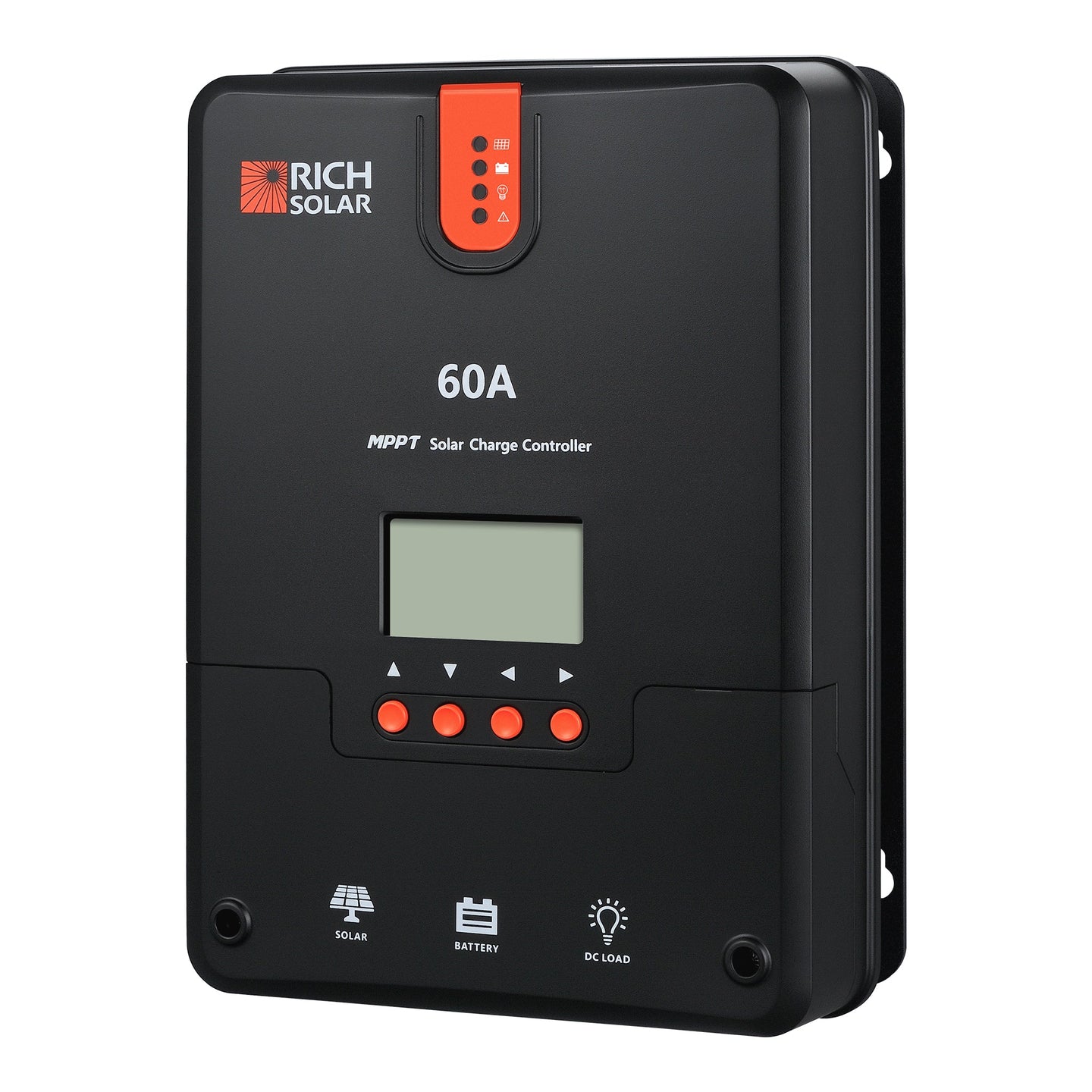

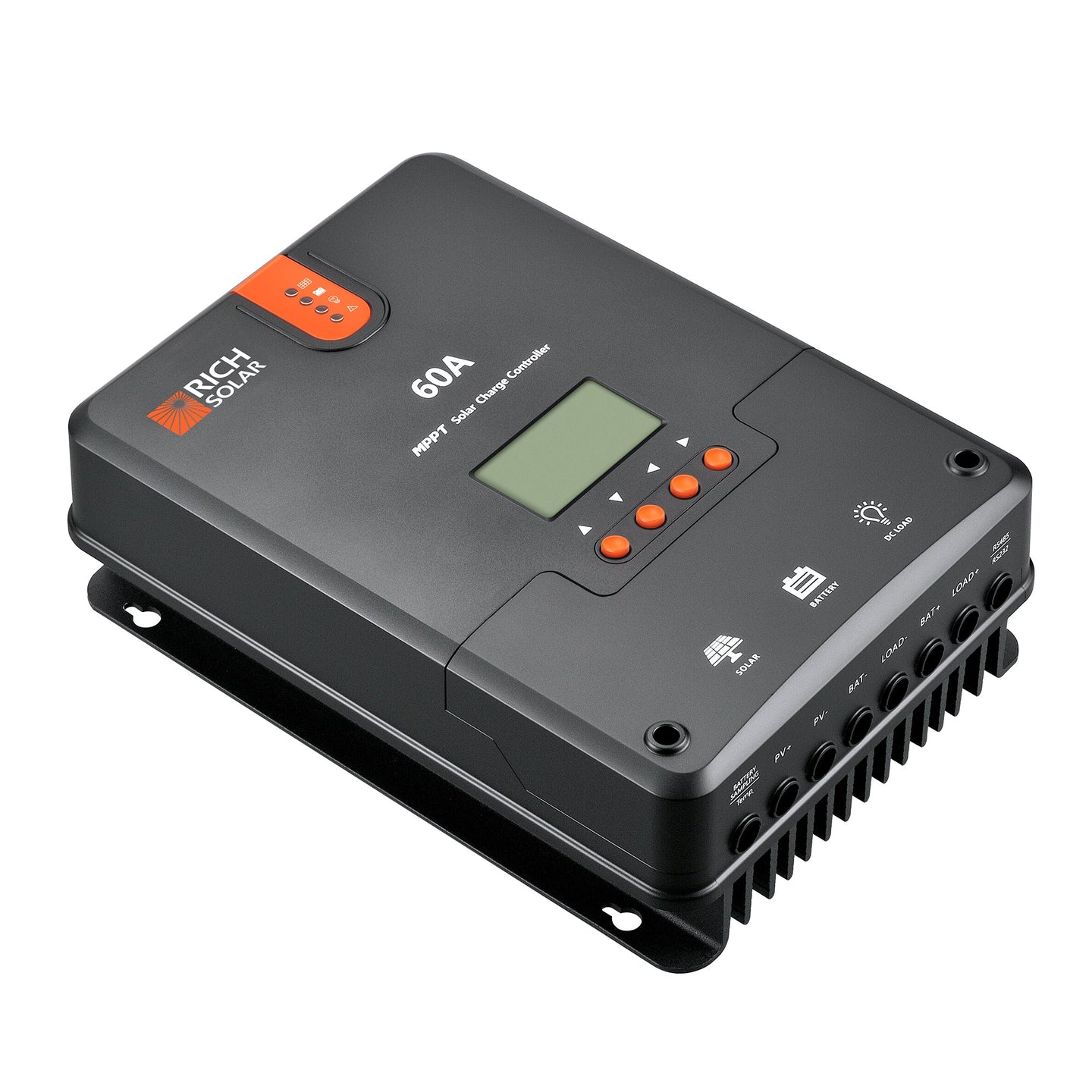

60 Amp MPPT Solar Charge Controller

Features

• Automatically detects 12V/24V/36V/48V DC system voltages.
• Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.
• Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
• Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.

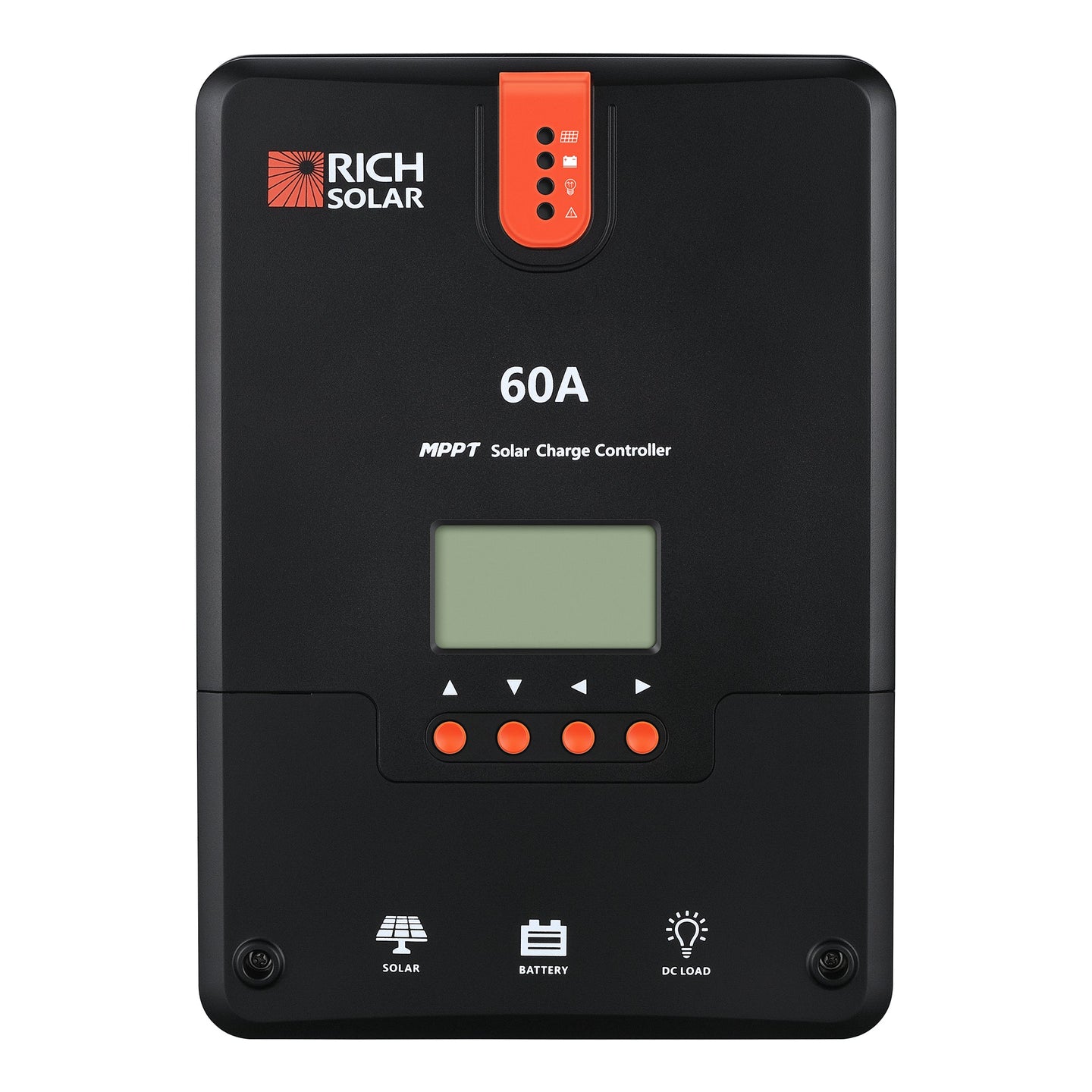

• LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
• Features diverse load control; also capable of charging over-discharged lithium batteries.

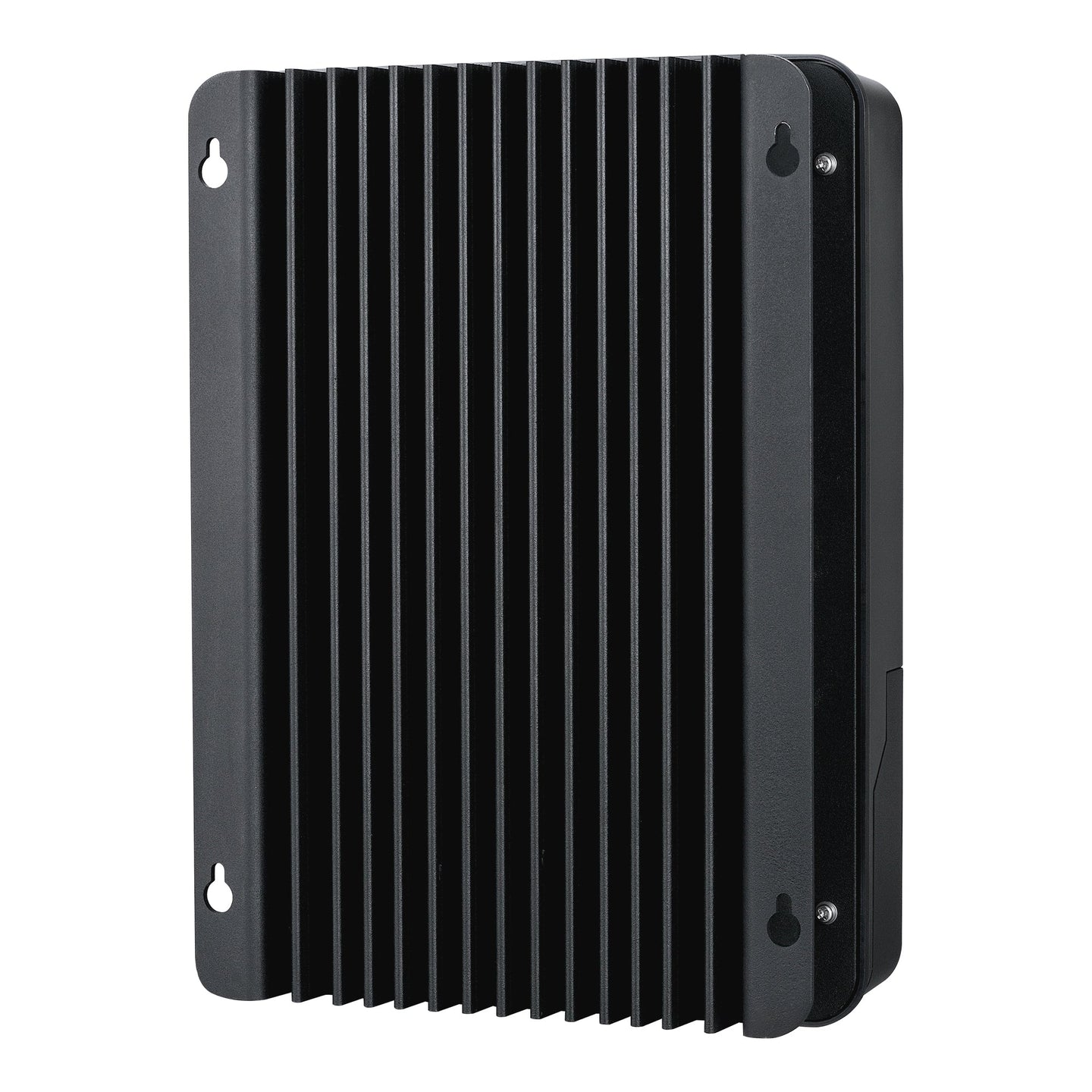

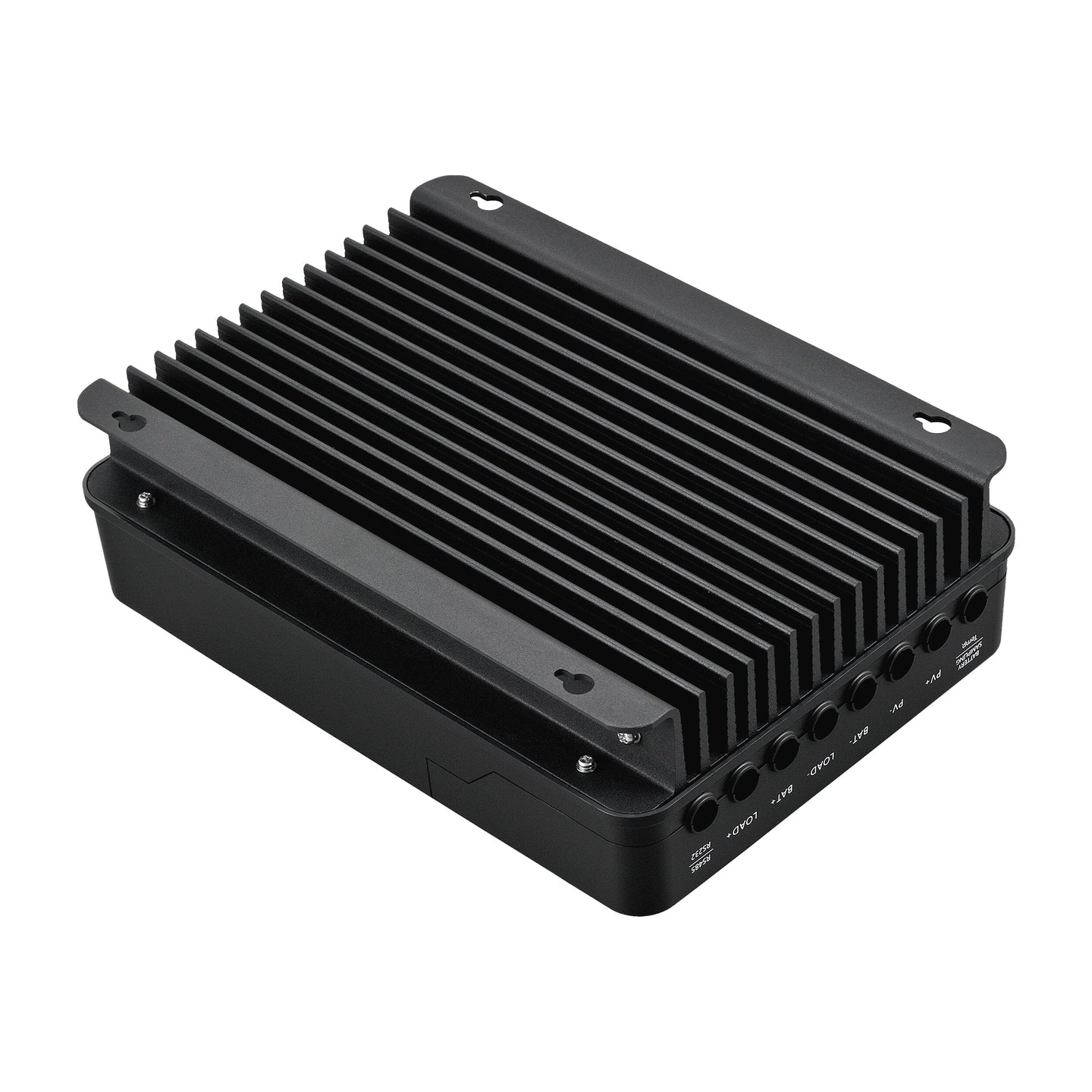

• Die-cast aluminum design allows for efficient heat dissipation.
• RS232 port for communicating with BT-1 Bluetooth module.

Specifications

• Rated Battery Current: 60A
• Rated Load Current: 20A
• Max Solar Input Voltage: 150V(77℉), 145V(-13℉)
• Max Solar Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
• Charge Circuit Voltage Drop: ≤0.26V
• Discharge Circuit Voltage Drop: ≤0.15V
• Operating Temperature: -31°F to 113°F

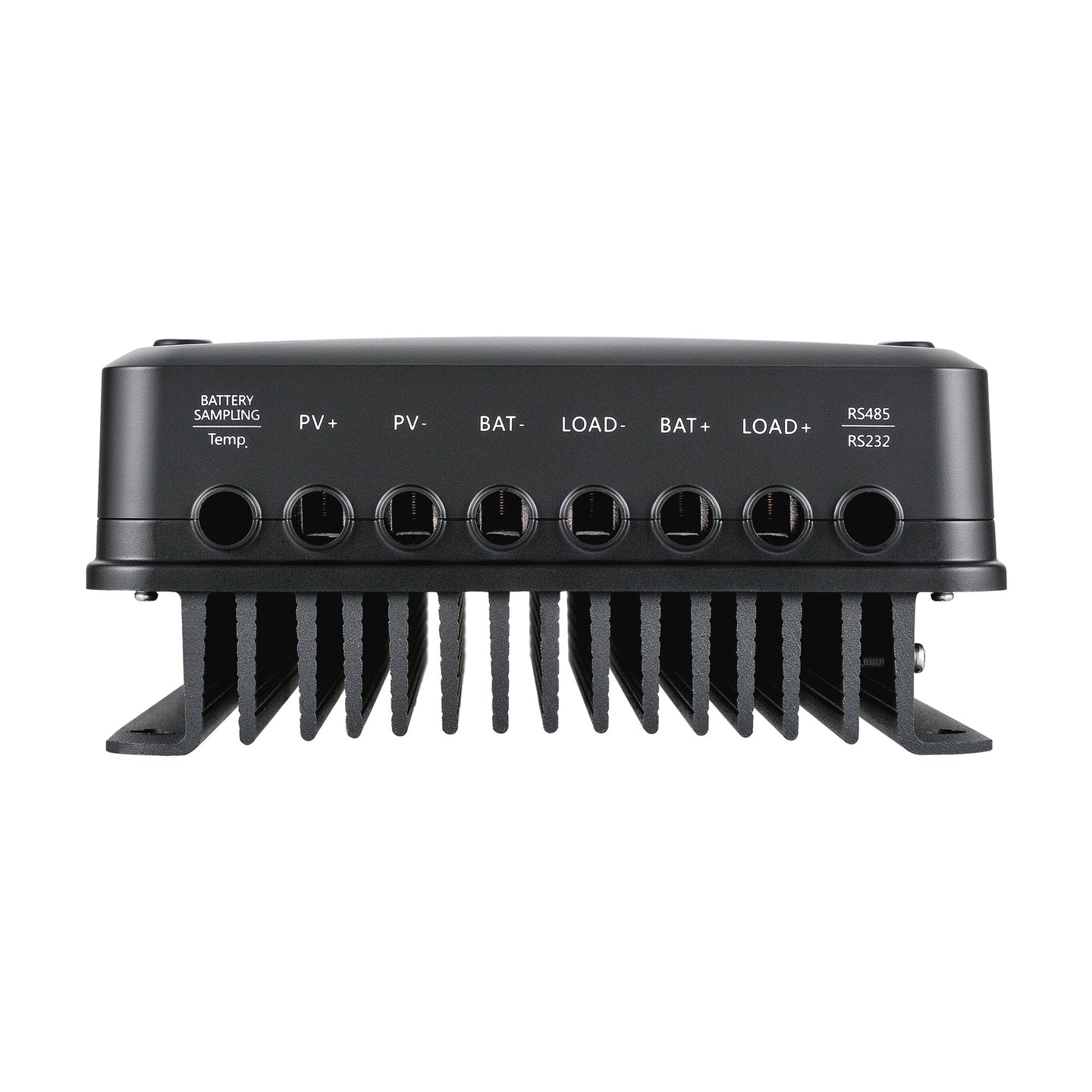

• Max Terminal Size: <11mm
• Overall Dimensions: 11.2 x 8.1 x 3.7 in
• Net Weight: 7.94 lb
