Product Description

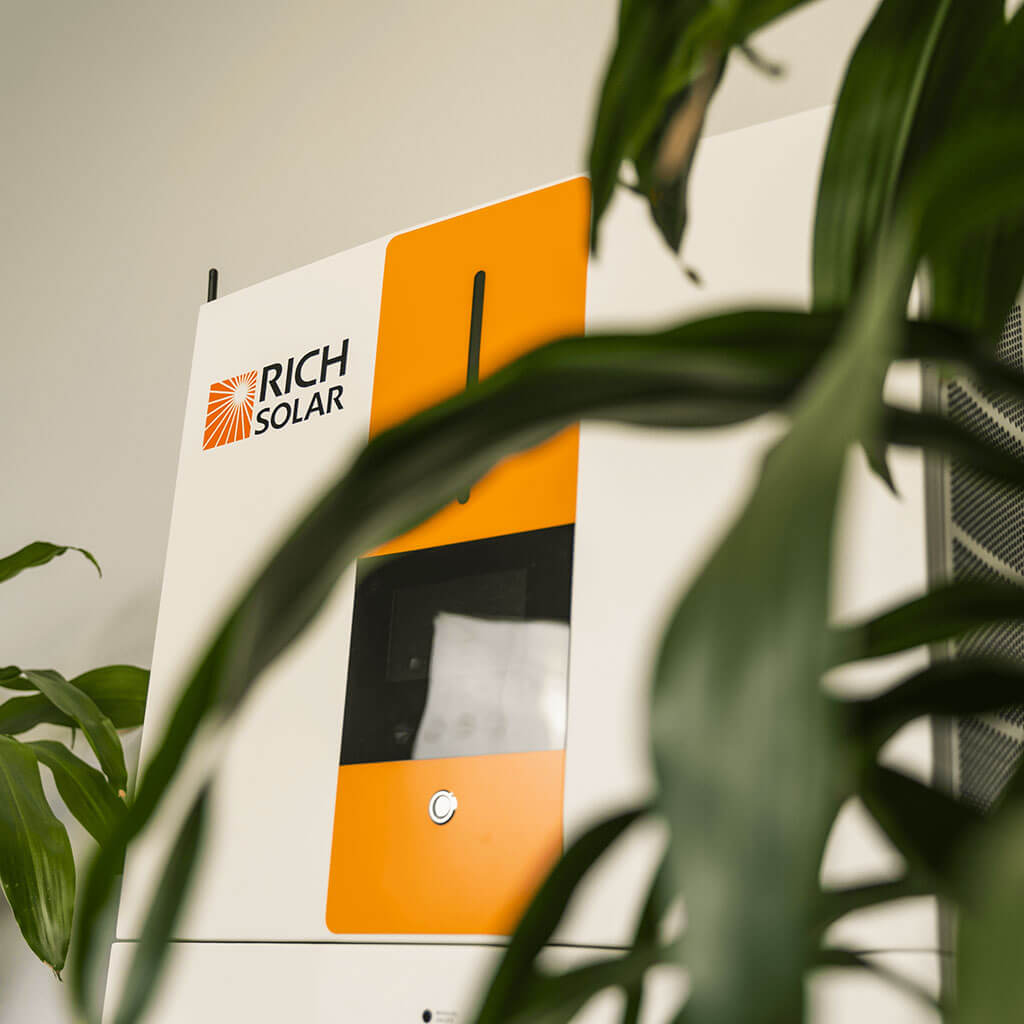

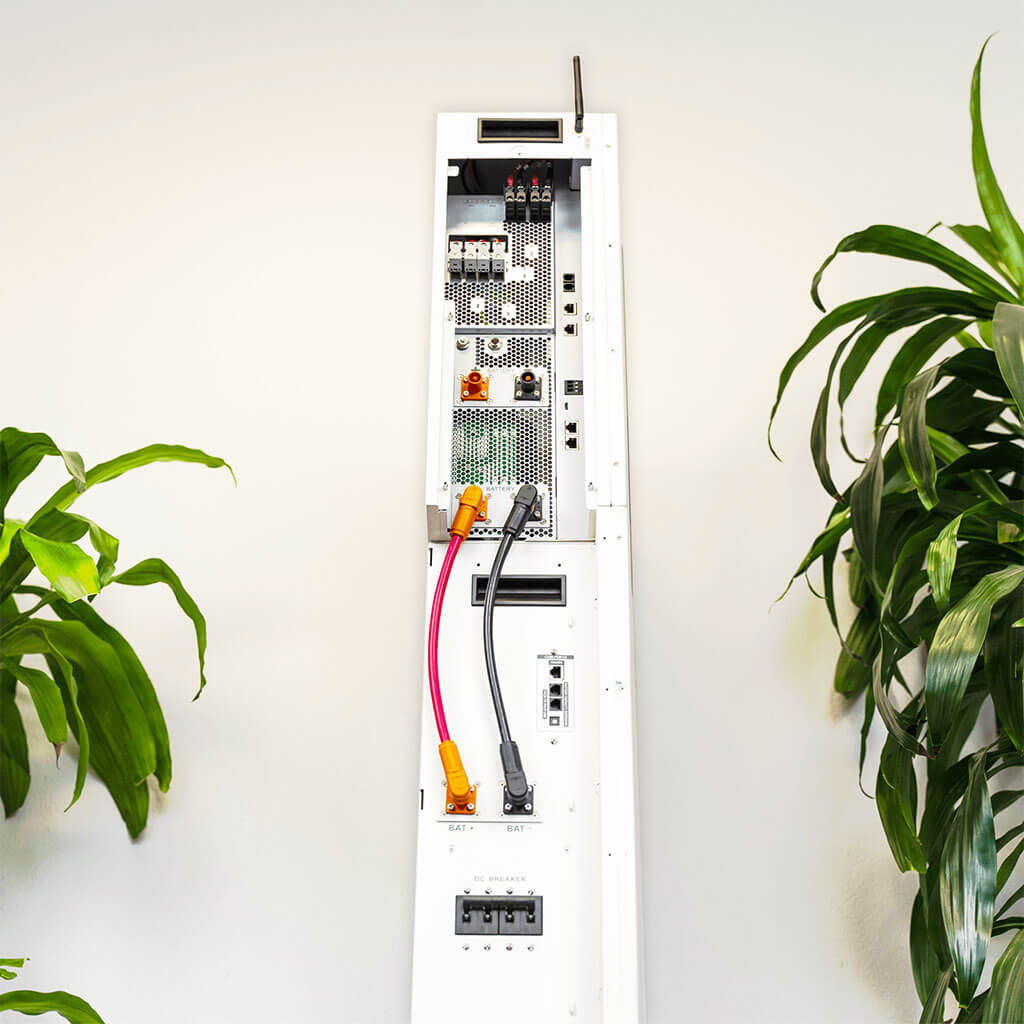

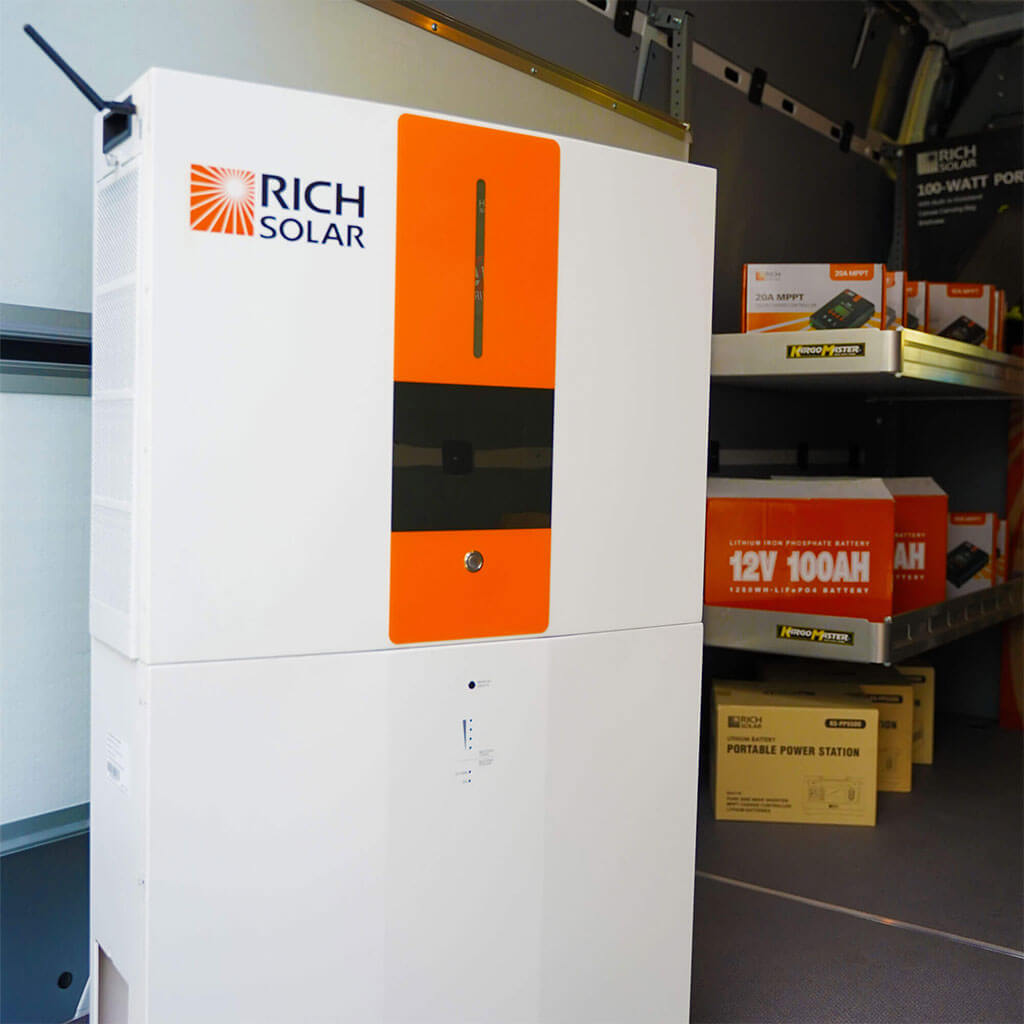

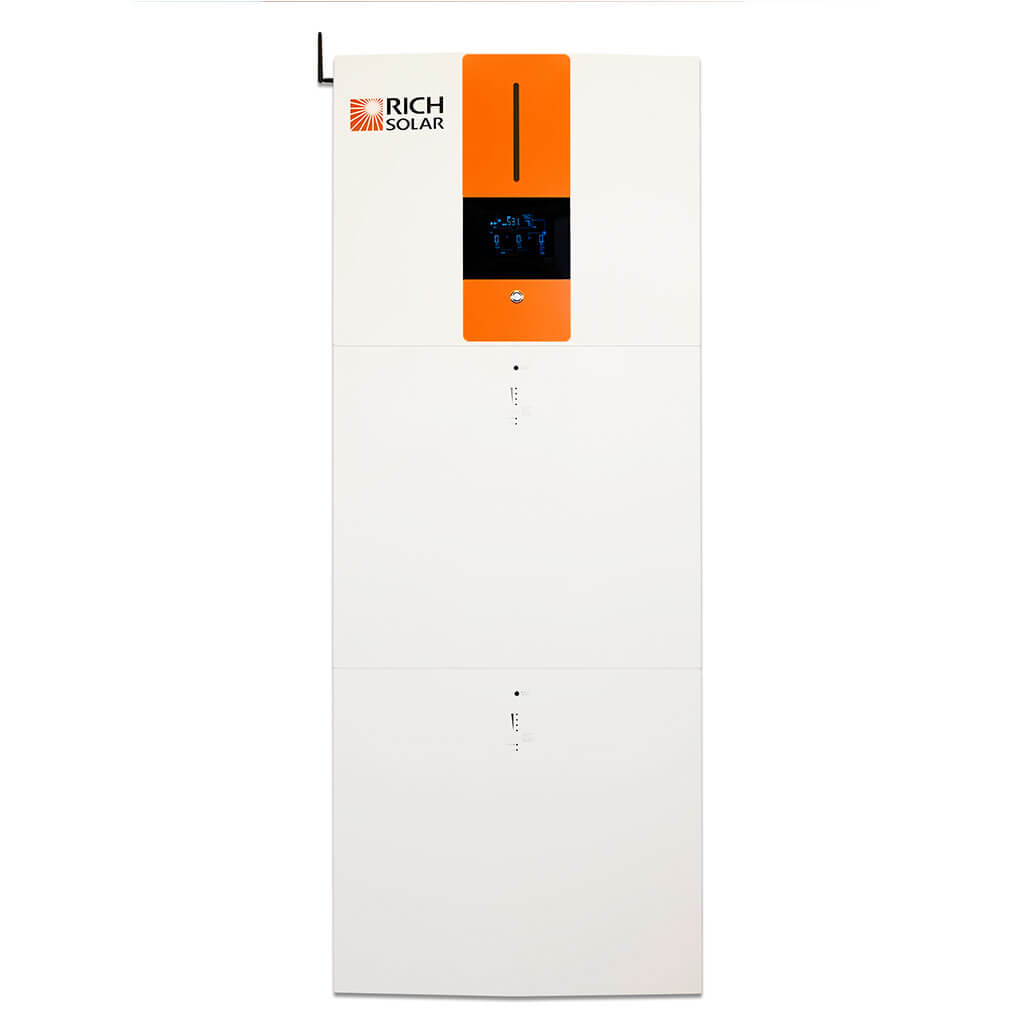

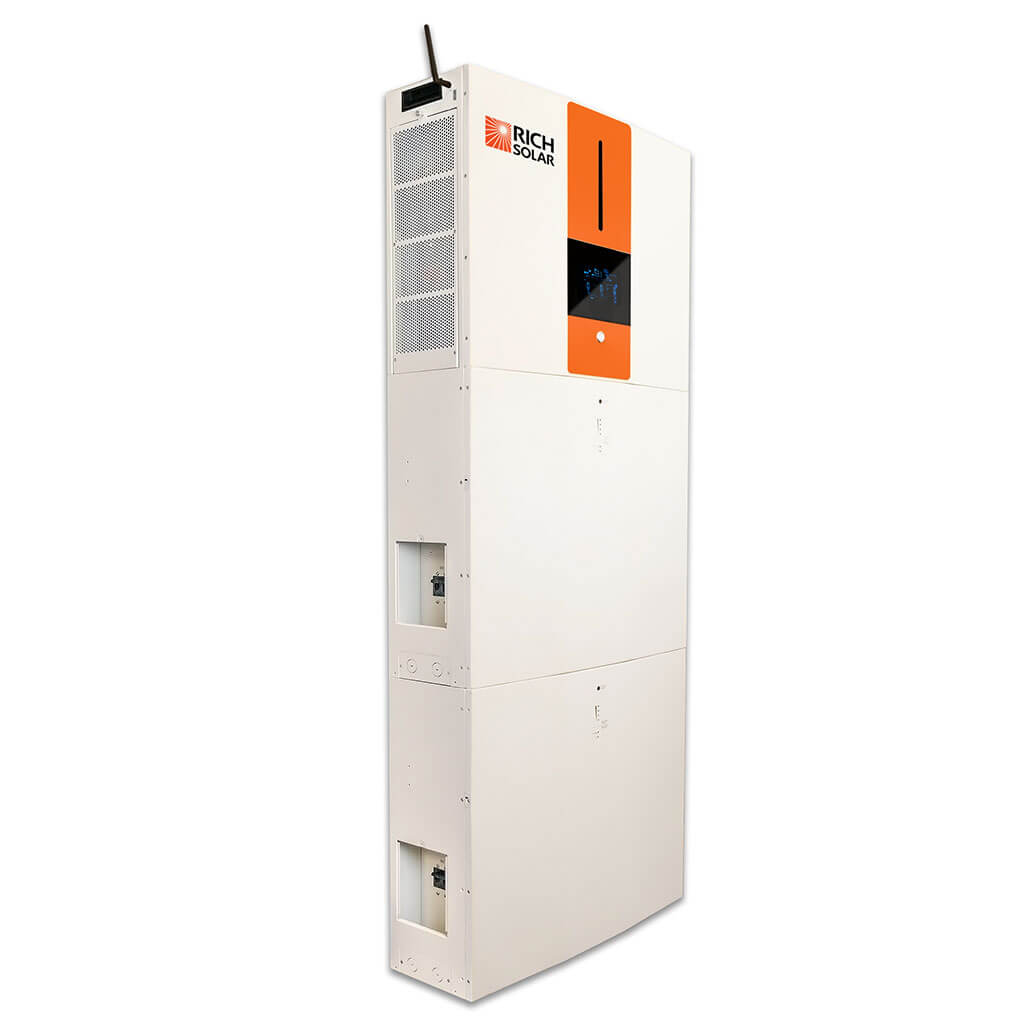

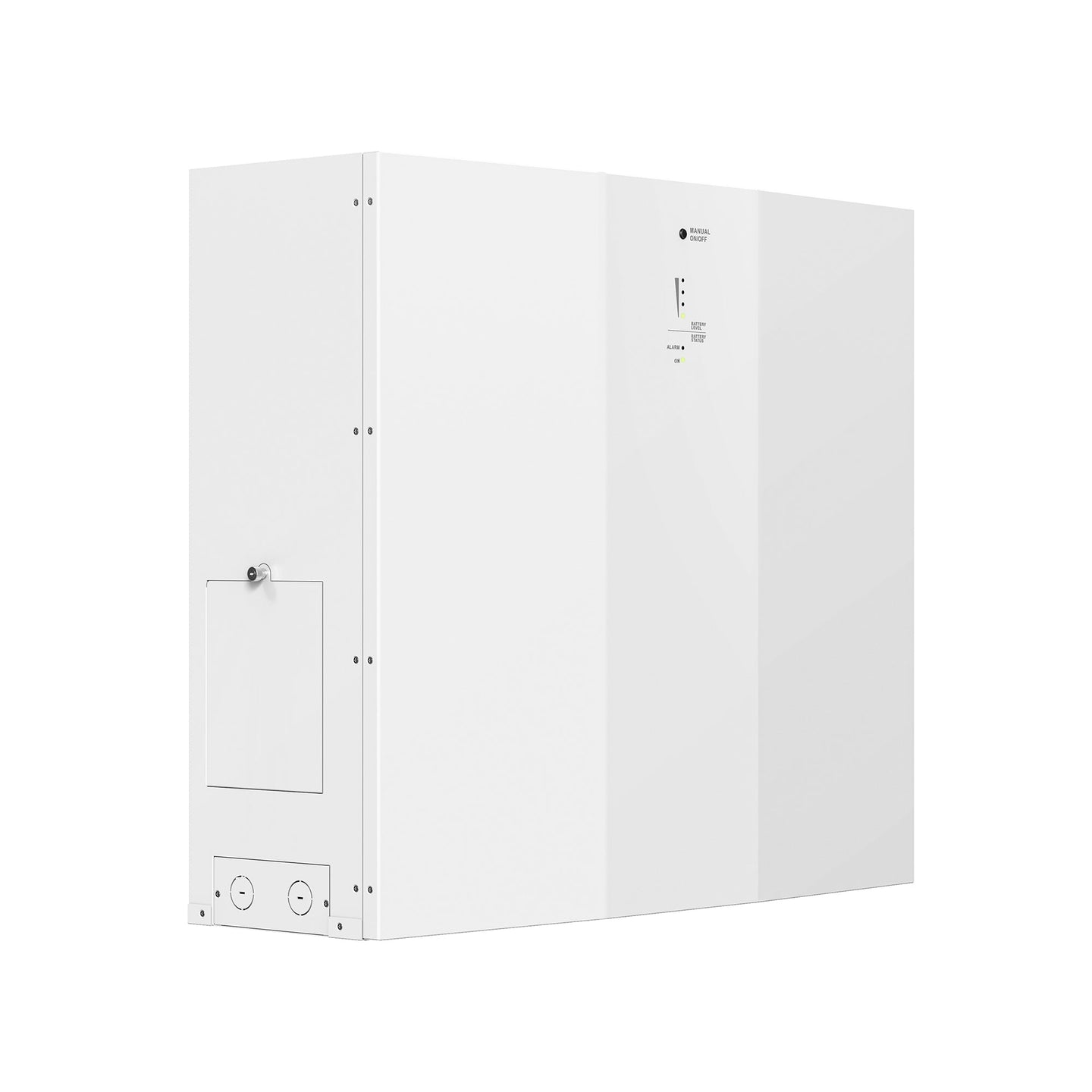

Introducing the RICH SOLAR
All-in-One Energy Storage System

The RICH SOLAR All-in-One Energy Storage System is a powerful and efficient solar energy system designed to provide clean and reliable electricity. This innovative system integrates all the components required for solar power generation into a single, compact unit, including an inverter, batteries, and a charge controller.


All in One Energy Storage System Features

Power & Performance Features

  • Pure sine wave output
  • Off-grid application
  • Programmable supply priority for PV, Battery, or Grid
  • User-adjustable battery charging current
  • Battery-independent design

Smart Technology & Connectivity

  • Multiple communication options: USB, RS232, SNMP, Modbus, GPRS, and Wi-Fi

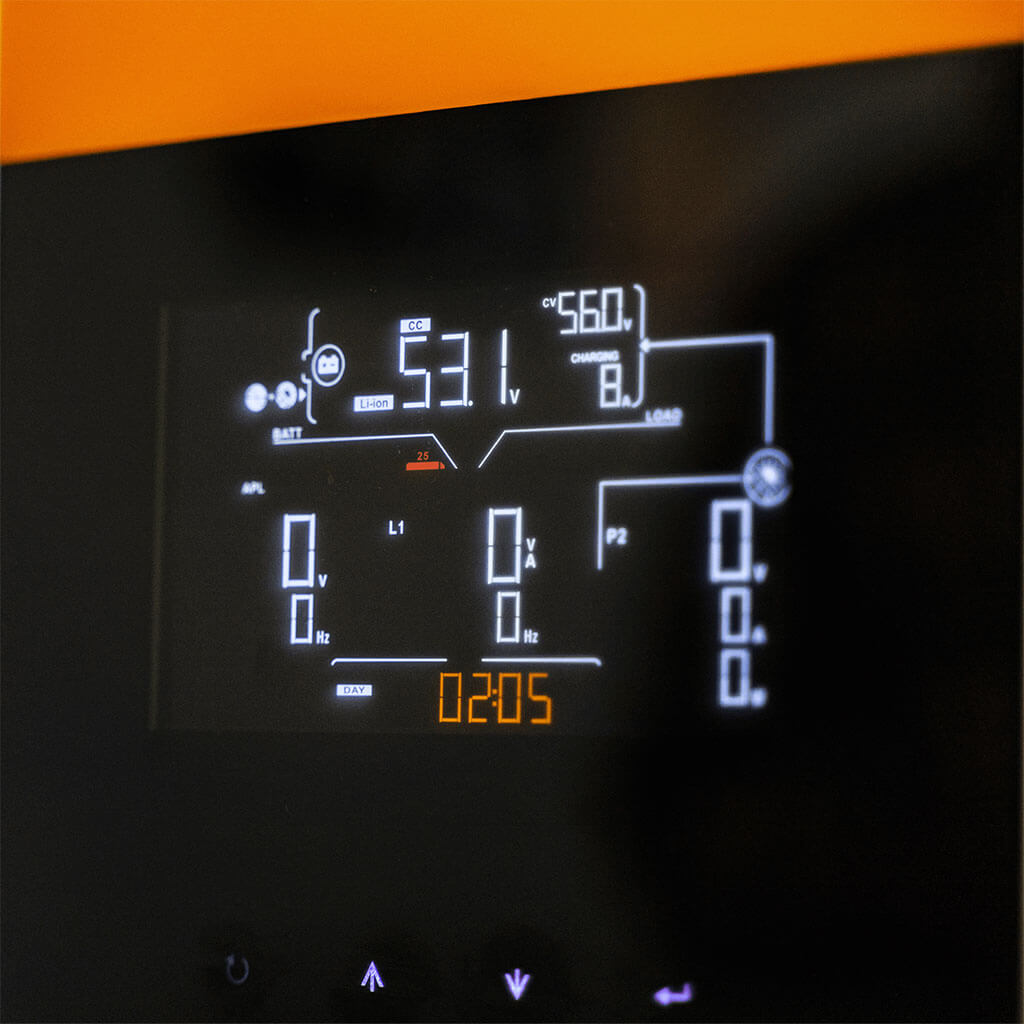

  • Monitoring app (Android & iOS) for real-time status and control
  • Built-in dual MPPT trackers and AC/solar charger up to 120A
  • Compatible with utility and generator
  • Scalable Li-Ion battery expansion
All in One Energy Storage System Features
The compact design of an All-in-One Energy Storage System makes it an attractive option for those with limited space, or for those who want a more discreet installation. It can also be easier to install and maintain compared to larger energy storage systems, which may require more extensive wiring and infrastructure.

Specifications

Battery Info

  • Model: RS-A10
  • Maximum PV Input Power: 8000W
  • Rated Output Power: 6500W
  • Maximum Charging Power: 6500W

PV Input (DC)

  • MPPT Range @ Operating Voltage: 90 ~ 230 VDC
  • Maximum PV Array Open Circuit Voltage: 250 VDC
  • Maximum Solar Charge Current: 120A
  • Number of MPP Trackers / Maximum Input Current: 2 / 2 x 18A

AC Input

  • Acceptable Input Voltage Range:
    90–140 VAC (For Computers)
    80–140 VAC (For Home Appliances)
  • Maximum AC Input Current: 60A

Battery Mode Output

  • Nominal Output Voltage: 120 VAC
  • Maximum Conversion Efficiency (DC/AC): 93%

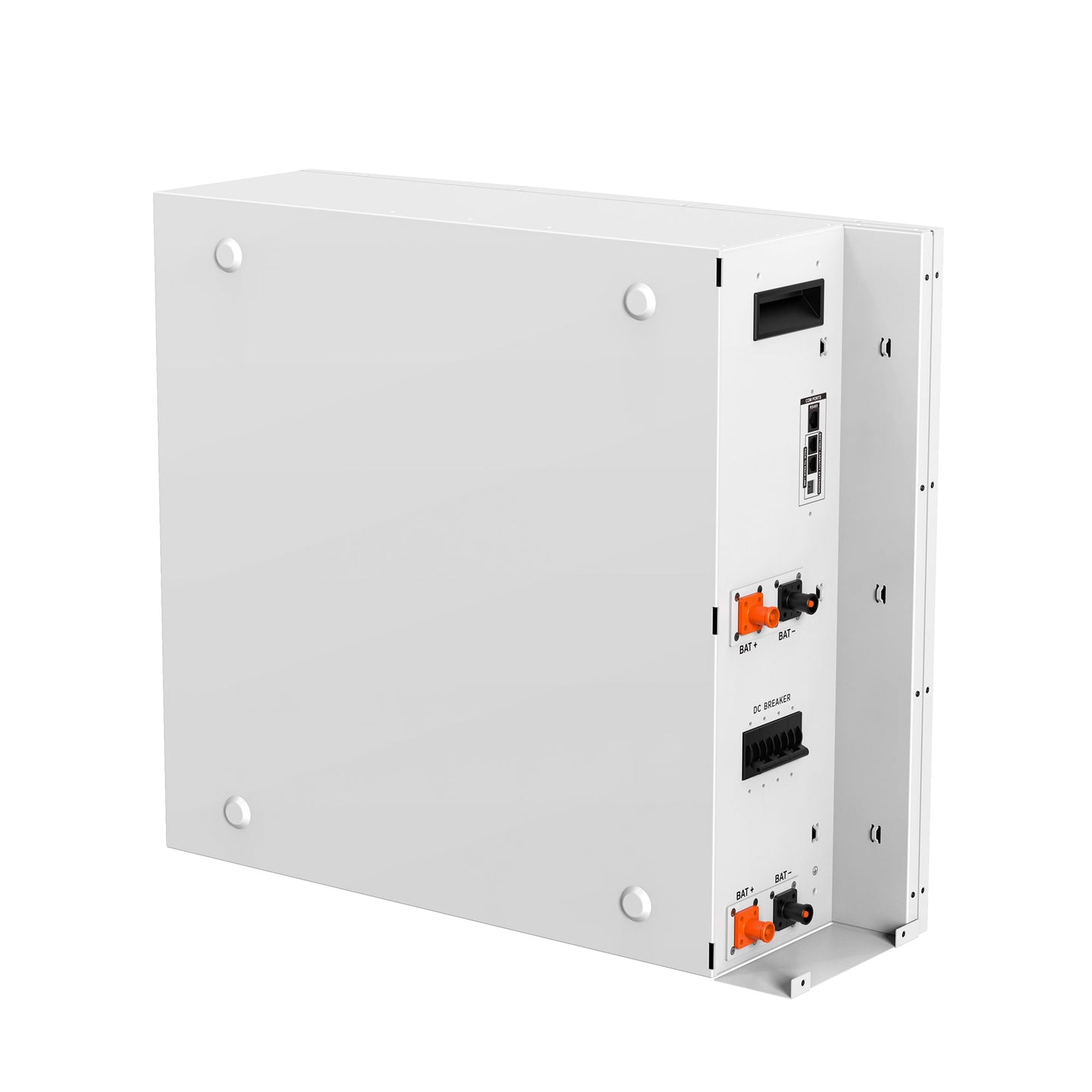

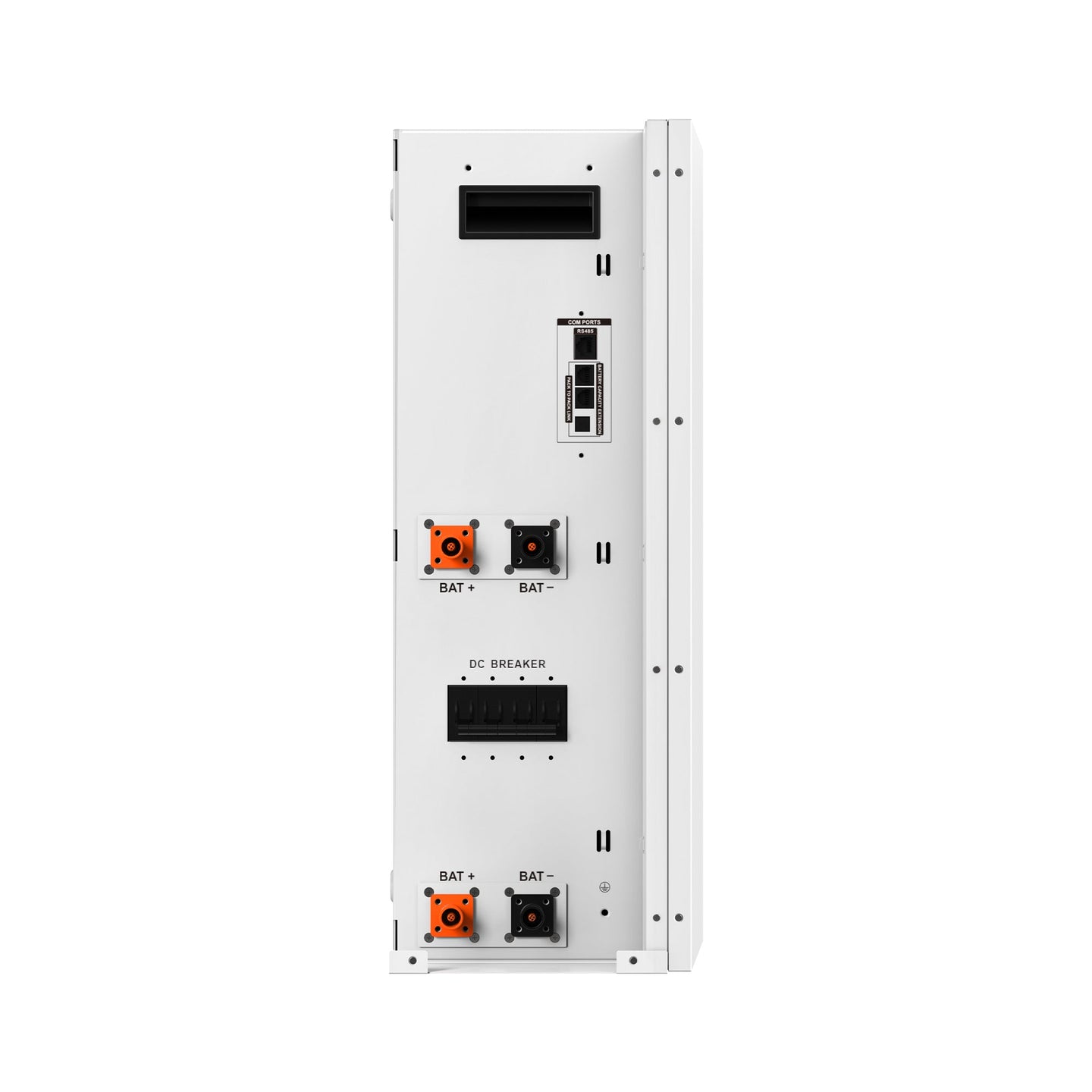

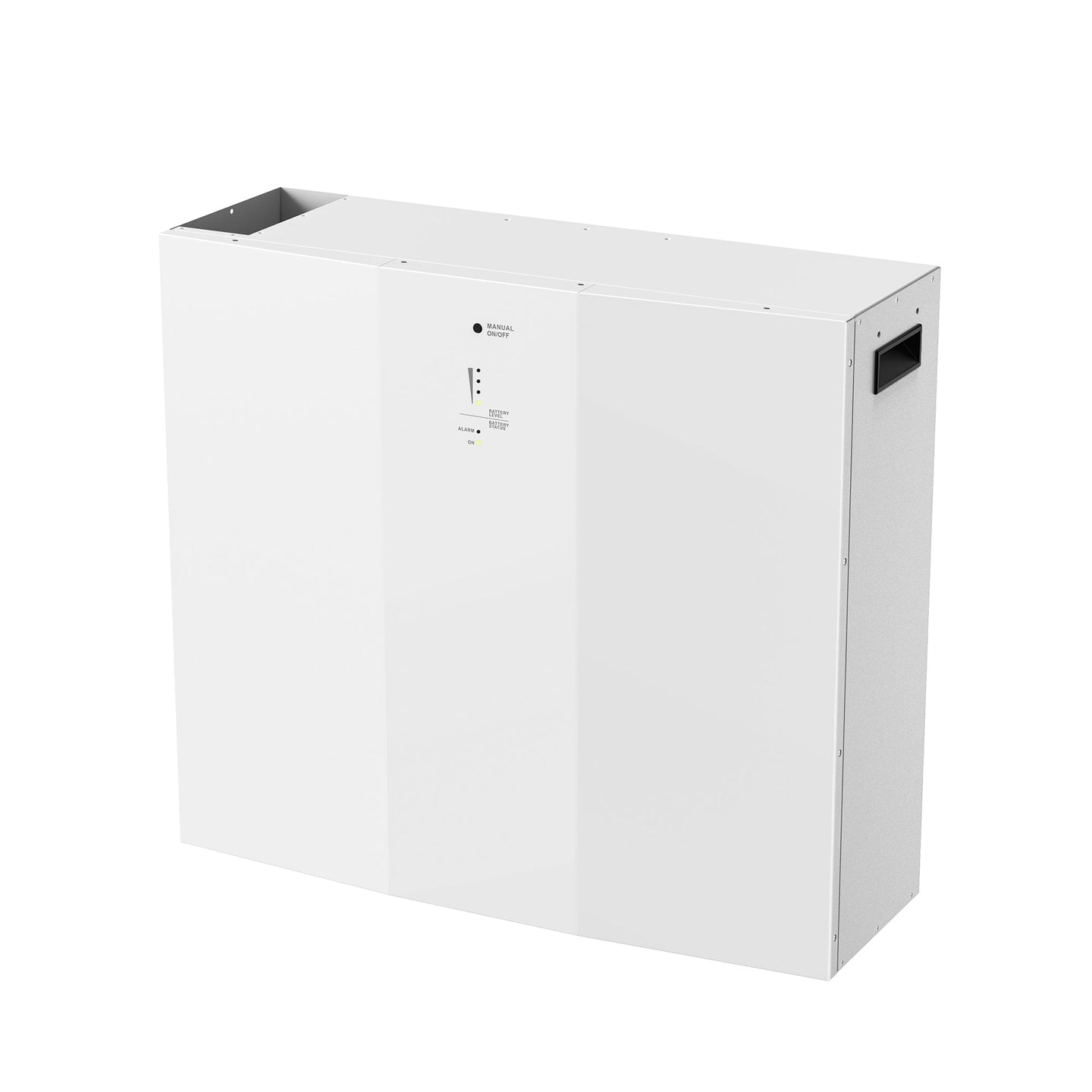

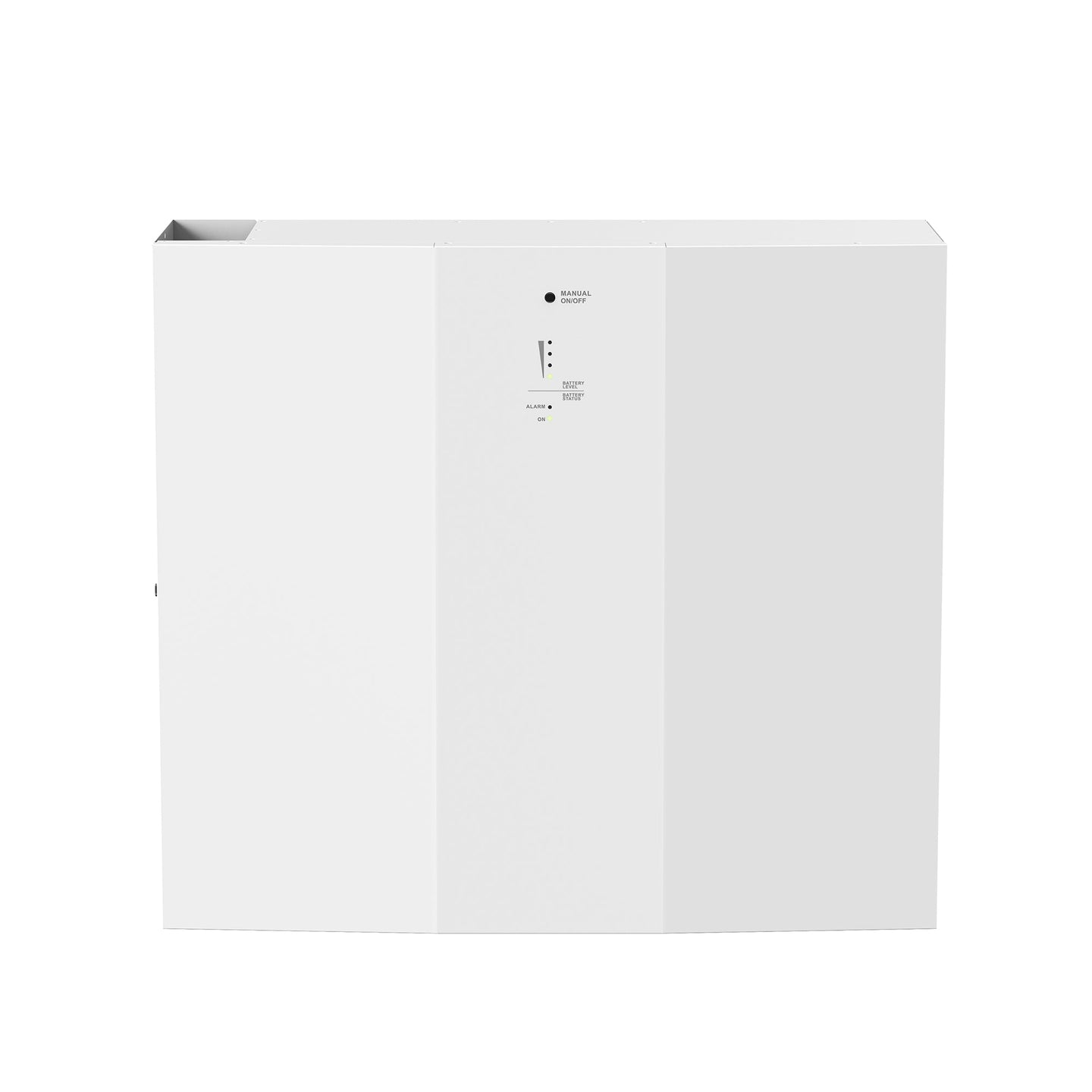

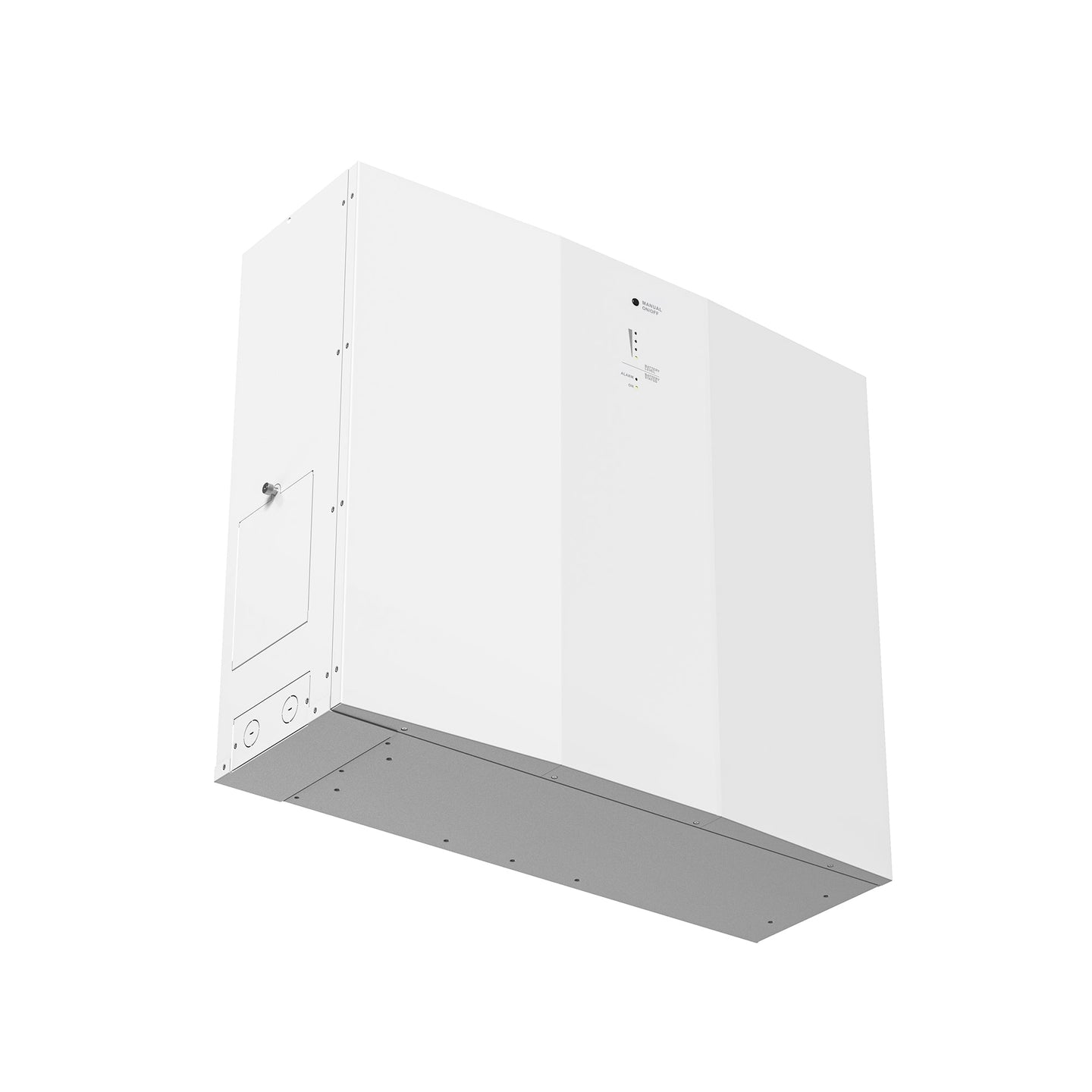

Battery

  • Nominal DC Voltage: 48 VDC
  • Maximum Charging Current: 120A
  • Dimension (D × W × H): 8.4" × 24.4" × 19.7"
  • Net Weight: 99 lb
  • Capacity: 5120Wh
  • Nominal Voltage: 51.2VDC
  • Full Charge Voltage (FC): 56V
  • Full Discharge Voltage (FD): 42V
  • Typical Capacity: 100Ah
  • Max Continuous Discharging Current: 120A
  • Max Discharging Current: 192A at 1 min
  • Protection: BMS, Breaker
  • Float Charge Voltage: 52.5V
  • Charge Current: 20A (0.2C)
  • Maximum Charge Current: 50A (0.5C)
  • Standard Charge Method: 0.2C CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge current declines to <0.05C
  • Inner Resistance: ≤20mΩ

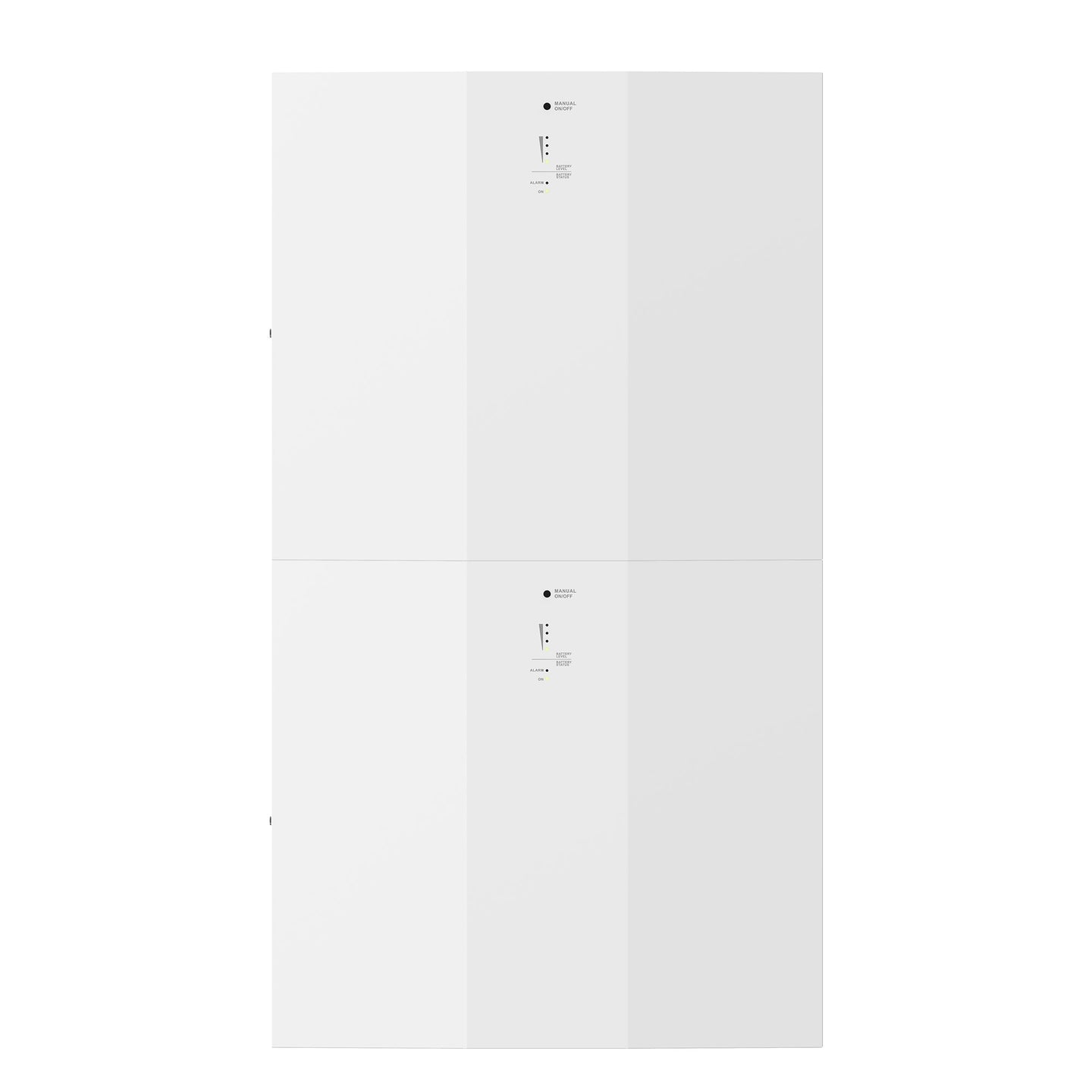

All In One System Physical

  • System Dimension (D × W × H): 19.7" × 26" × 49.2"
  • Net Weight: 287 lb

Standard

  • Compliance Safety: IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3, UL 1741, CSA C22.2 No.107.1-16, FCC PART 15B
