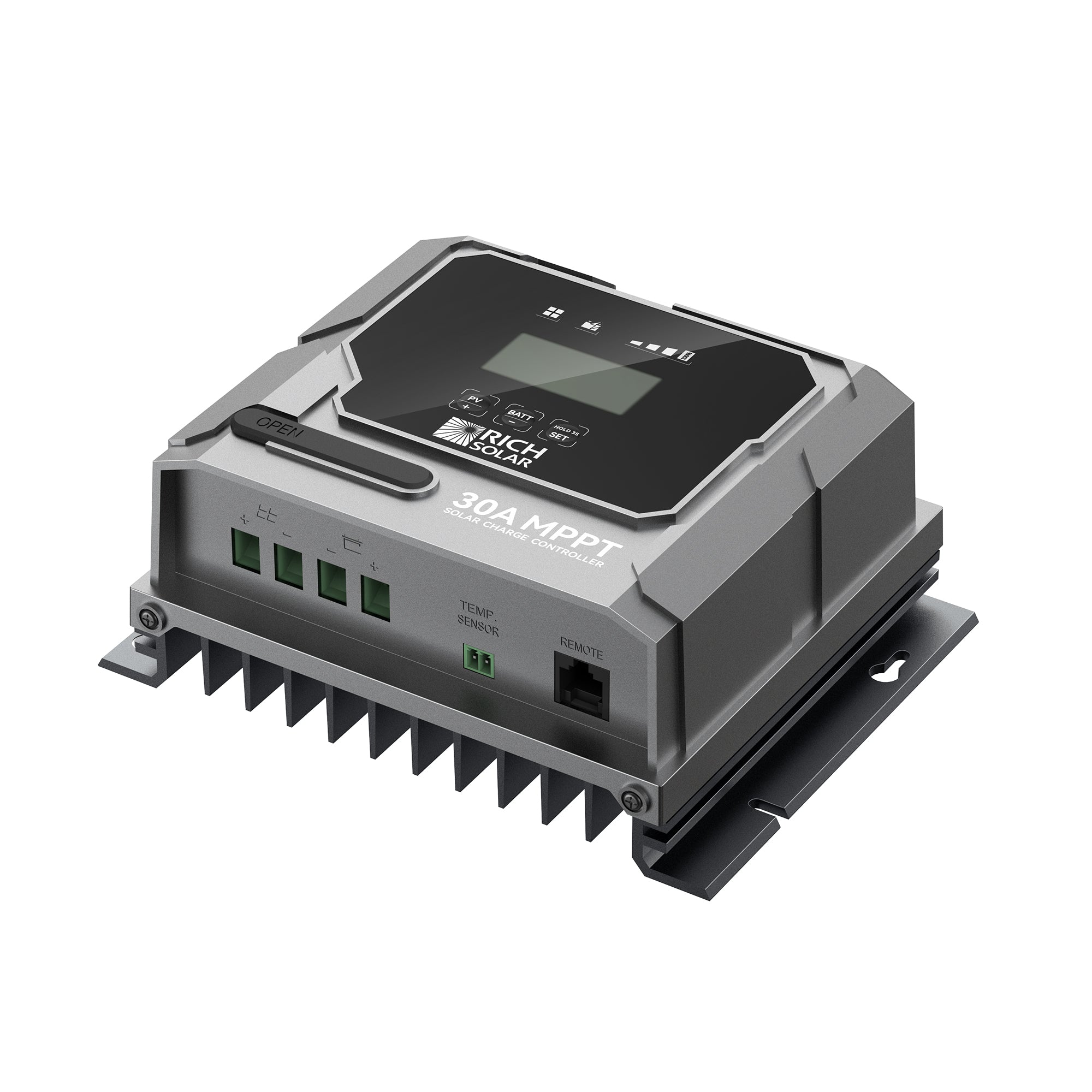

BRAVO 30 | 30 Amp MPPT Solar Charge Controller | Premium 30A 12V/24V MPPT Solar Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | Awarded #1 Solar Controller 2025

Features

1. Advanced MPPT Technology

• Advanced MPPT algorithm with up to 99.5% tracking efficiency
• 98% conversion efficiency for maximum solar energy utilization
• Stable operation under low-light or partial shading conditions

2. Flexible Battery Compatibility

• Auto-detects 12V/24V systems for seamless integration
• Supports 8 + 1 battery types, including GEL, AGM, WET, CRYSTAL, CALCIUM, LiFePO₄, LTO, LCO, and Custom
• Multi-stage charging algorithm with customizable parameters helps extend battery lifespan

3. Advanced Protection System

• Multiple safety protections: Over-voltage, reverse polarity, short-circuit, and over-temperature
• Weather-resistant build with IP43-rated PCBA and IP22 connectors
• Certified to ETL, FCC, CE, ROHS

4. Intelligent Monitoring System

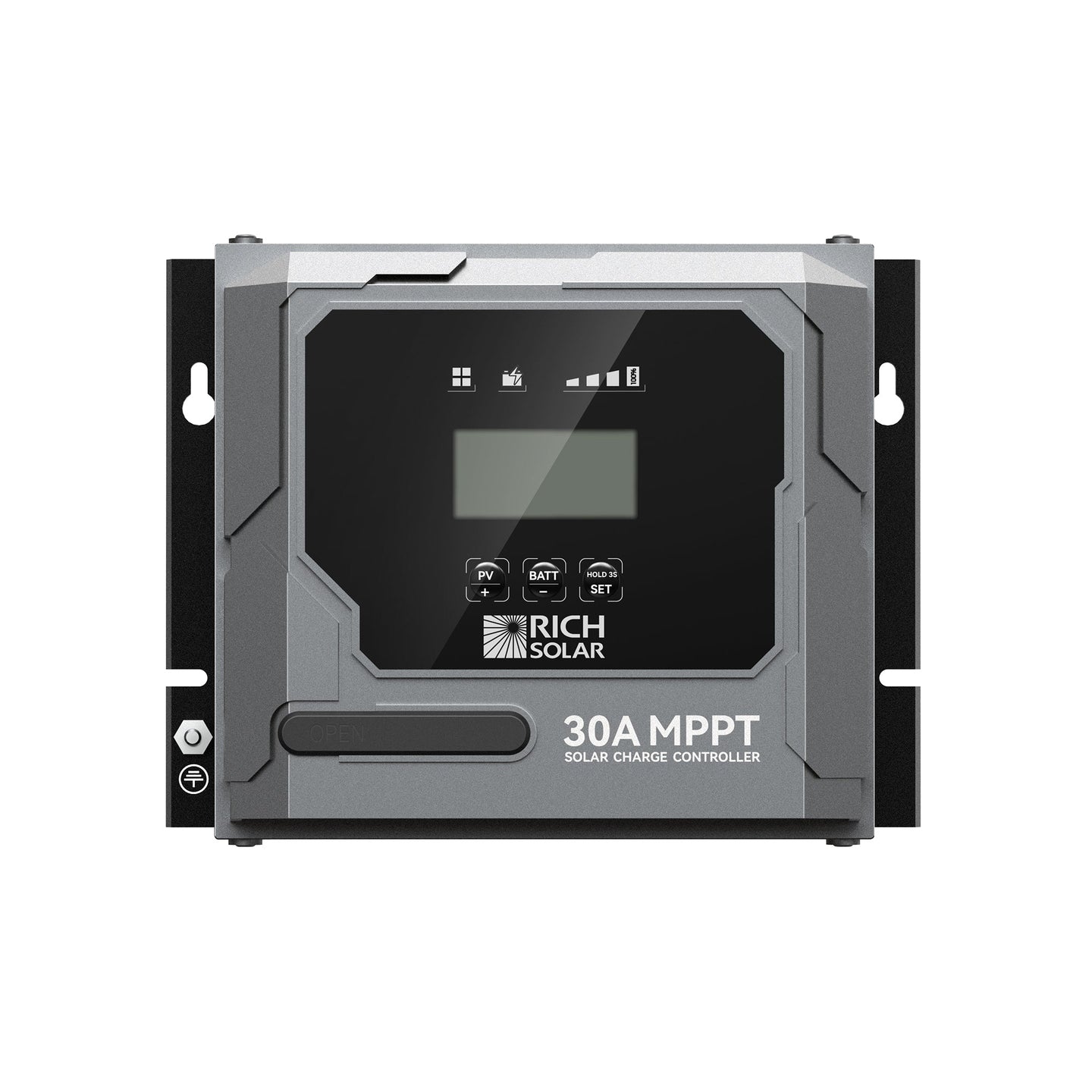

• LCD + LED display: Real-time solar input, battery status, and customizable parameters
• Built-in Bluetooth for App monitoring (Rich Solar App)
• Optional remote meter and temperature sensor for enhanced control

Specifications

• Maximum Solar Input Current: 30A
• Maximum Charging Current: 30A
• Recommended Solar Power: 500W (12V) / 1000W (24V)
• Nominal System Voltage: 12V/24V Auto-Detect
• Solar Input Voltage Range: 8V-100V
• MPPT Voltage Range: 15V-72V
• Maximum Conversion Efficiency: 98%
• Maximum MPPT Tracking Efficiency: 99.5%
• Battery Compatibility: GEL, AGM, WET. CRYSTAL, CALCIUM, LiFePO., LTO, LCO, Custom
• Connectivity: Built-in Bluetooth (Optional Remote Meter & Temperature Sensor)
• Protection Rating: IP43 PCBA, IP22 Connection
• Net Weight: 1.8 lb
• Dimensions (LxWxH): 7.0 x 5.5 x 2.9 in
