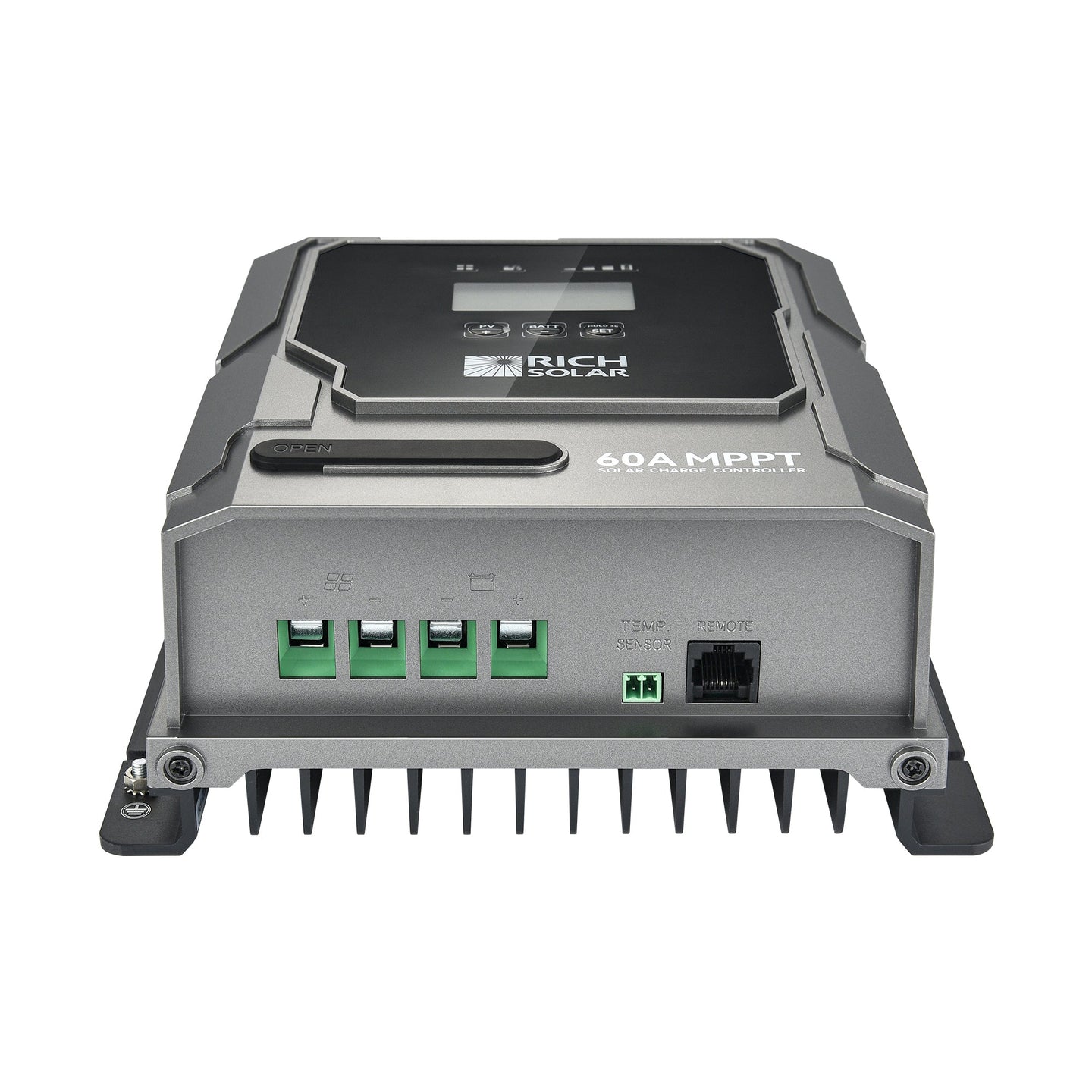

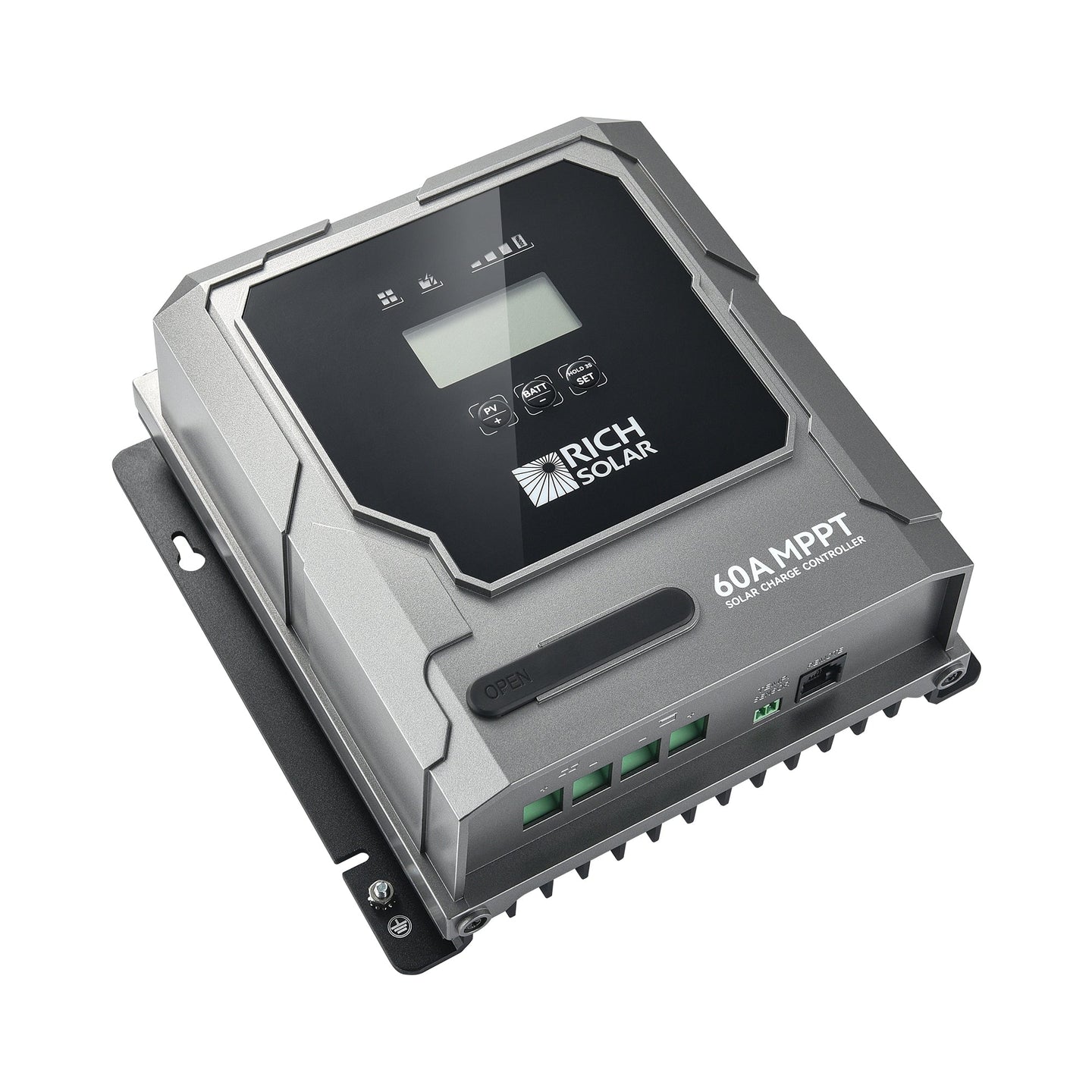

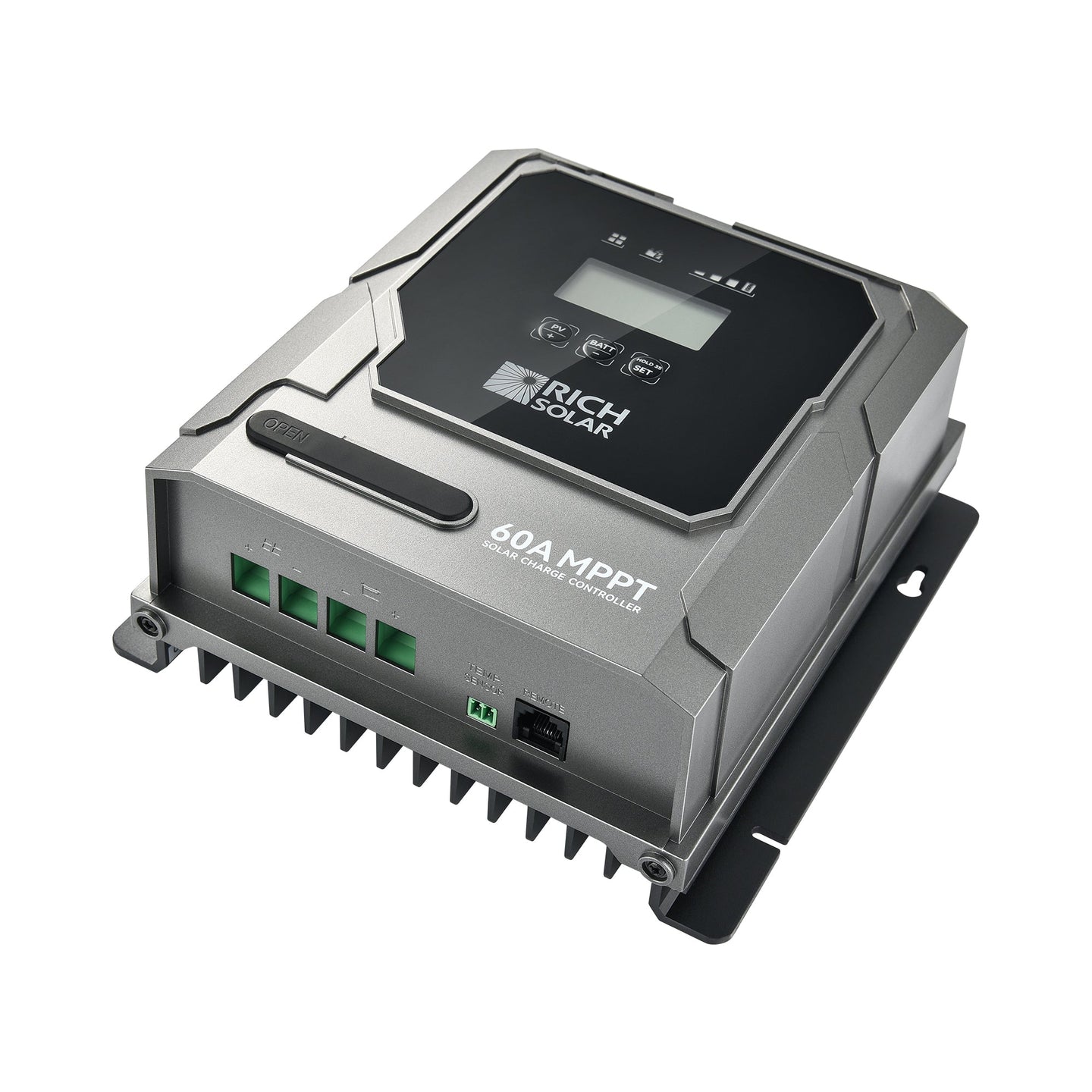

BRAVO 60 | 60A MPPT Solar Charge Controller | Premier 60A 12V/24V MPPT Solar Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | Awarded #1 Solar Controller 2025

Features

• True MPPT
• Tracking Efficiency Above 99.5%
• Charge Conversion Efficiency as High as 98%
• 12V/24V DC System Self-Adaptation
• Reverse Discharge Protection
• Targeted for Accuracy
• Overvoltage Protection
• Common Negative Connection
• Charging Data Storage

• External Battery Temp Sensor-Optional
• Conformal Coating for Inside Board
• External Digital Remote Display-Optional

• In-house Design and Manufacture
• Extensive Internal Electronics, In-Circuit Protections, and Safety Protections
• Targeted for Lead Acid Batteries: Gel, AGM, WET, CRYSTAL, CALCIUM Batteries Type Selections
• Targeted for Lithium Batteries: LiFePO4, LTO (Lithium Titanium Oxide), LCO Batteries Type Selections

Specifications

• System Nominal Voltage: 12/24V Auto
• Max PV Open Circuit Voltage: 100V DC
• Charging Technology: MPPT
• Max PV Charging Current: 60A
• Max. Recommended PV Input Power: 900 Watt (12V) / 1800 Watt (24V)
• Charge Conversion Efficiency: ≤98%
• MPPT Tracking Efficiency: >99.5%
• Battery Type Preset: Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO
• Housing Case Color: Black / Grey
• IP Grade: IP43 for Inside PCBA, IP22 for Connection Area
• Net Weight: 1.90kg / 4.18lb
• Dimensions (L×W×H): 201×195×85mm (7.9×7.7×3.3in)
