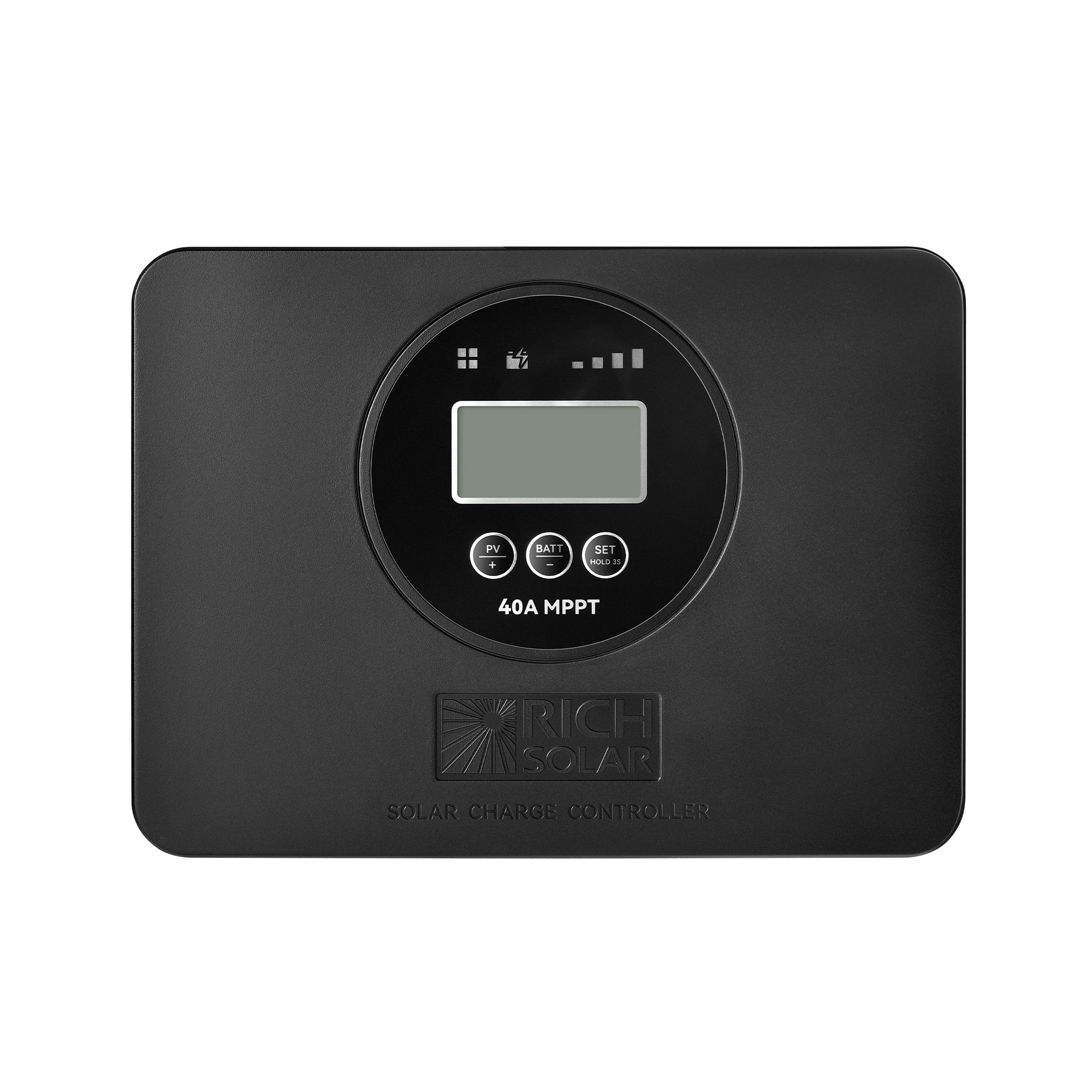

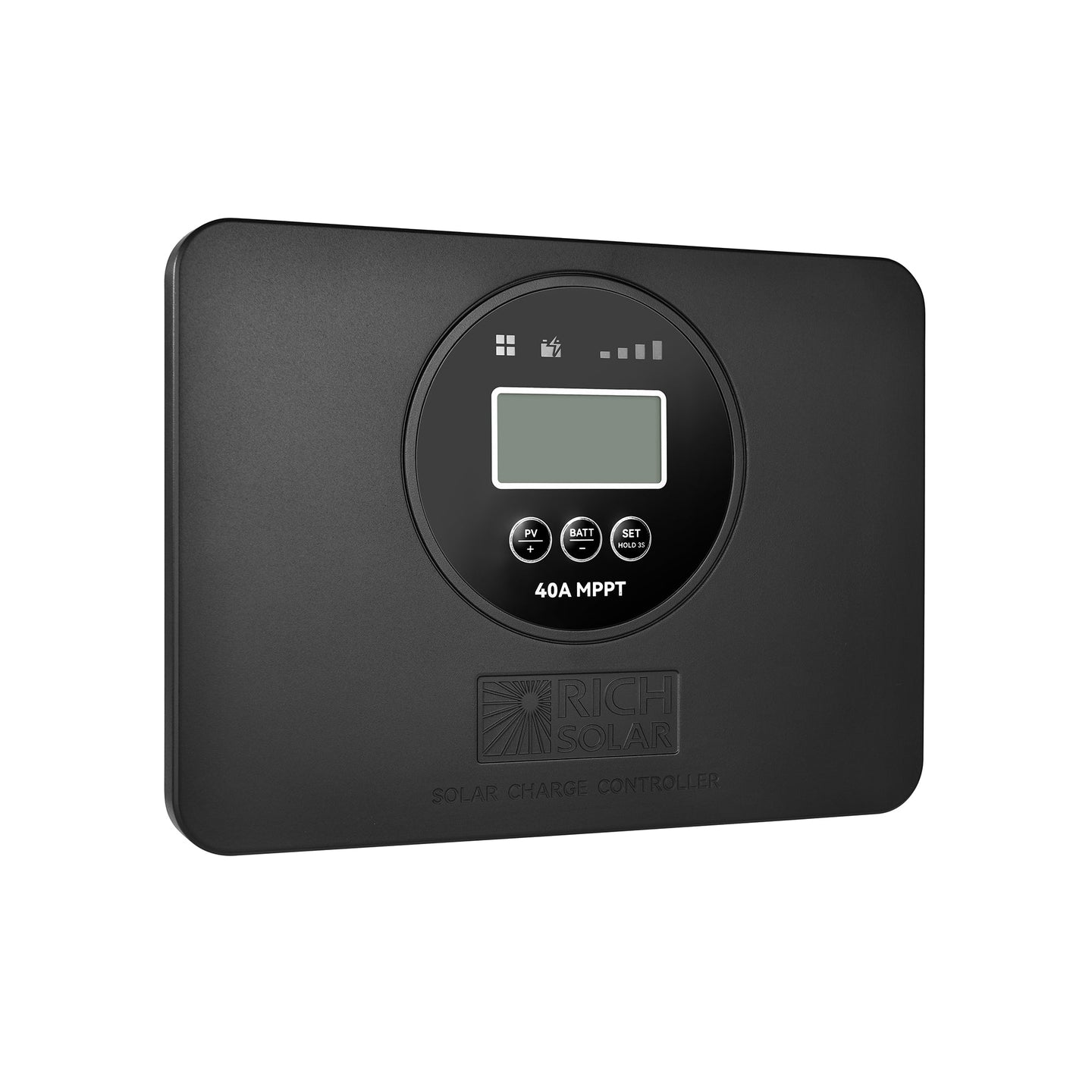

BRAVO PRO 40 | Premium 40A 12V/24V MPPT Flush Mount Solar Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | With Bluetooth

Features

High-Efficiency MPPT Charging

• 99.5% MPPT Tracking Efficiency – Maximizes available solar energy harvest
• 98% Conversion Efficiency – Reduces power loss for higher system efficiency

Intelligent System Compatibility

• Auto 12V / 24V Detection – Simplifies installation and setup
• Wide Battery Compatibility – Supports GEL, AGM, WET, CALCIUM, LiFePO₄, LTO, and LCO

Smart Monitoring & App Control

• LCD Display – Real-time system status at a glance
• Bluetooth + App Support – Remote monitoring and parameter adjustment via smartphone

Reliable Built-In Protection & Certifications

• Multi-Level Safety Protection – Protects against over-voltage, reverse polarity, short circuits, and overheating
• Certified Safety & Compliance – ETL, CE, FCC, RoHS

Specifications

• System Nominal Voltage: 12V/24V Auto
• Maximum Solar Input Current: 40A
• Maximum Charging Current: 40A
• Recommended Solar Input Power: 600W(12V)/1200W(24V)
• Solar Input Voltage Range: 8-100V
• Standby Current: 10mA
• Charging Technology: MPPT
• MPPT Voltage Tracking Range: 15-72VDC
• MPPT Efficiency: 99.5%
• Conversion Efficiency: 98%
• Battery Compatibility: GEL / AGM / WET / LFP / LTO / LCO / Crystal / Calcium / Customizable Battery
• IP Grade: IP43
• Operating Temperature: -13℉ ~ 122℉
• Bluetooth: Yes
• Options: External Battery Temperature Sensor; External Digital Remote Display
• Dimensions: 8.3 × 6.1 × 2.2 in
• Weight: 1.8 lb
• Certifications: ETL, CE, FCC, RoHS
