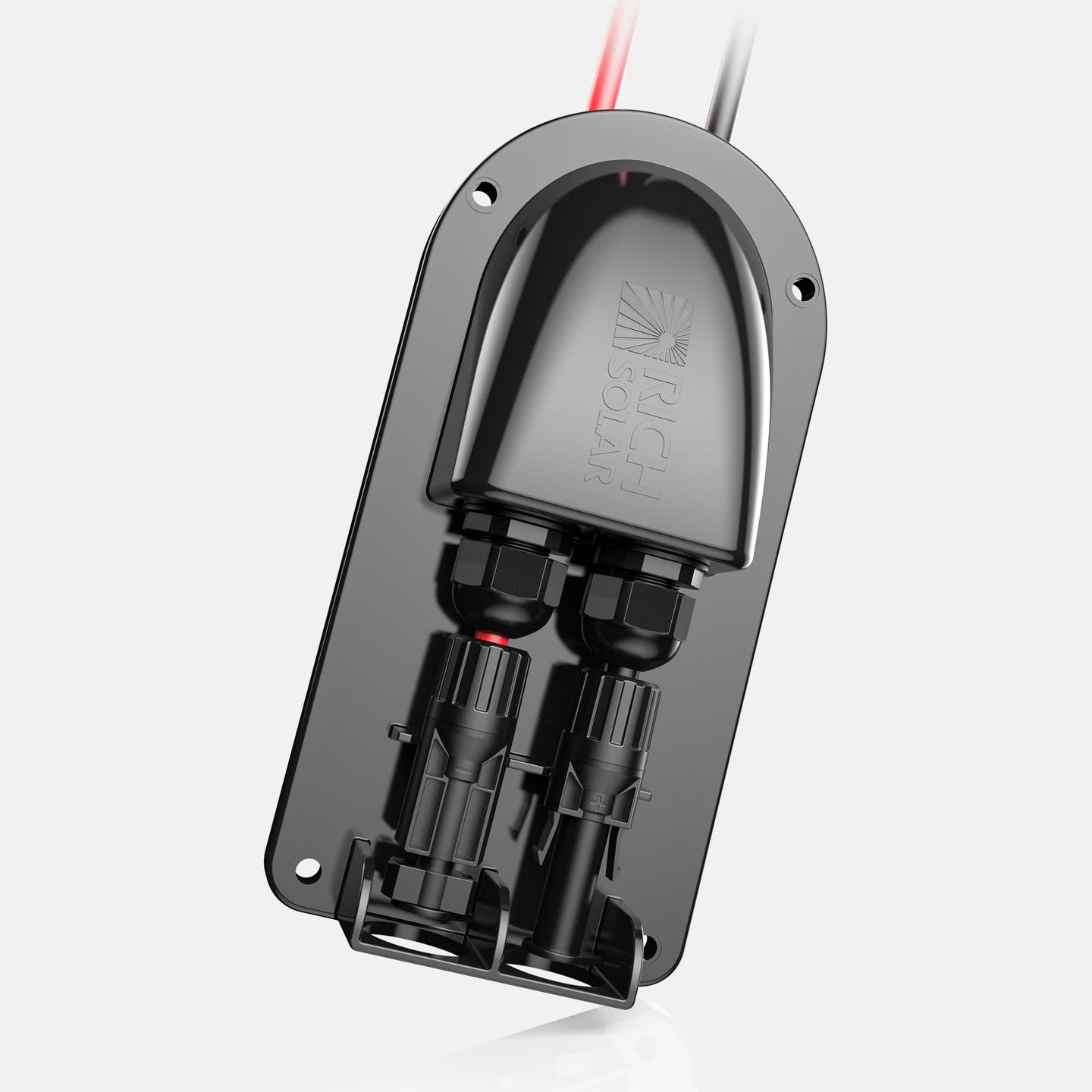

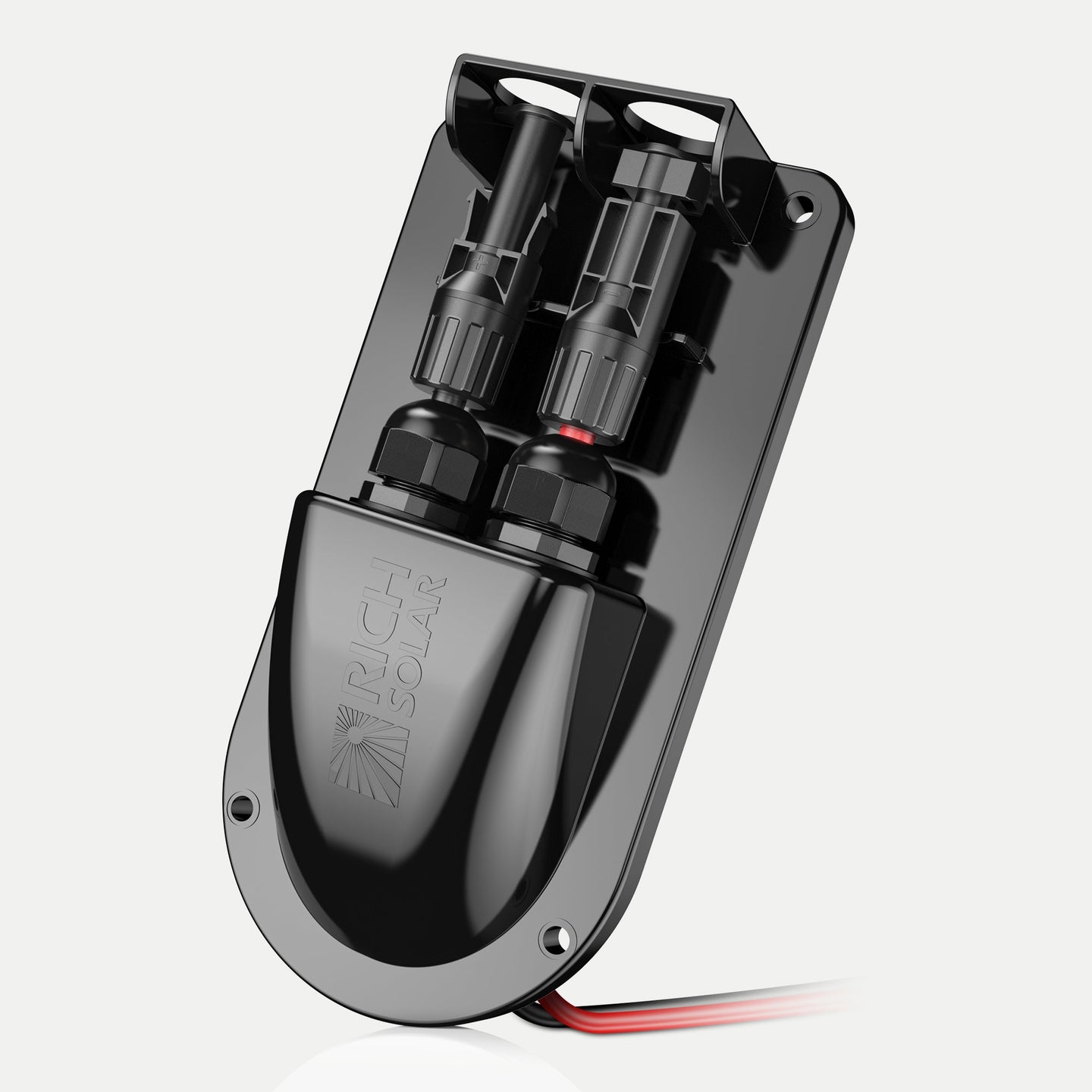

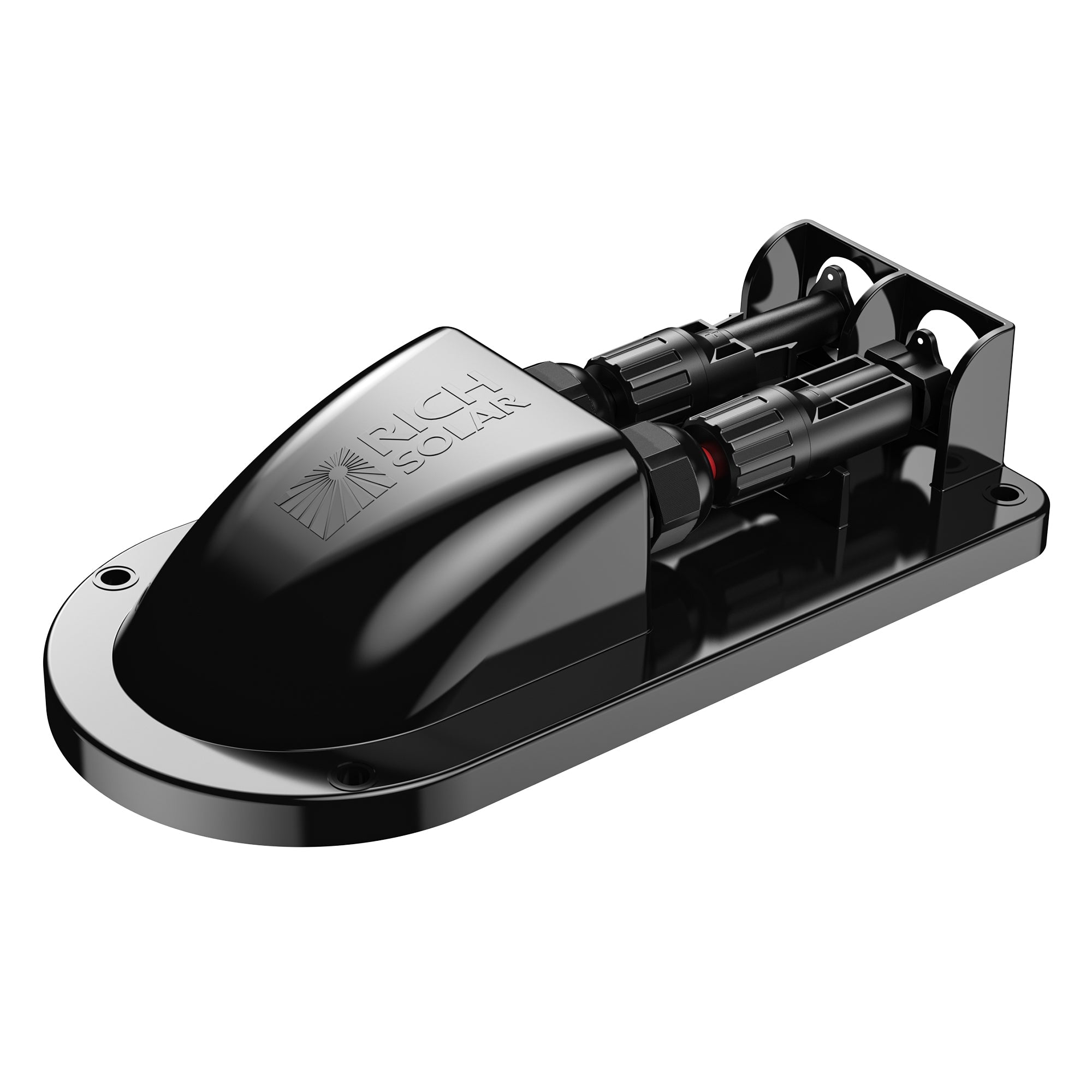

Cable Entry Plate | IP68 Waterproof Polypropylene Housing with UL 10AWG Wires and Solar Connectors | Easy to Install

Features

Durable & Weatherproof

• Flame-retardant PP housing for long-lasting outdoor use
• Operates smoothly in extreme temps: -40°F to 185°F
• Perfect for RVs, boats, cabins, and off-grid solar systems

High Current Capacity

• Supports 42A max / 30A continuous load
• Pre-assembled UL1015, 10AWG tin-plated copper wires for excellent conductivity
• PVC insulation with VW-1 fire rating for added safety

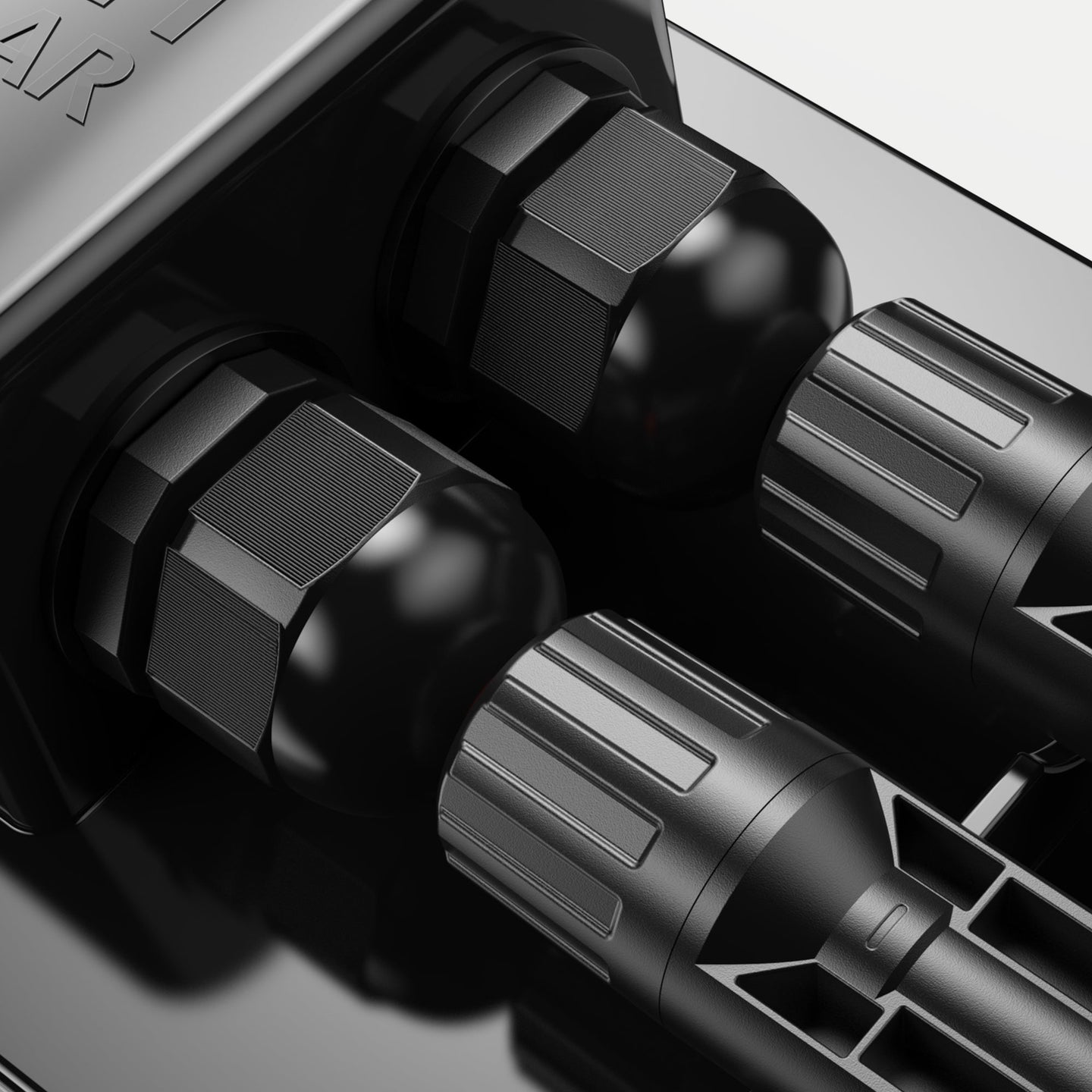

Reliable PG9 Head

• PA6 PG9 head with IP68 waterproof & dustproof sealing
• UL94V-2 flame-retardant, CE certified for reliability

Quick & Easy Installation

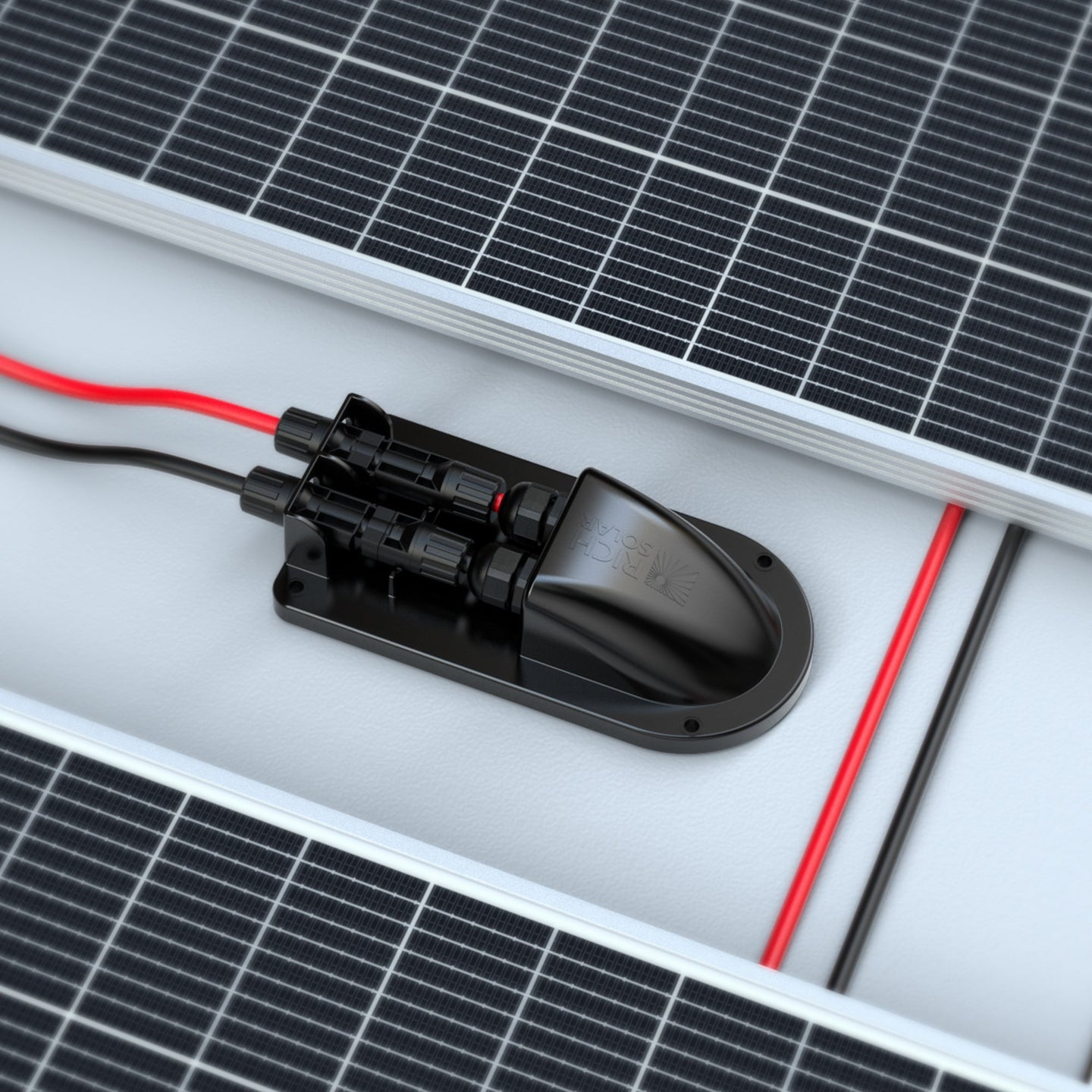

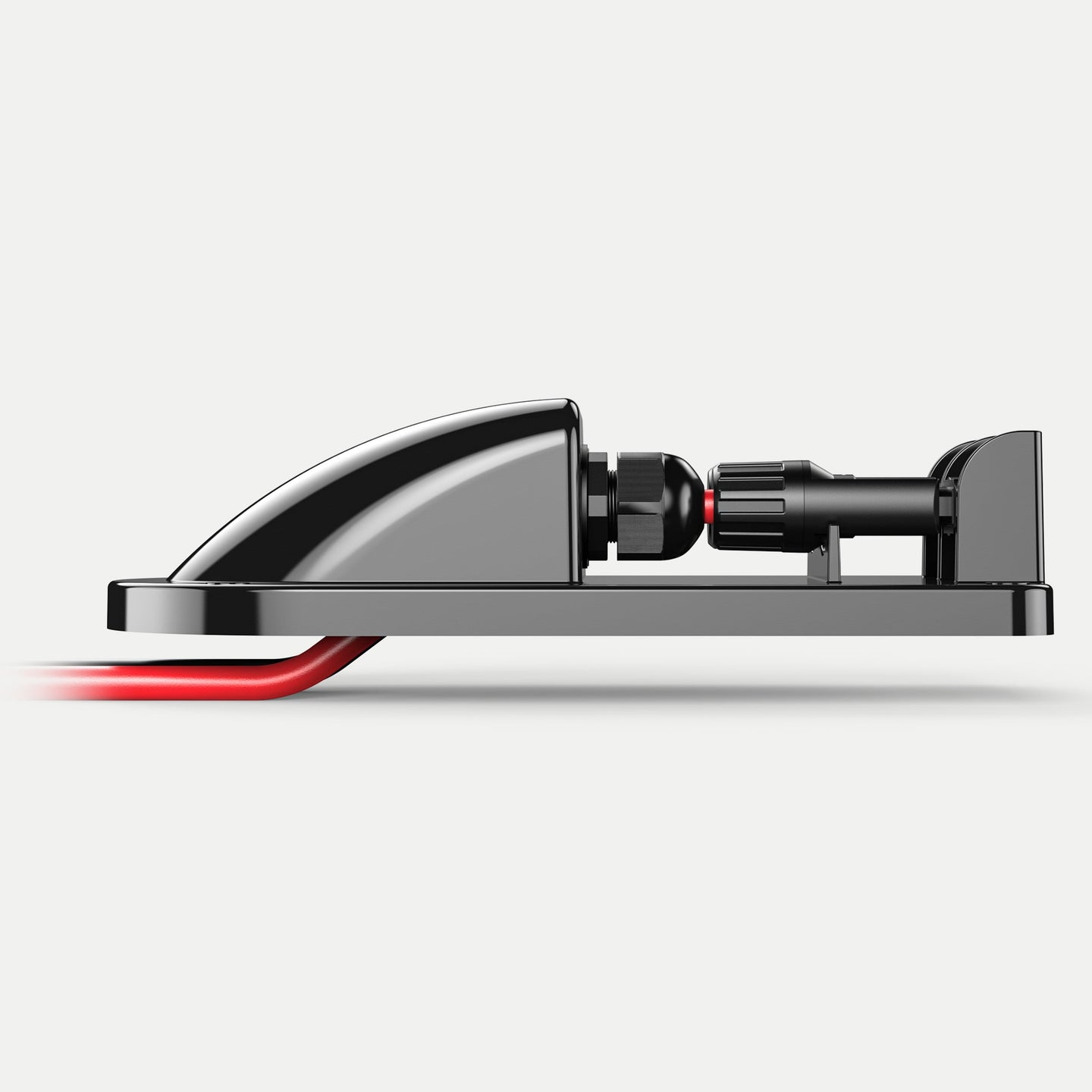

• Compact, low-profile rooftop mount design
• Secure with adhesive/sealant and screws (hardware not included)
• Simplifies cable management for faster, cleaner setup

Specifications

General

• Model: RS-G02
• Product Size (L x W x H): 7.2 x 3.8 x 2.0 in
• Weight: 0.34lb
• Junction Box Material: Polypropylene (PP)
• Junction Box Flame Retardant: Yes
• Color: Black
• Operating Temperature Range: -40℃ to 85℃(-40°F t0 185°F)

Electrical Ratings

• Maximum Current: 42A
• Continuous Current: 30A
• Maximum Voltage: 600V (Wire Rating)
• Wire Standard: UL 1015 10AWG (Red/Black)
• Wire Conductor: Tin-Plated Copper
• Wire Insulation: PVC (VW-1 Fire Rated)
• Wire Temperature Range: -15°C to 105°C (5°F to 221°F)

PG Head

• PG Head Specification: RNA-PG9
• PG Head Material: PA6
• PG Waterproof Rating: IP68
• PG Flame Retardant Rating: UL94V-2 Cerriffed
• Certification: CE

MC4 Connector

• Material: PC
• Certification: TUV
