RICH SOLAR

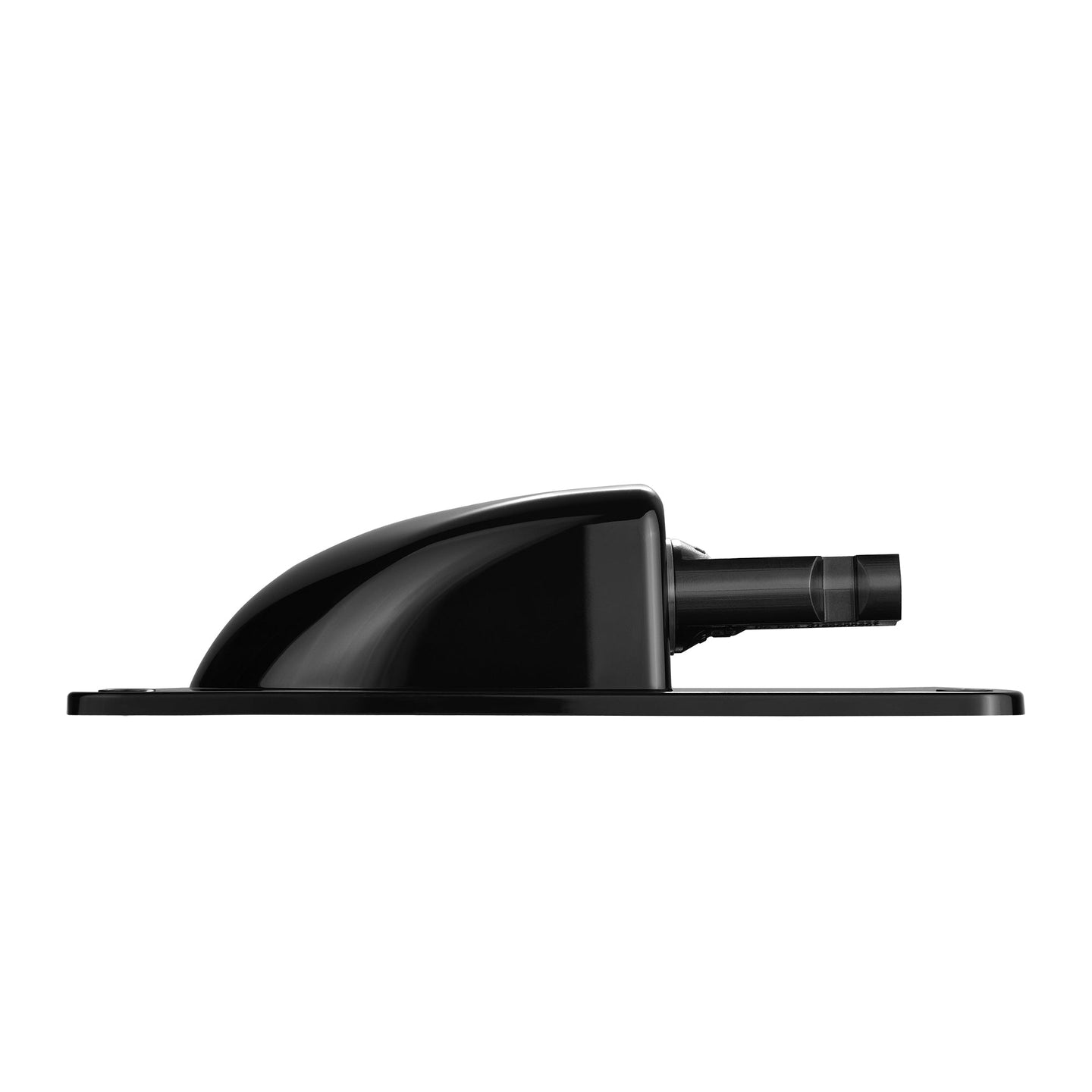

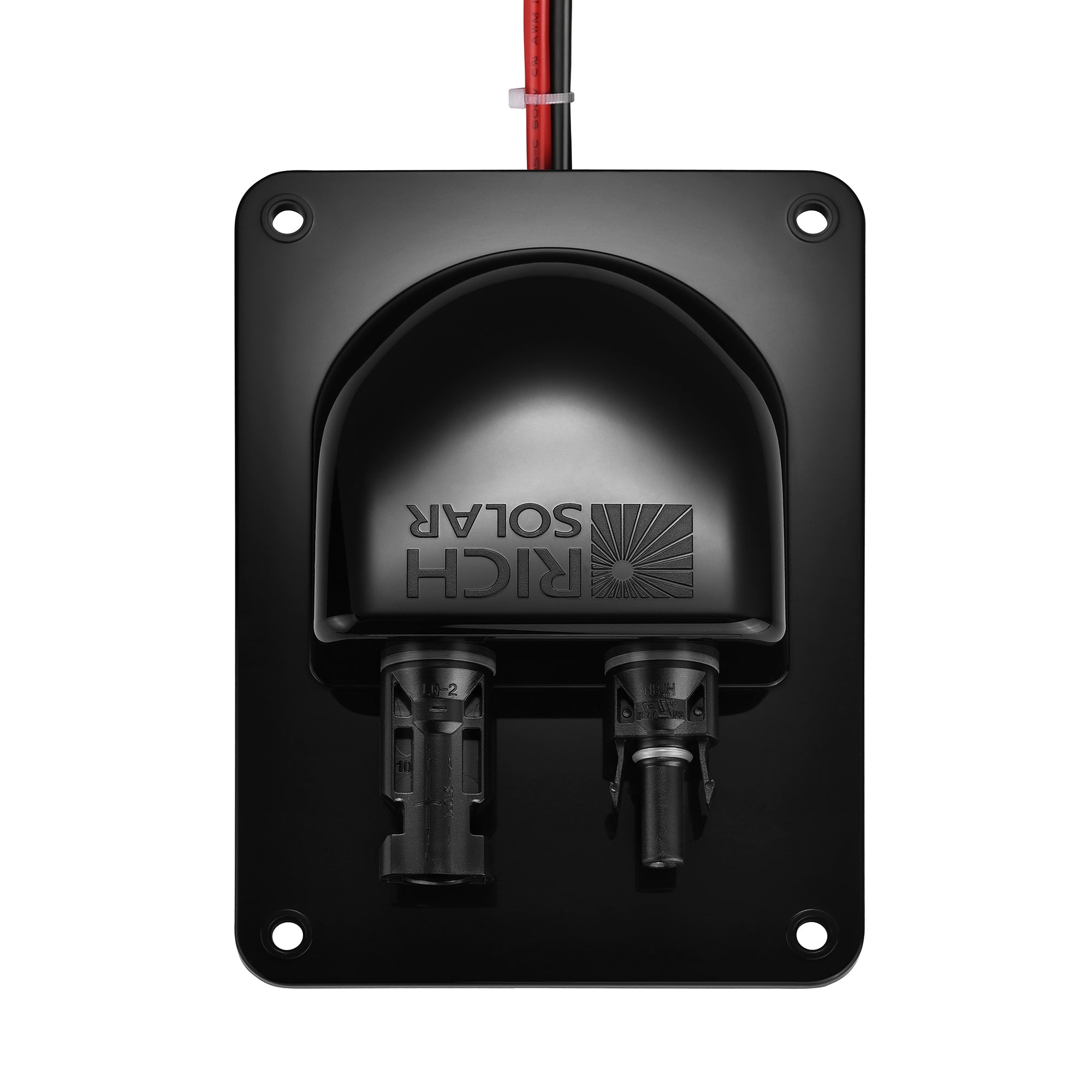

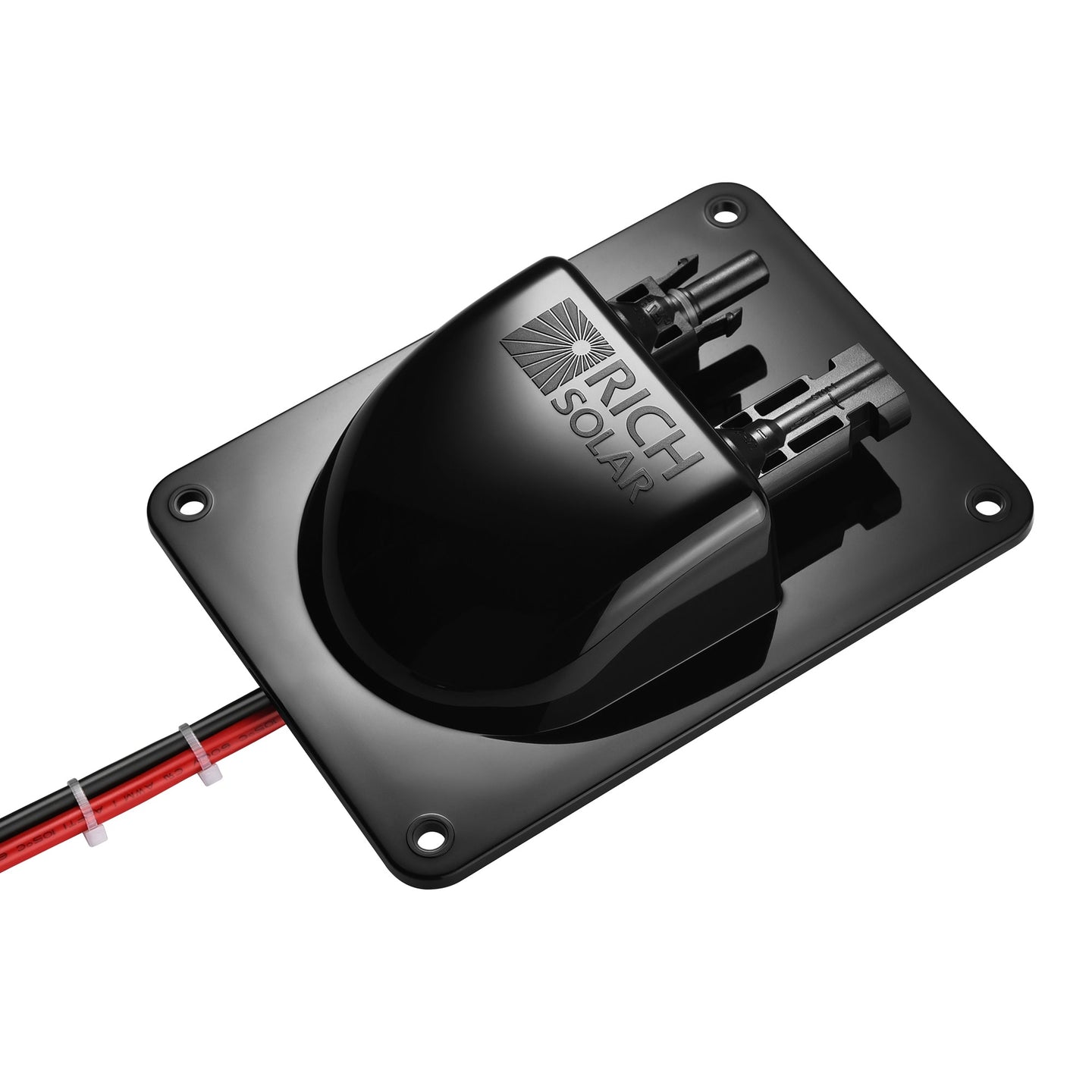

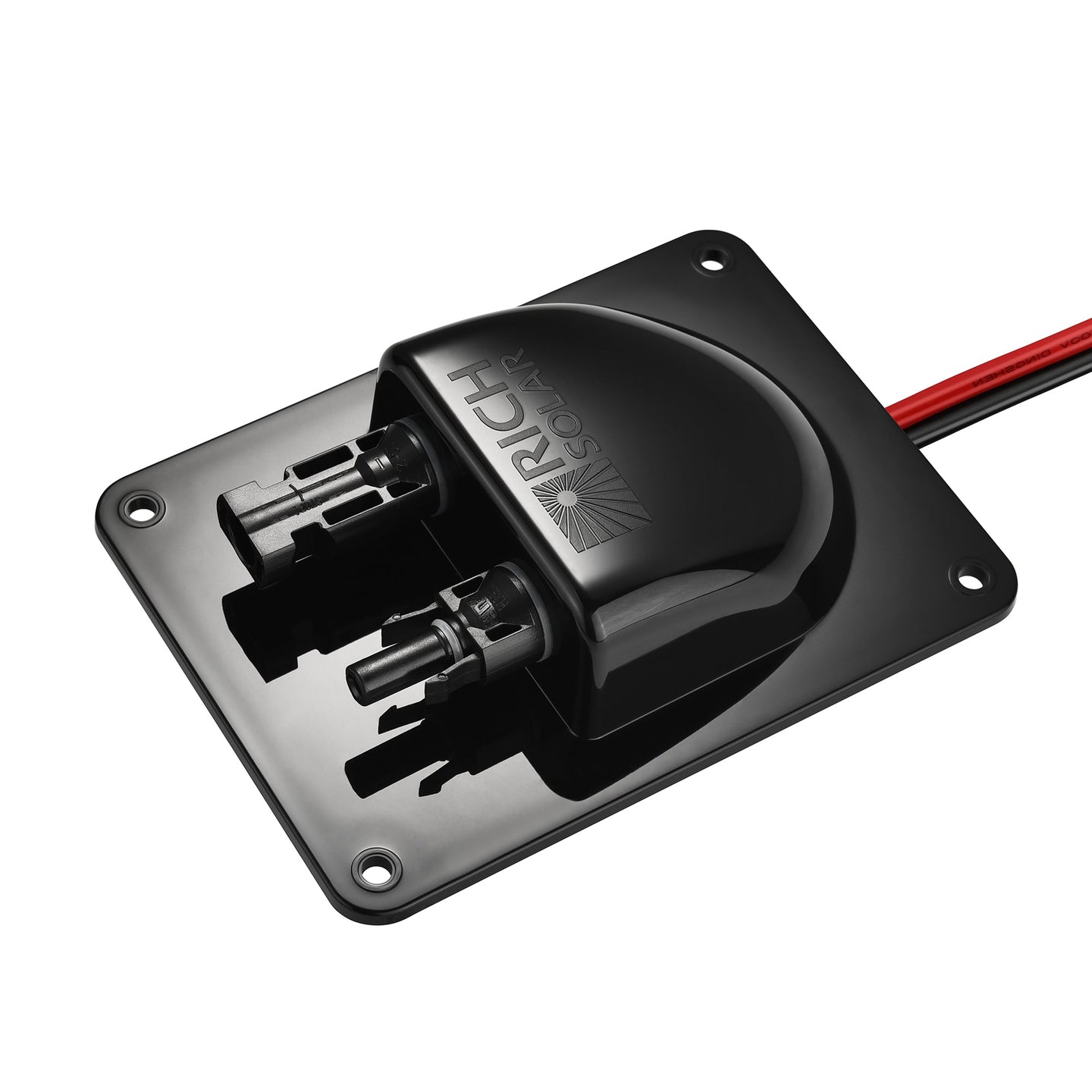

Cable Entry Plate | Polypropylene Housing with UL 8AWG 600V Wires for Solar Panels on RVs, Boats, Cabins

SKU RS-G05
$28.99
$28.99

RICH SOLAR

Cable Entry Plate | Polypropylene Housing with UL 8AWG 600V Wires for Solar Panels on RVs, Boats, Cabins

SKU RS-G05
$28.99
Cable Entry Plate | Polypropylene Housing with UL 8AWG 600V Wires for Solar Panels on RVs, Boats, Cabins

Frequently Bought Together

Total price$7,617.98

Product Description

Features

High Power Capacity

  • Rated for 37.7A / 600V with UL1015-certified 8AWG tin-plated copper wires
  • Tin-plated conductors ensure stable, corrosion-resistant performance

Certified Fire Safety

  • MC4 connectors are UL Listed and UL94V0 flame-retardant
  • VW-1 rated PVC insulation resists heat up to 221°F (105°C)

Outdoor-Ready Durability

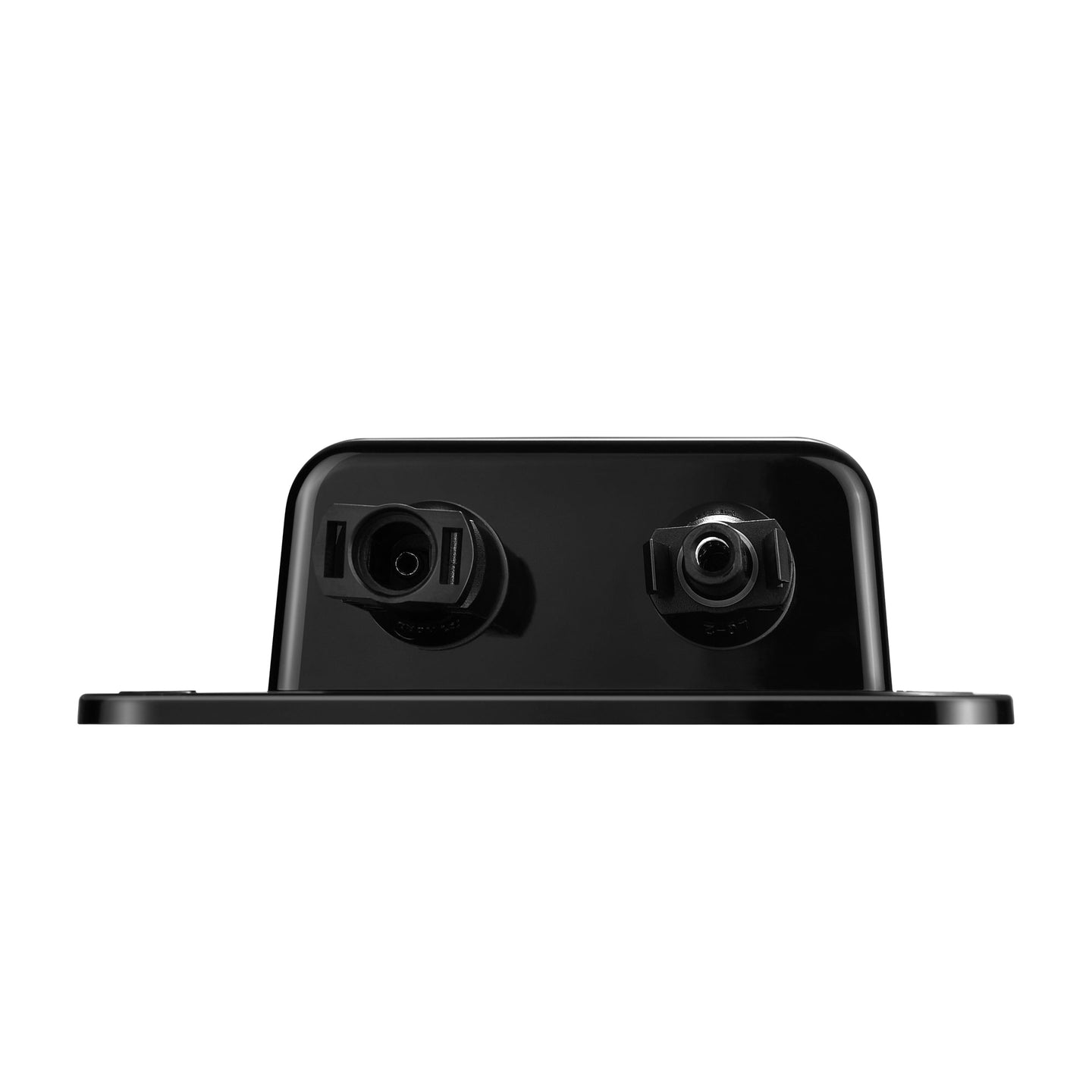

  • IP68 waterproof MC4 connectors, pre-installed for secure sealing
  • Flame-retardant PP housing operates from -40°F to 185°F
  • Reinforced design resists vibration, ideal for mobile and RV use

Quick Flexible Installation

  • Small and light (5.9×4.3×1.6 in, 0.34 lb), requires no extra roof support

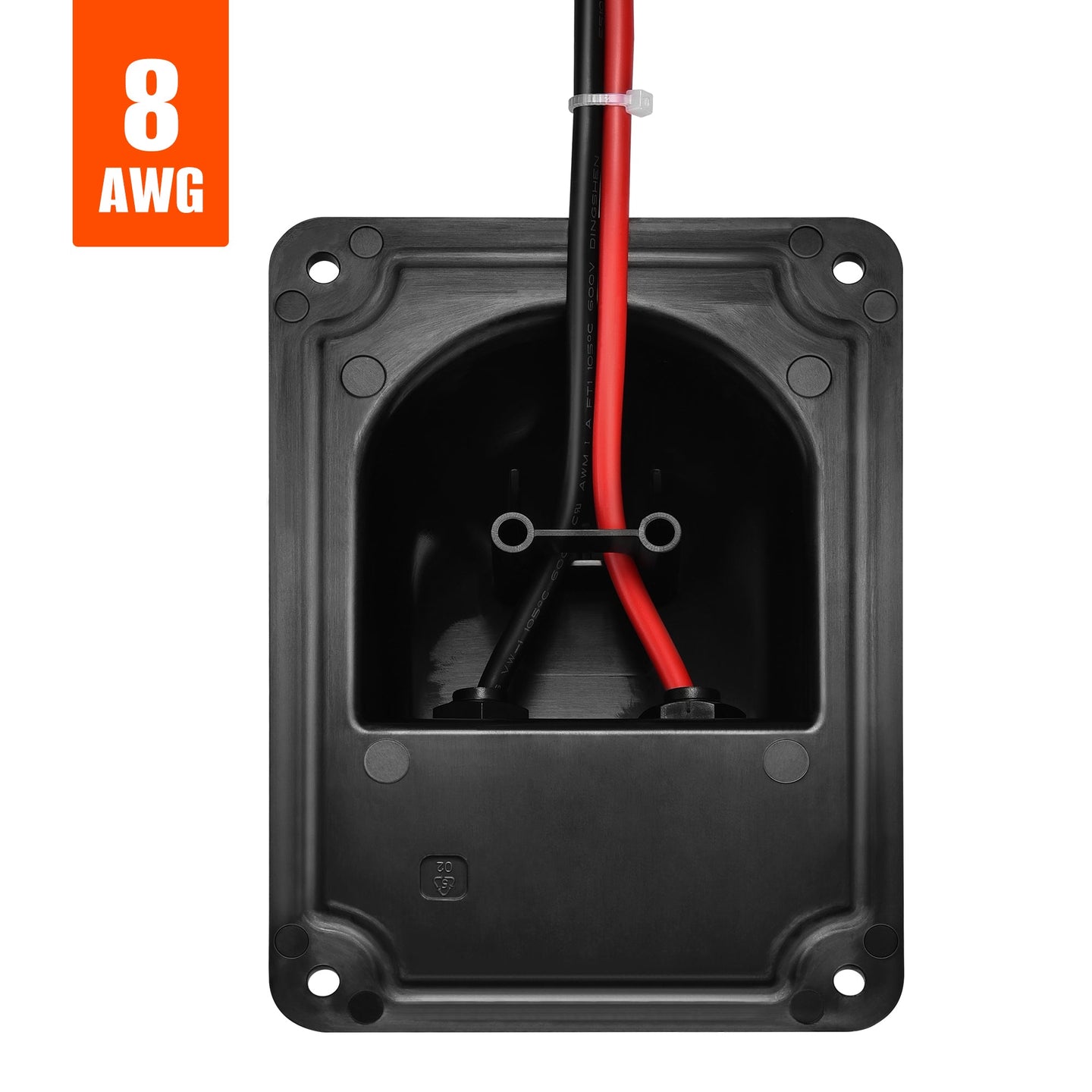

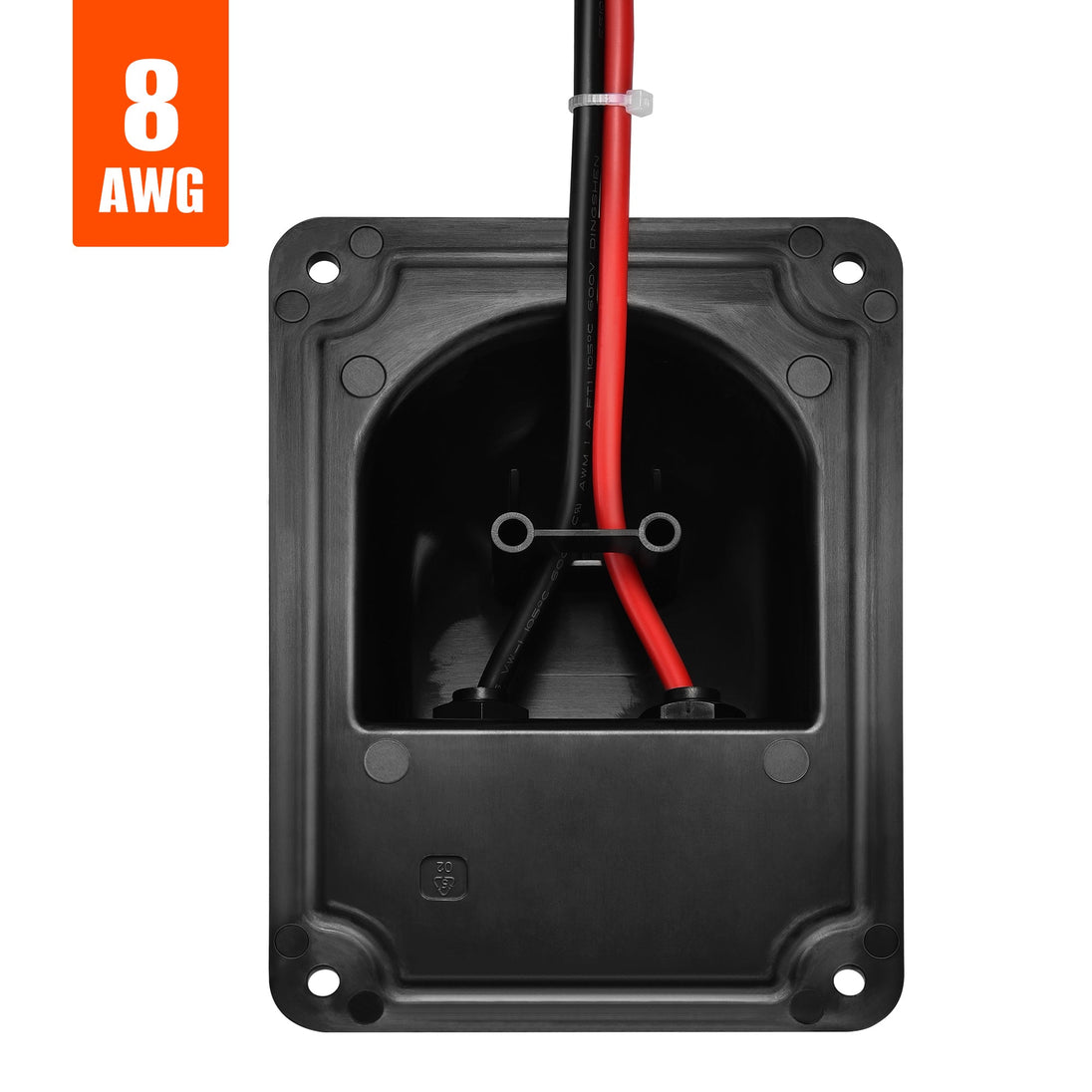

  • Red/black 8AWG wires with polarity markings
  • Mount with adhesive, sealant, or screws (not included)

Specifications

General

  • Dimensions (L × W × H): 5.9 × 4.3 × 1.6 in
  • Weight: 0.34 lb
  • Material: Flame-Retardant Polypropylene (PP)
  • Color: Black
  • Operating Temperature: -40°C to 85°C (-40°F to 185°F)

MC4 Connector Details

  • Material: PC Shell
  • Waterproof Rating: IP68
  • Flame Retardant: UL94V0 Certified
  • Certification: UL Listed

Electrical Ratings

  • Maximum Current: 50A
  • Continuous Current: 37.7A
  • Maximum Voltage: 600V (Wire Rating)
  • Wire Standard: UL 1015 8AWG (Red/Black)
  • Wire Conductor: Tin-Plated Copper
  • Wire Insulation: PVC (VW-1 Fire Rated)
  • Wire Temperature Range: -15°C to 105°C (5°F to 221°F)
