RICH SOLAR

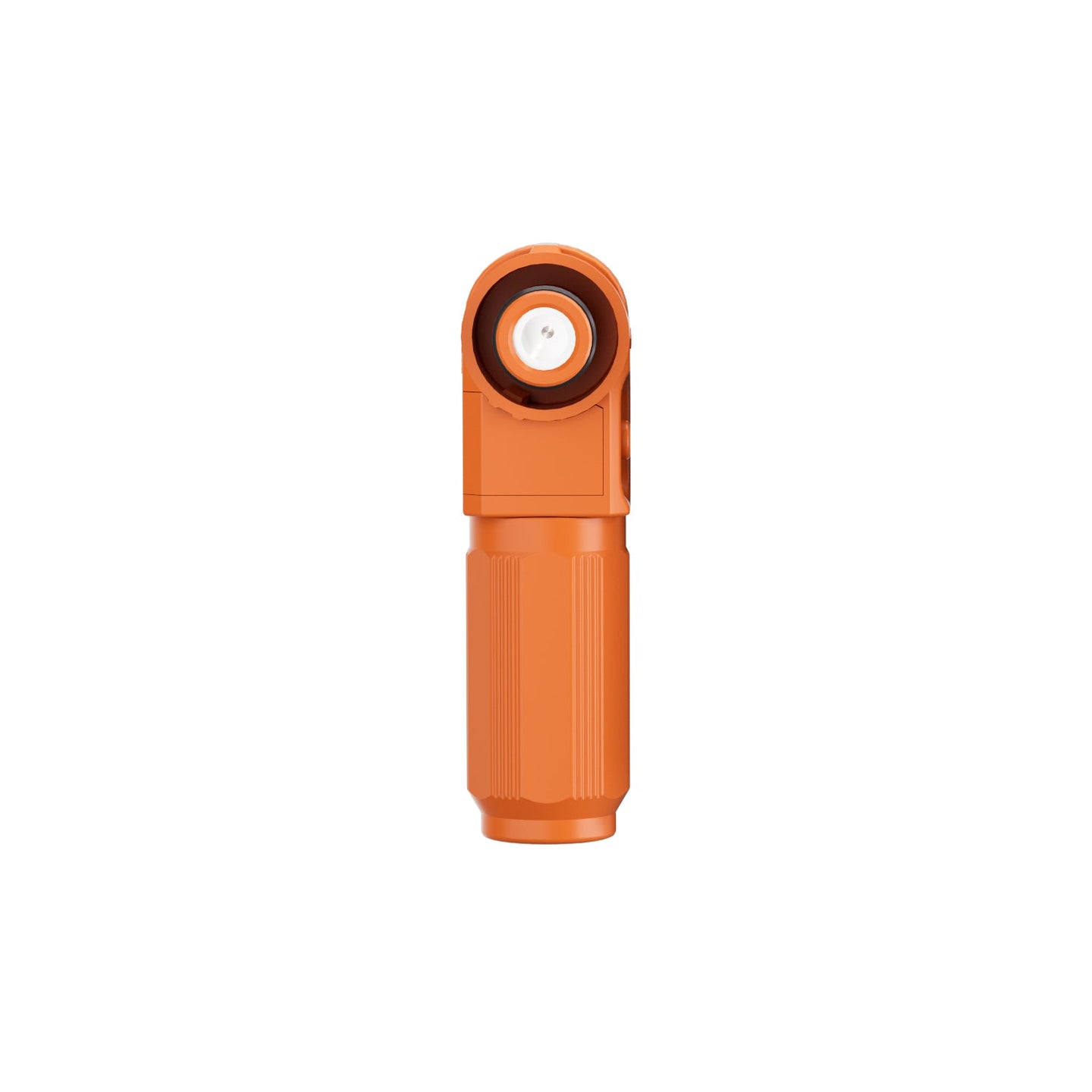

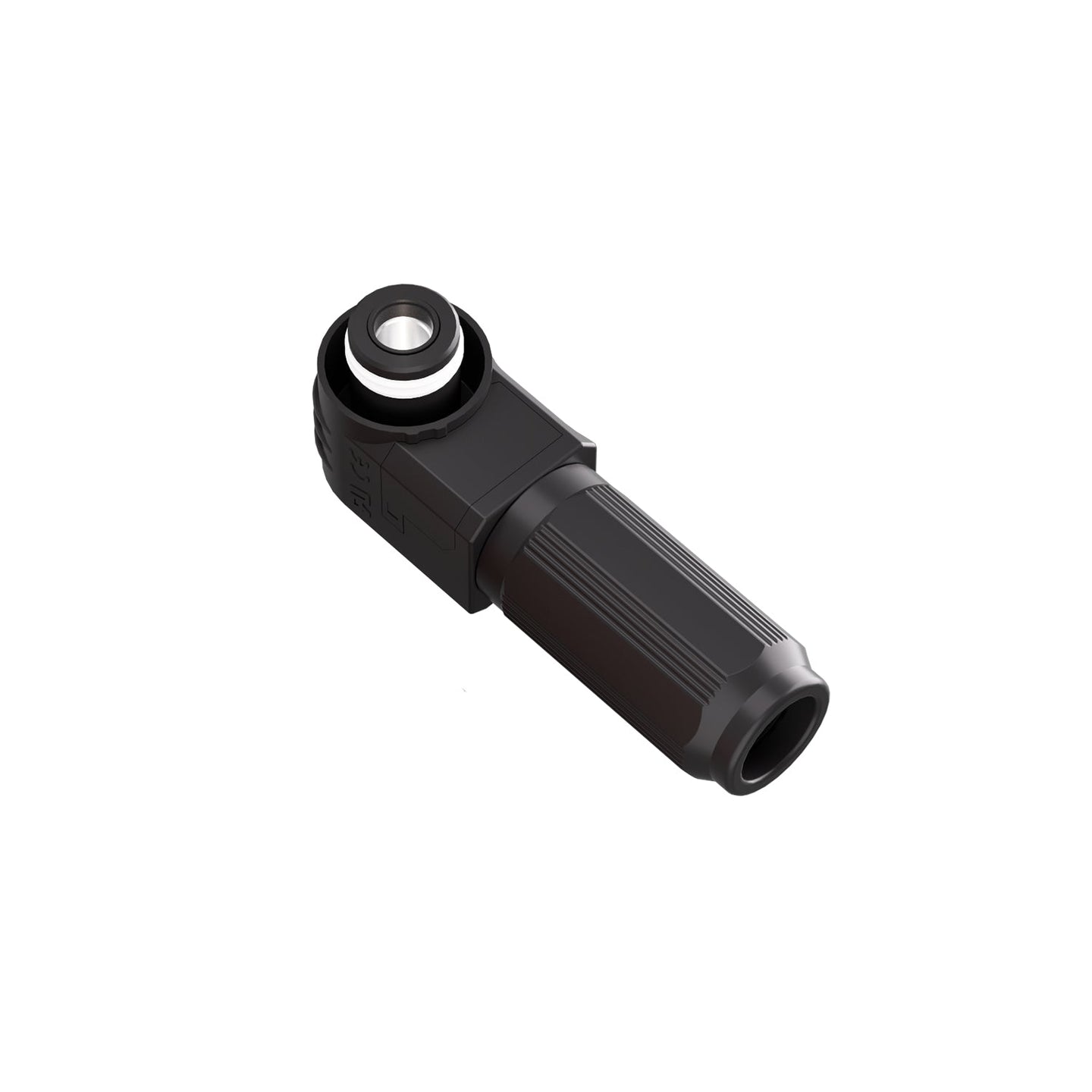

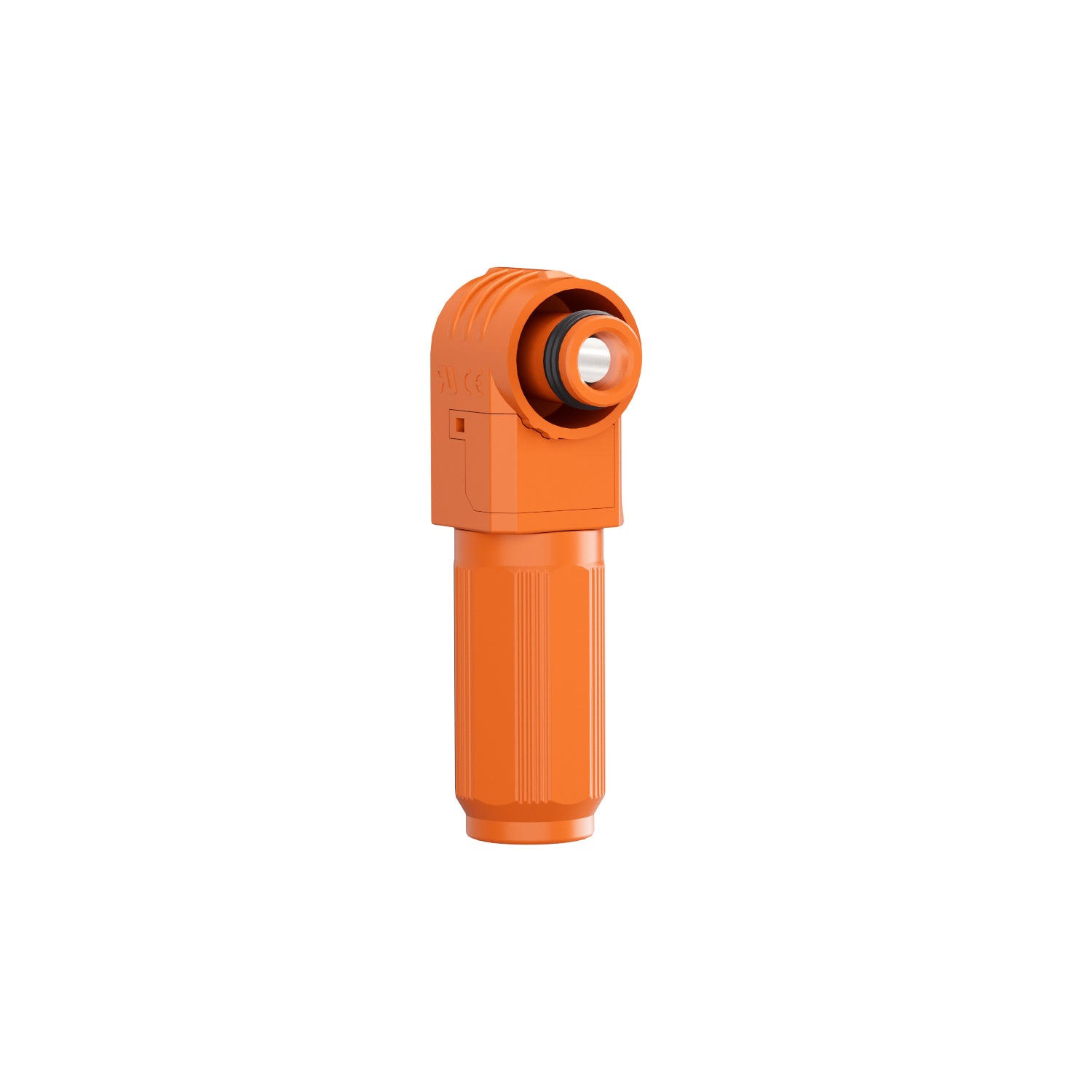

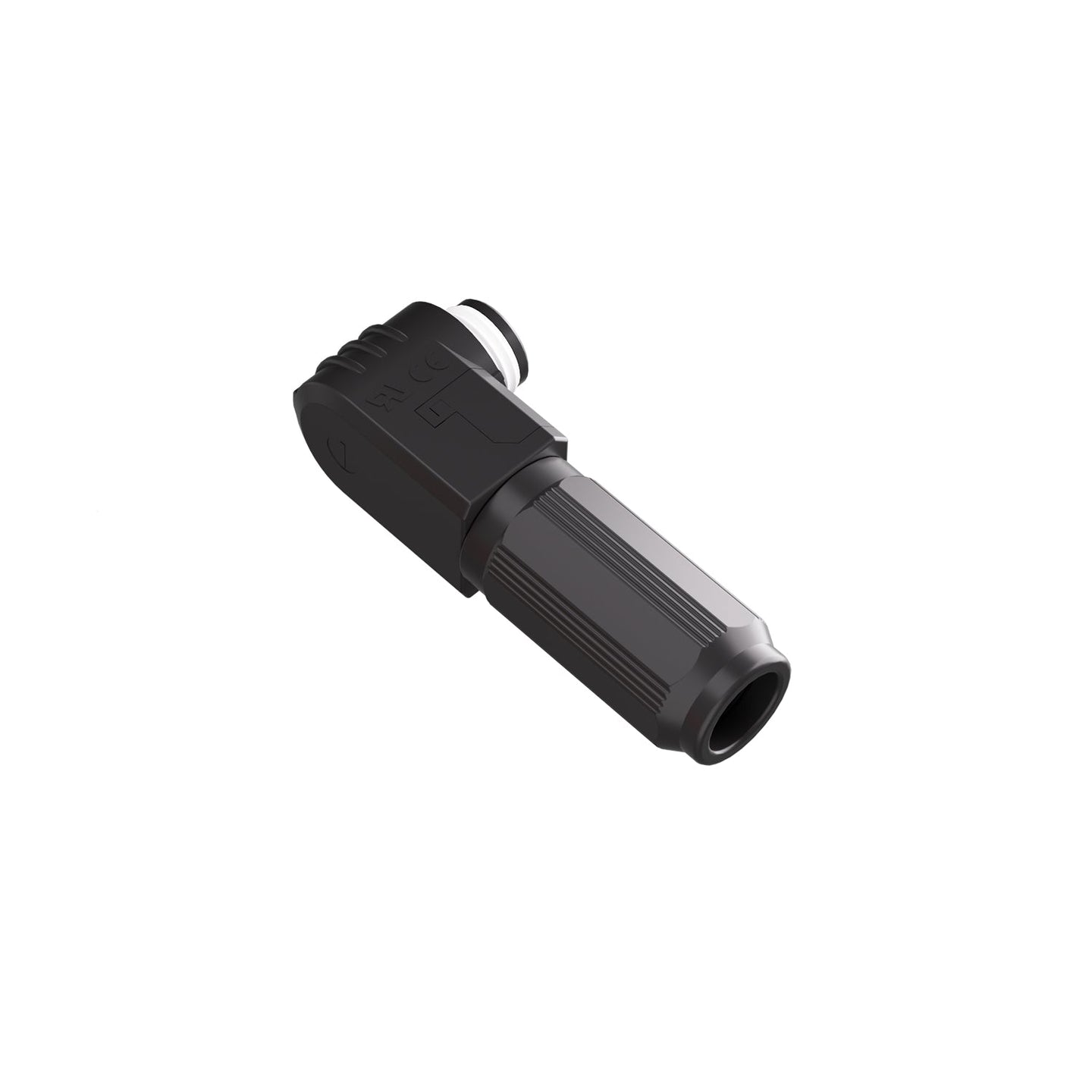

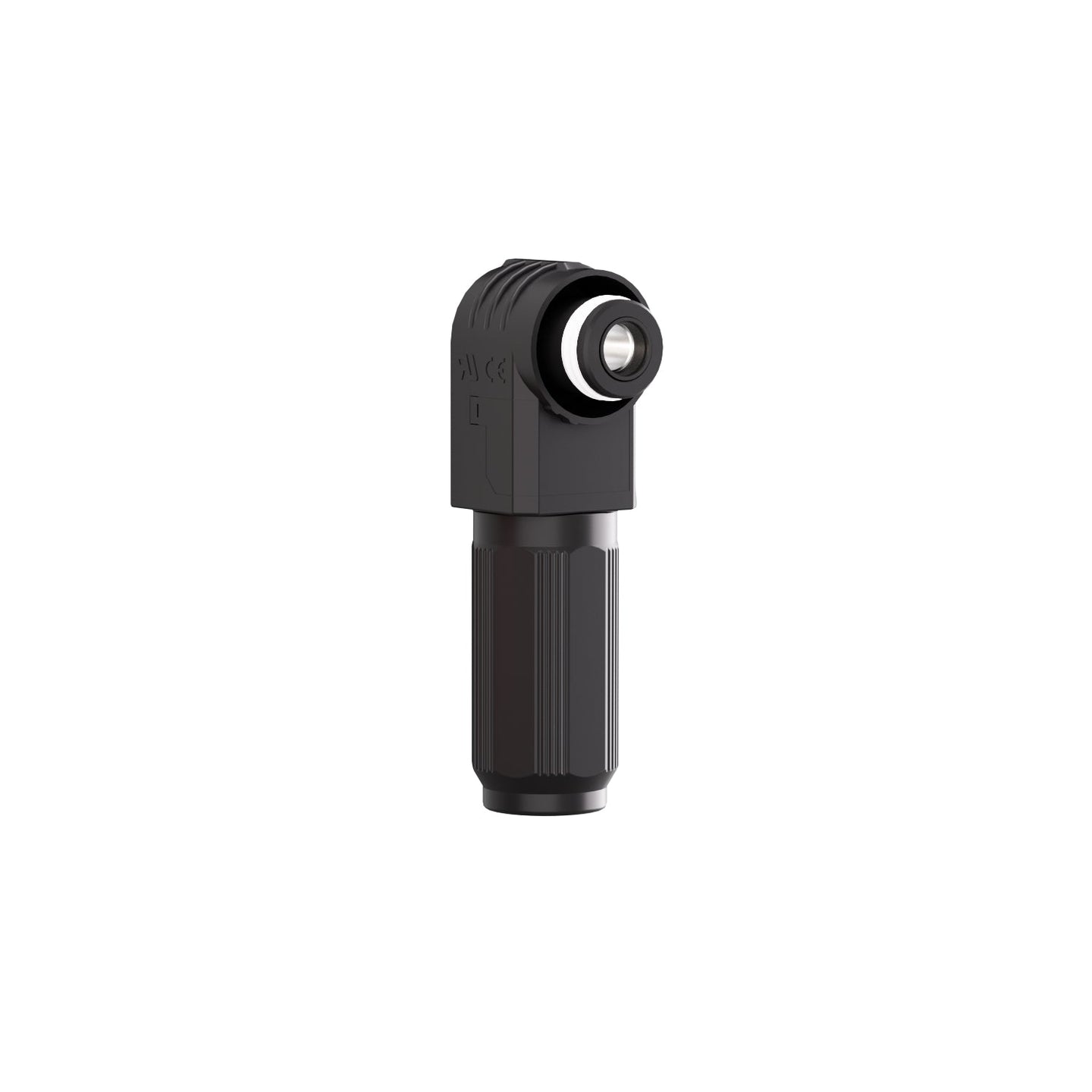

Energy Storage Connector | 120A 4AWG Wall-Mount DC Connector | ALPHA 5 PRO Battery Cable Connector

SKU RS-8001
$25.99
$25.99
Polarity Options:

RICH SOLAR

Energy Storage Connector | 120A 4AWG Wall-Mount DC Connector | ALPHA 5 PRO Battery Cable Connector

SKU RS-8001
$25.99
Energy Storage Connector | 120A 4AWG Wall-Mount DC Connector | ALPHA 5 PRO Battery Cable Connector

Frequently Bought Together

Total price$7,614.98

Product Description

Features

  • 1500V DC / 120A rated: Supports high-power DC applications safely.
  • Dual-size contacts: Different positive and negative pin sizes prevent reverse connection.
  • IP67 protection when mated: Ideal for harsh outdoor environments.
  • Wide temperature range: Reliable operation from -40°F to 257°F.
  • Flame-retardant housing: Strong, impact-resistant, and fire-safe design.
  • Low-resistance copper contacts: Efficient, durable, and oxidation-resistant performance.
  • Snap-lock, tool-free installation: Fast, simple, and convenient setup.
  • Certified UL, CE, RoHS: Ensures international safety and reliability standards.

Specifications

Model: RS-8001 / RS-8002

Electrical:

  • Rated Voltage: 1500 V DC
  • Rated Current: 120 A
  • Contact Resistance: ≤ 0.5 mΩ
  • Insulation Resistance: ≥ 5000 MΩ (Dry)
  • Dielectric Withstand Voltage: 6800 V/min

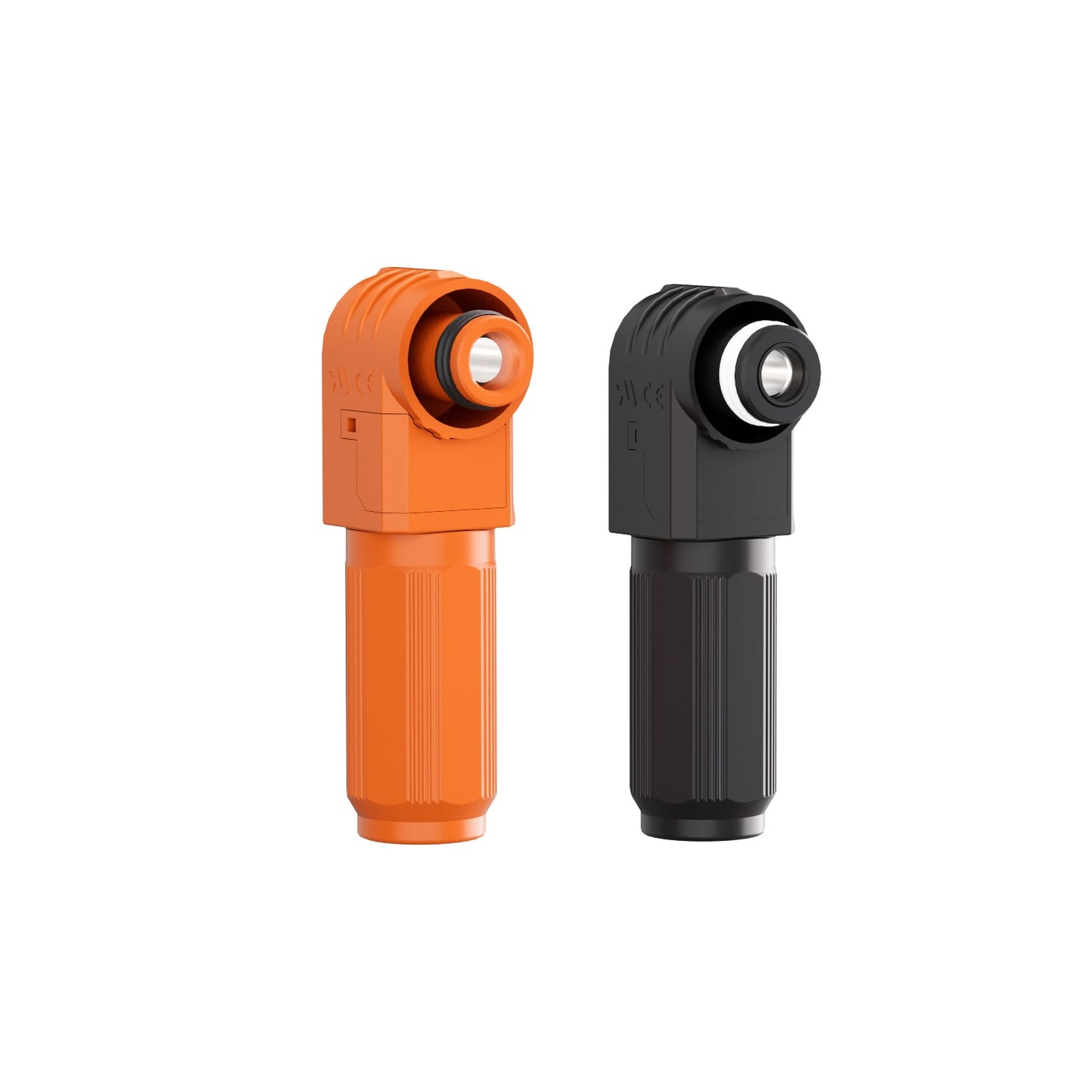

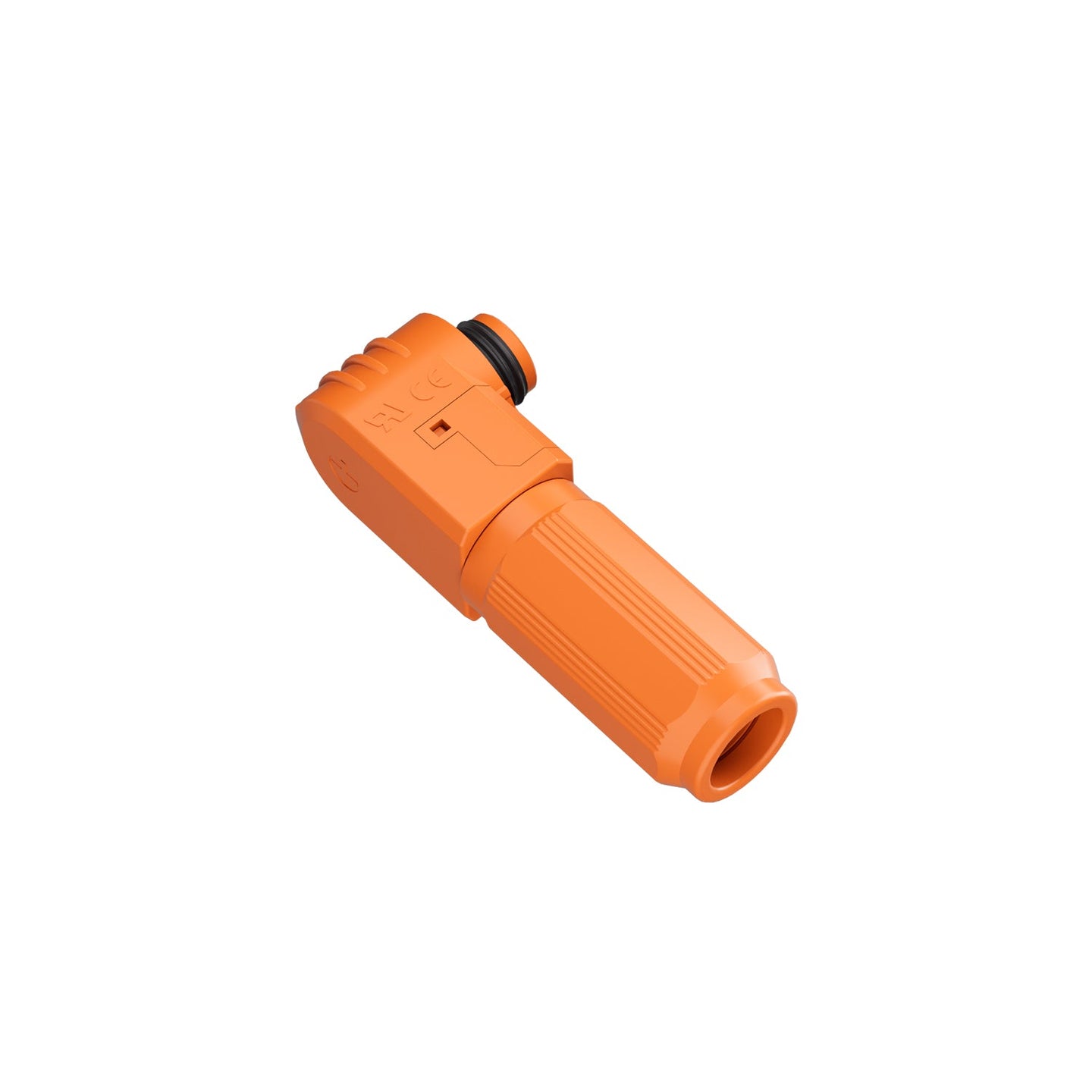

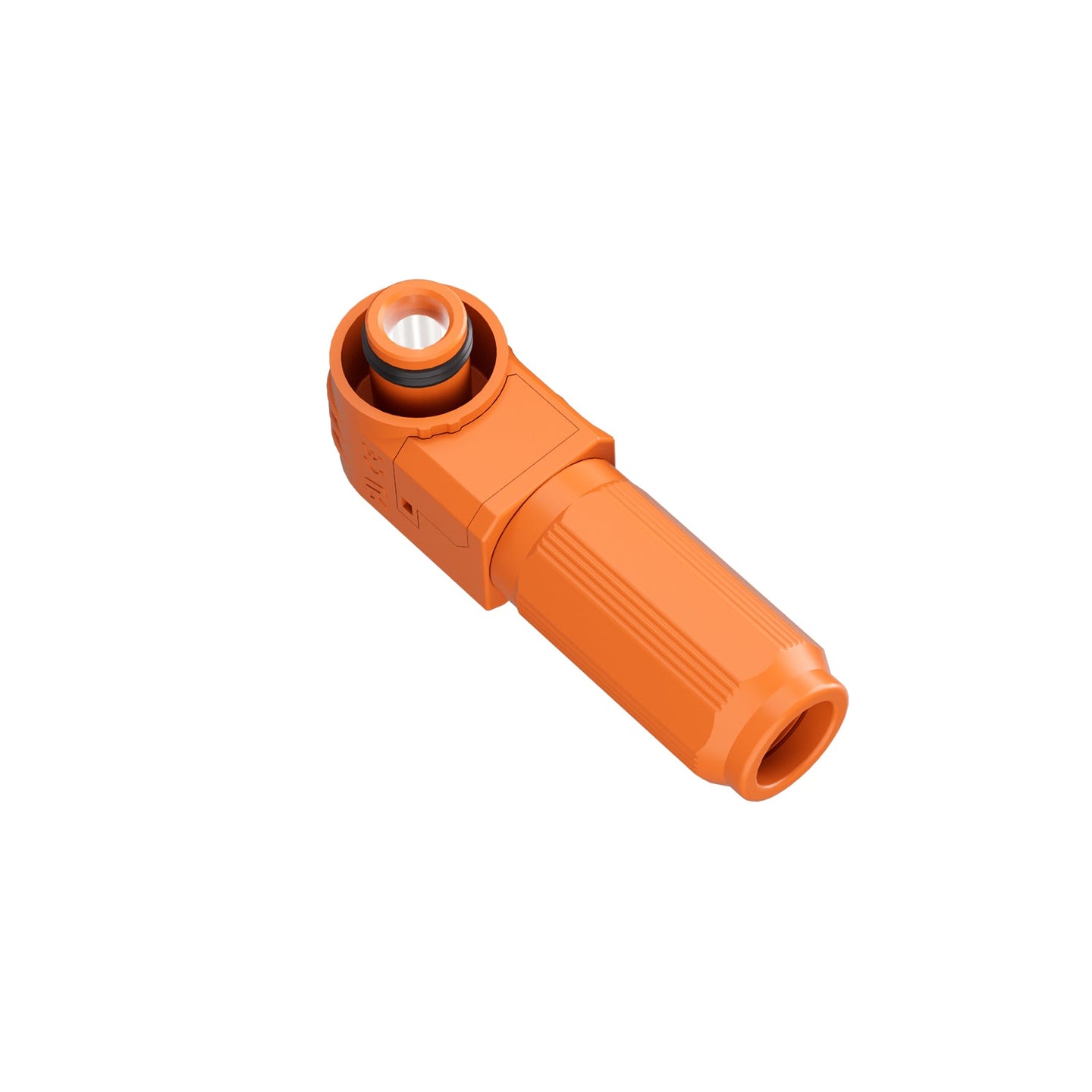

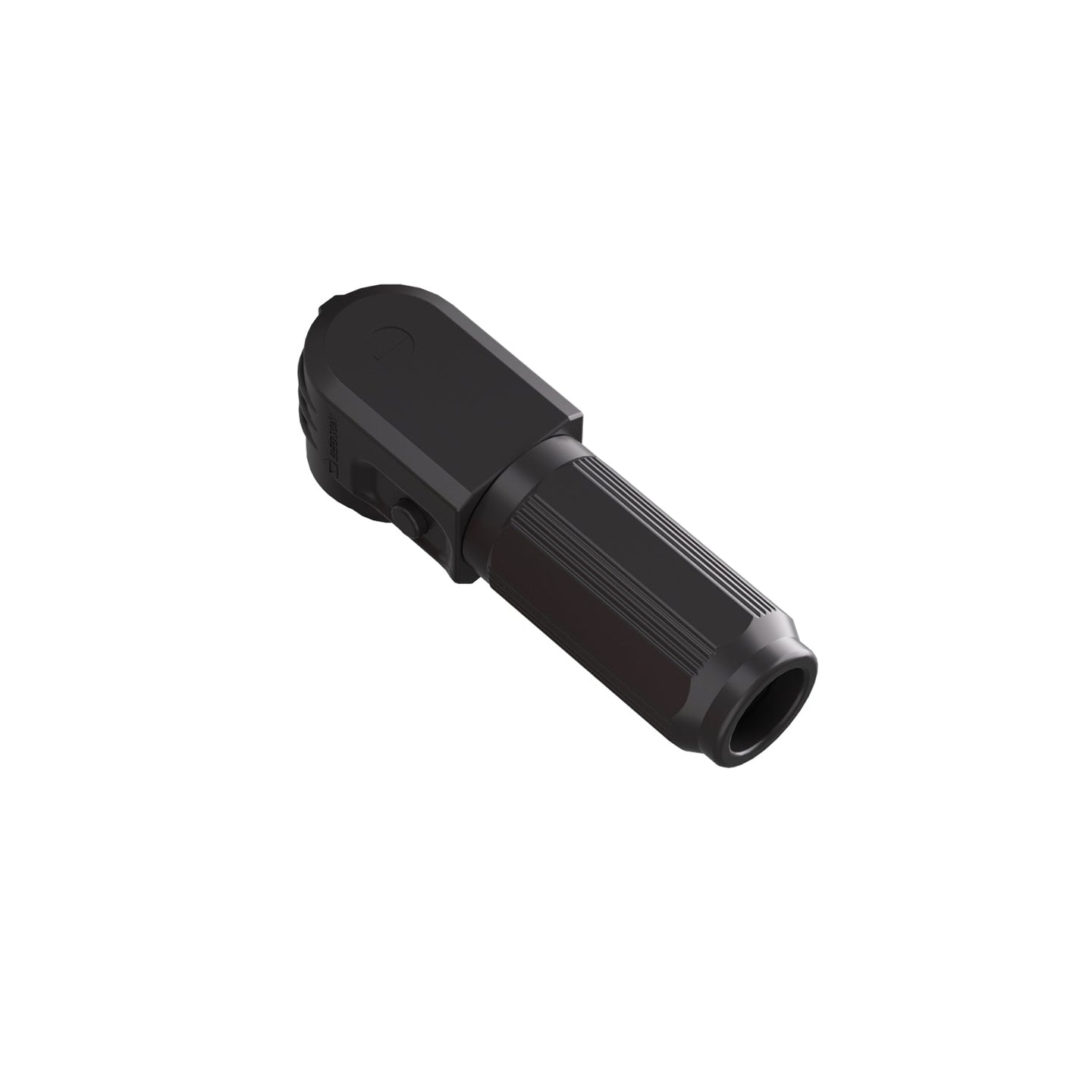

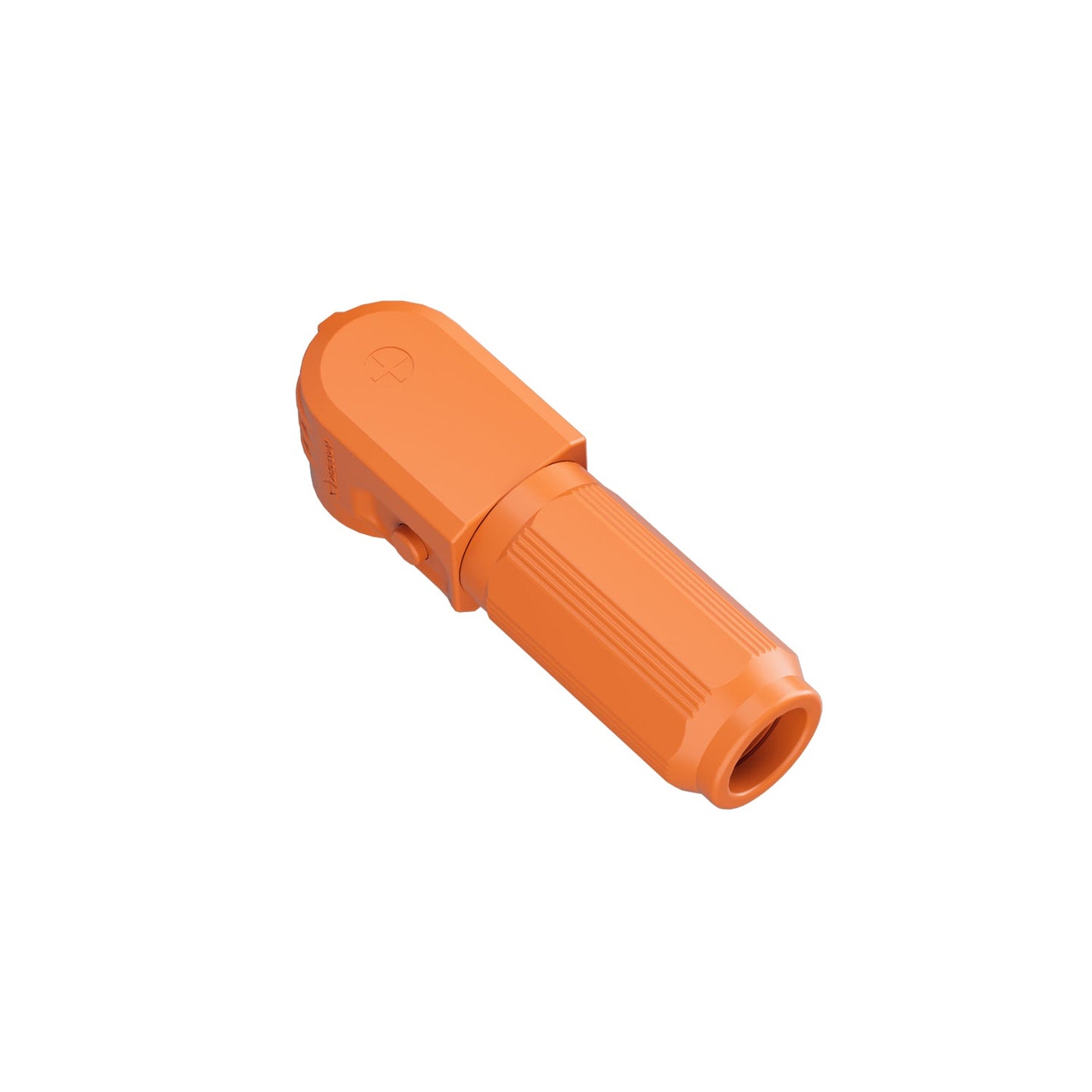

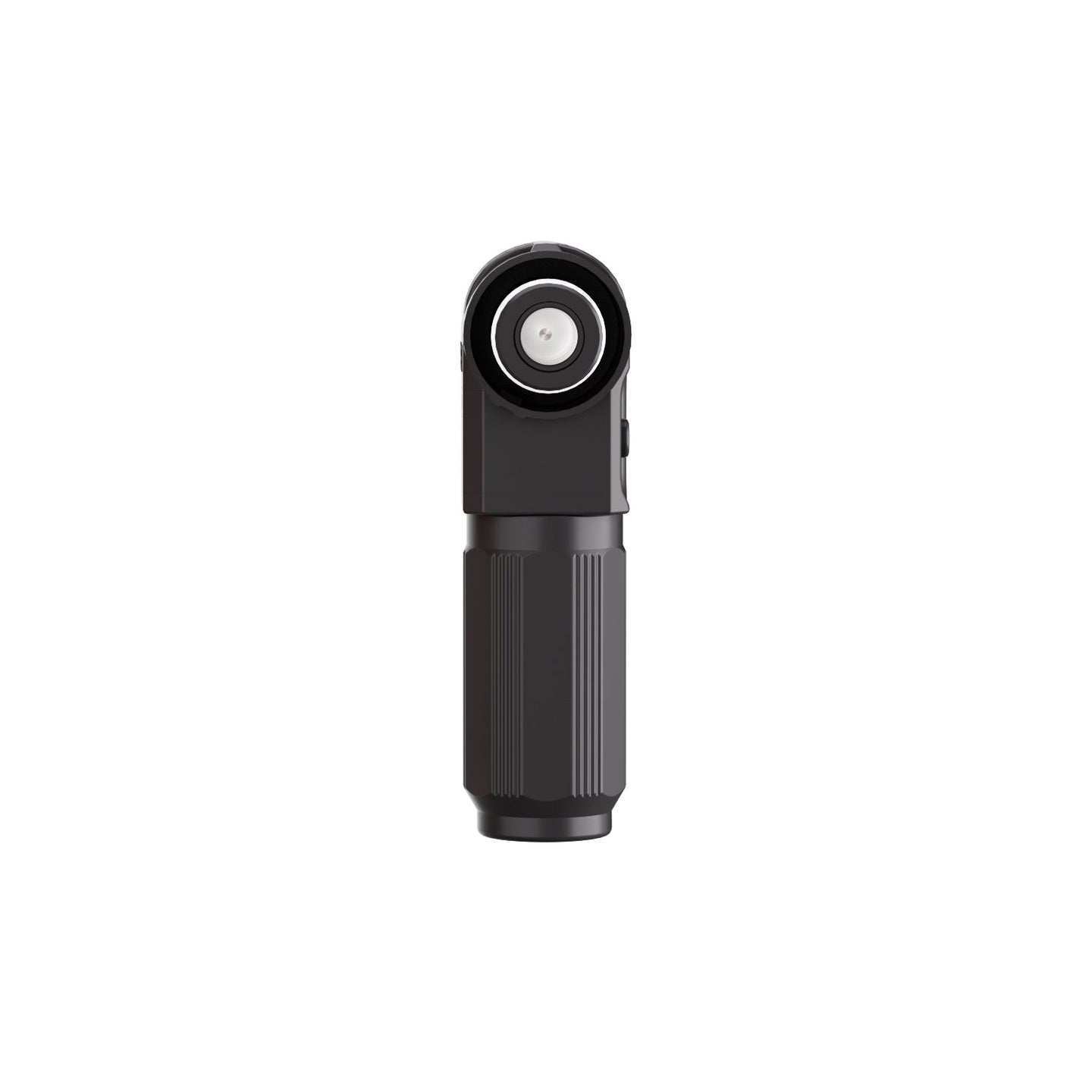

  • Polarity: Positive (Orange) / Negative (Black)

Mechanical:

  • Locking Mechanism: Snap-Fit
  • Mounting Type: Wall Mount

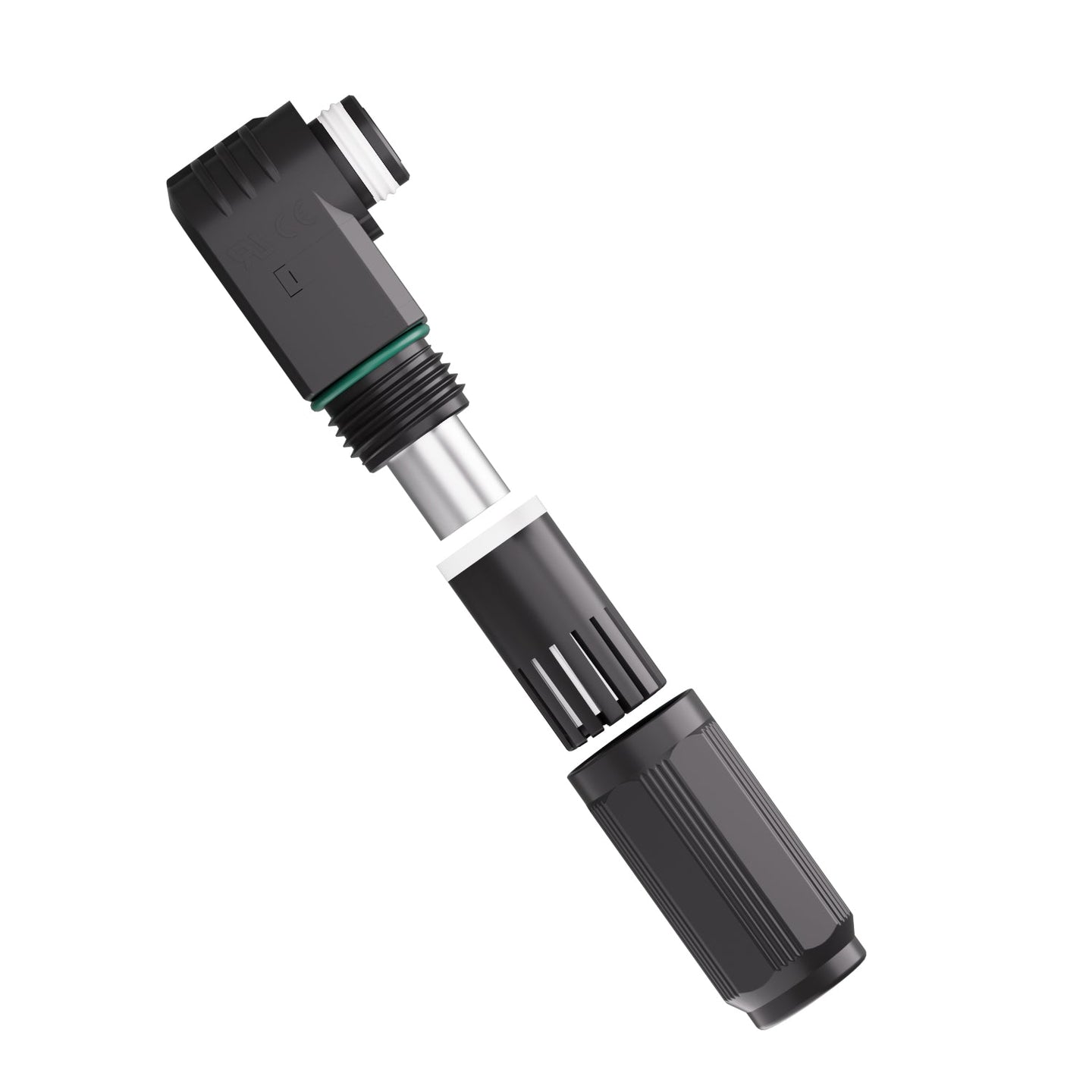

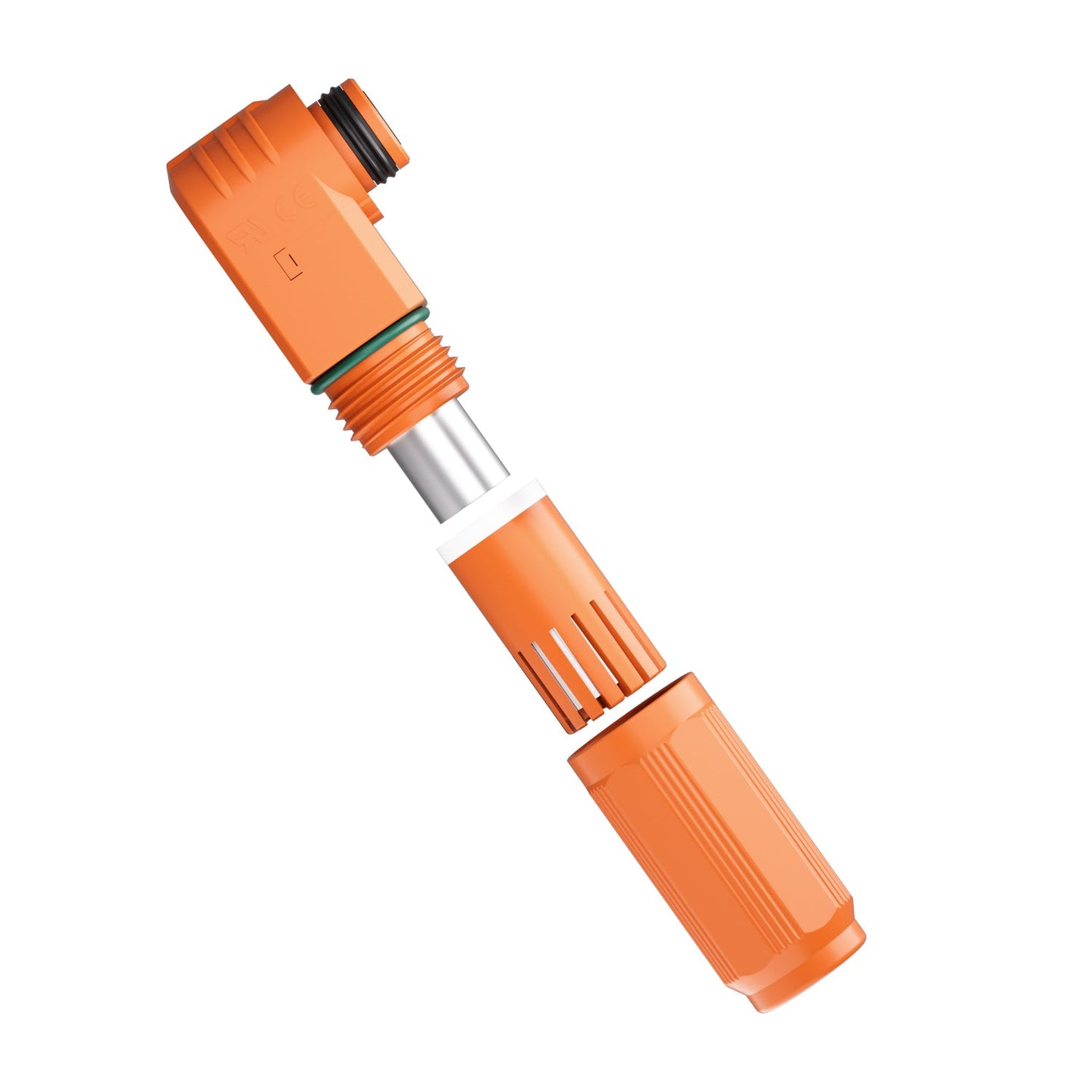

  • Terminal Type: Crimp
  • Compatible Cable: 4AWG / 25 mm²
  • Recommended Strip Length: 13-14 mm
  • Mating Cycles: 100 times
  • Insertion / Withdrawal Force: ≤ 60 N / > 10 N

Environmental & Physical:

  • IP Rating: IP67 (Mated)
  • Operating Temperature: -40°F to 257°F (-40°C to +125°C)
  • Flammability: UL94 V-0
  • Dimensions: 2.60 × 0.63 in (66 × 16 mm)
  • Net Weight: 1.31 oz (37g)

Certifications & Compliance:

  • Safety: UL, CE
  • Environmental: RoHS
