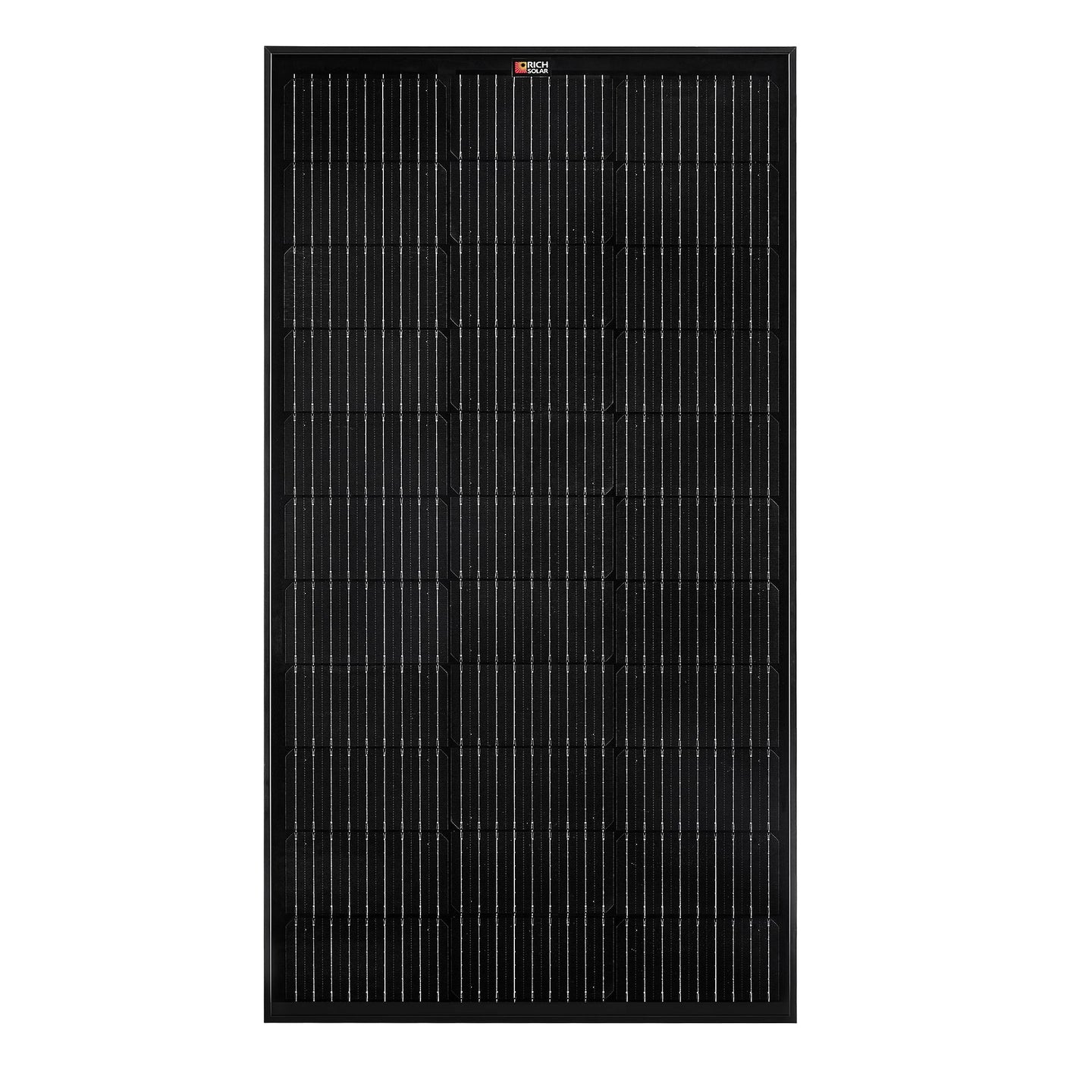

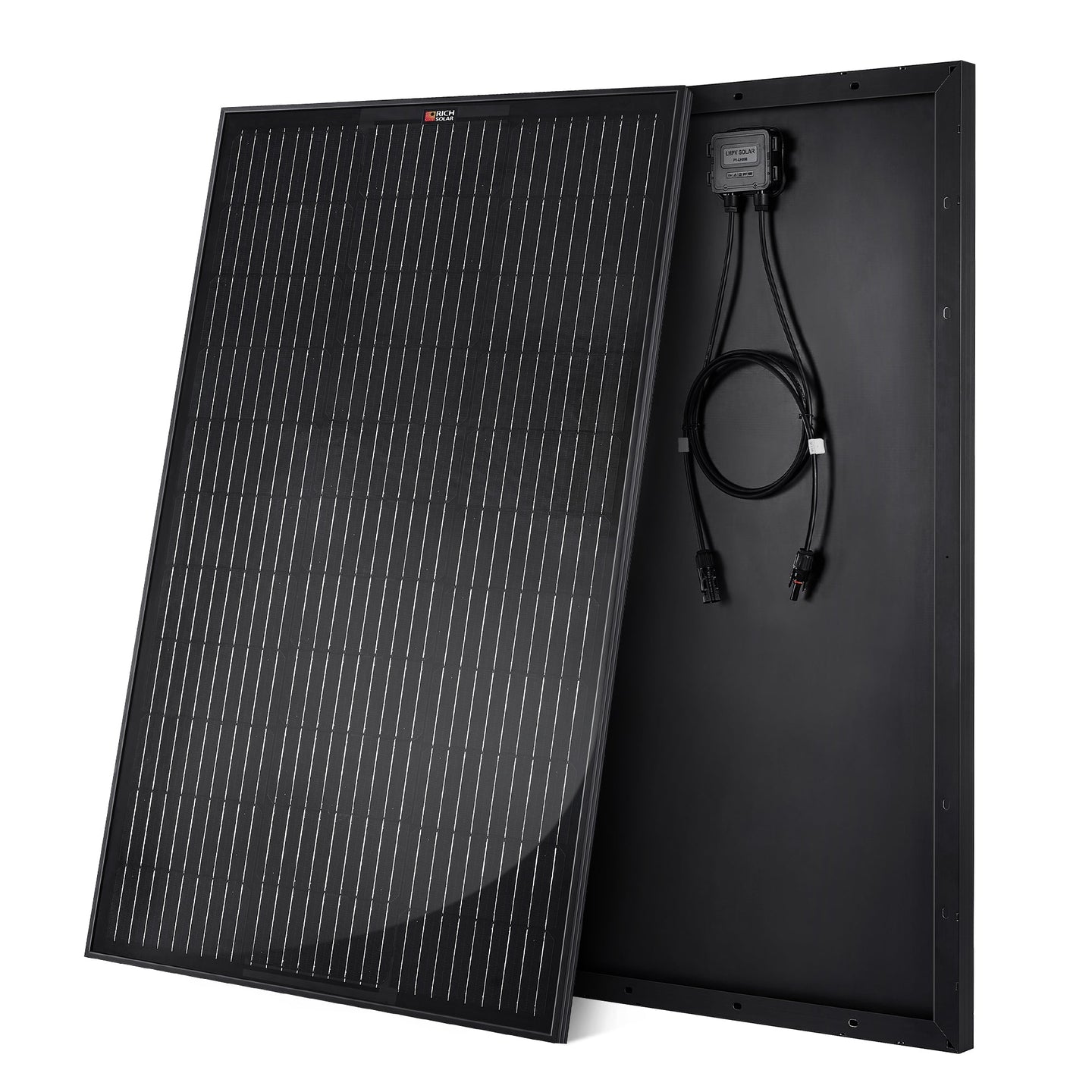

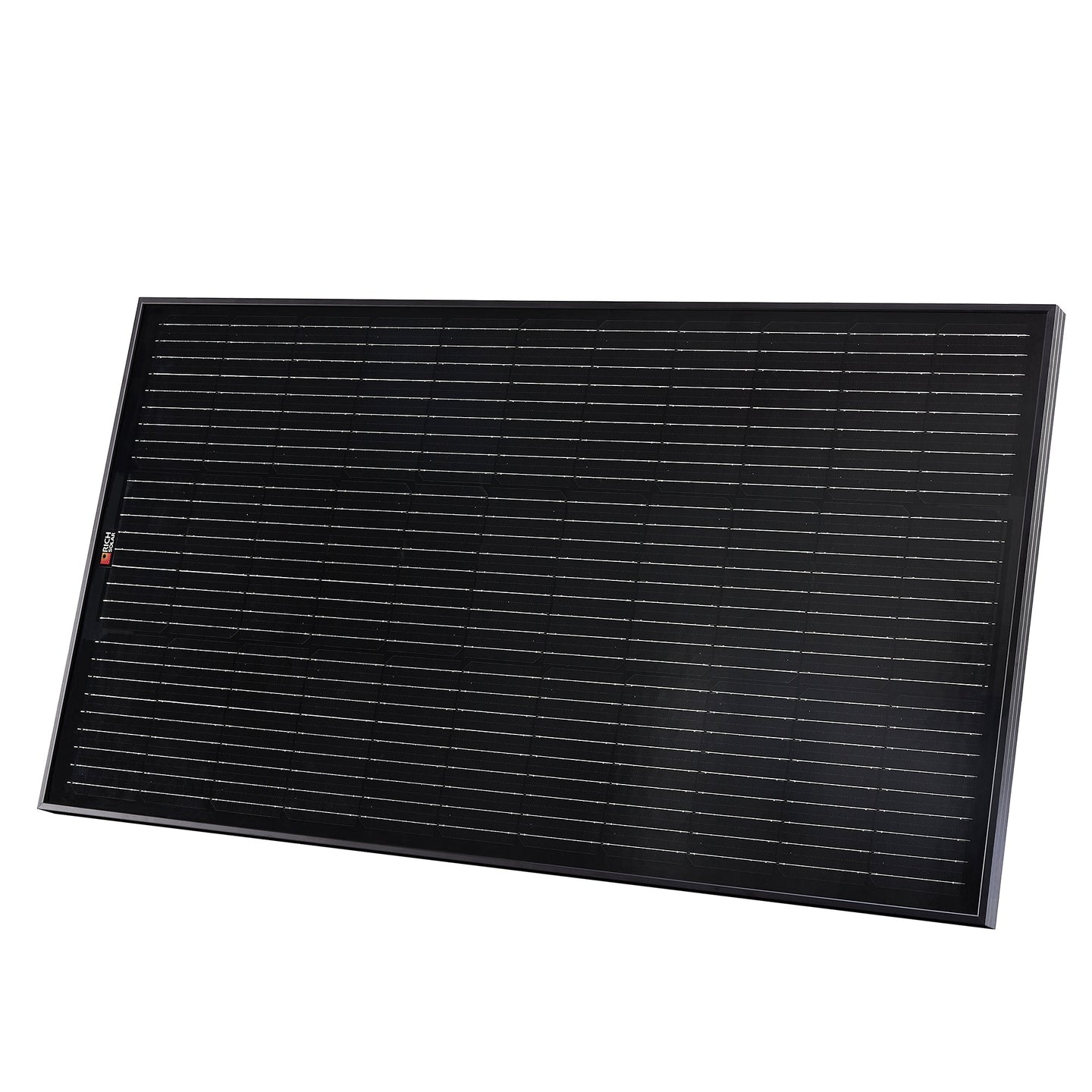

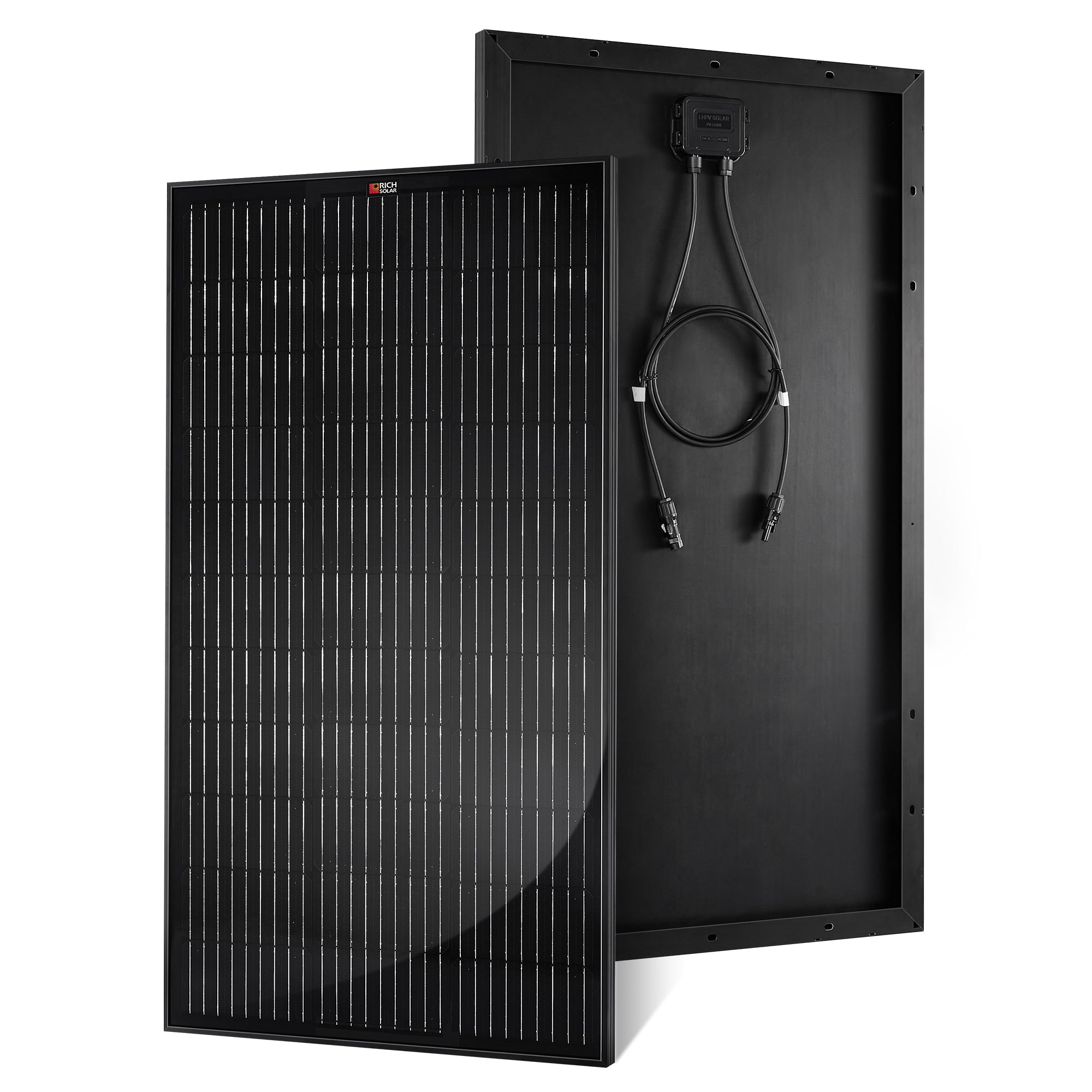

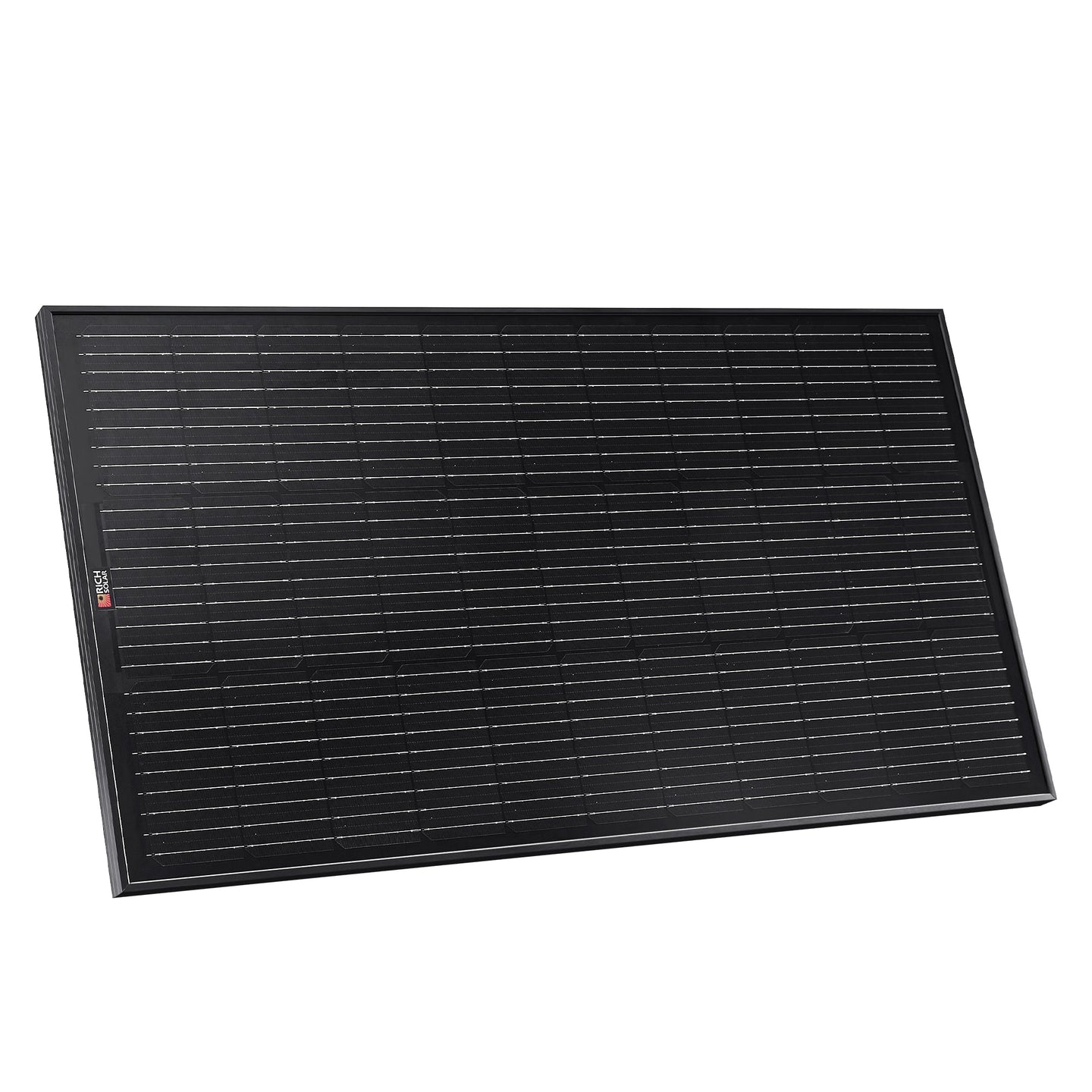

MEGA 100 ONYX | 100 Watt Solar Panel | Premier 12V Off-Grid Solar Panel for Vans, Campers, Boats | 25-Year Output Warranty

The MEGA 100 is the perfect option for any off-grid application. Ideal for anything from RVs to cabins and built to withstand the toughest climates, the MEGA 100 can handle whatever you throw at it.

Features

• 12V off-grid solar panel.
• 0~+5W guaranteed positive power output.
• IP67-rated.

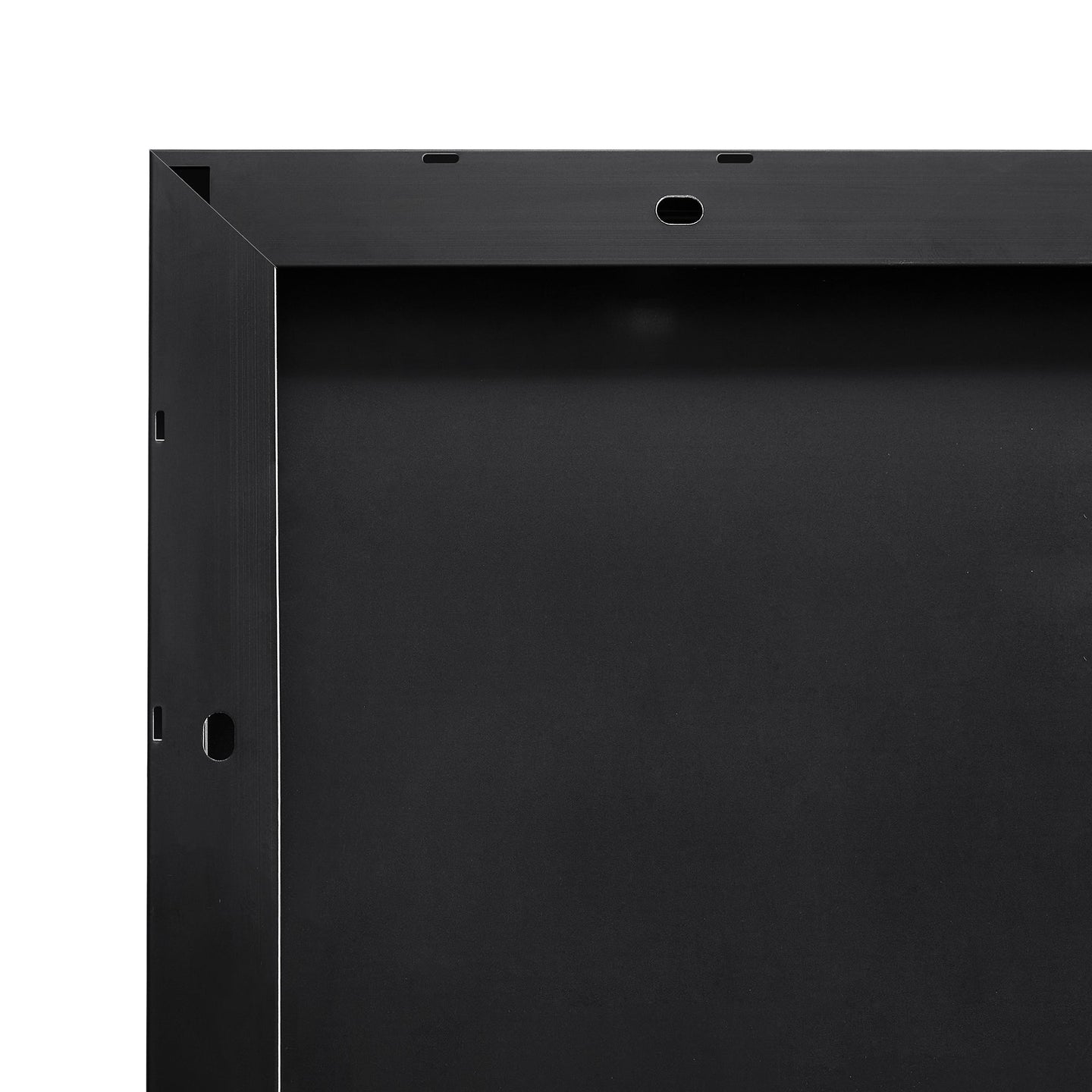

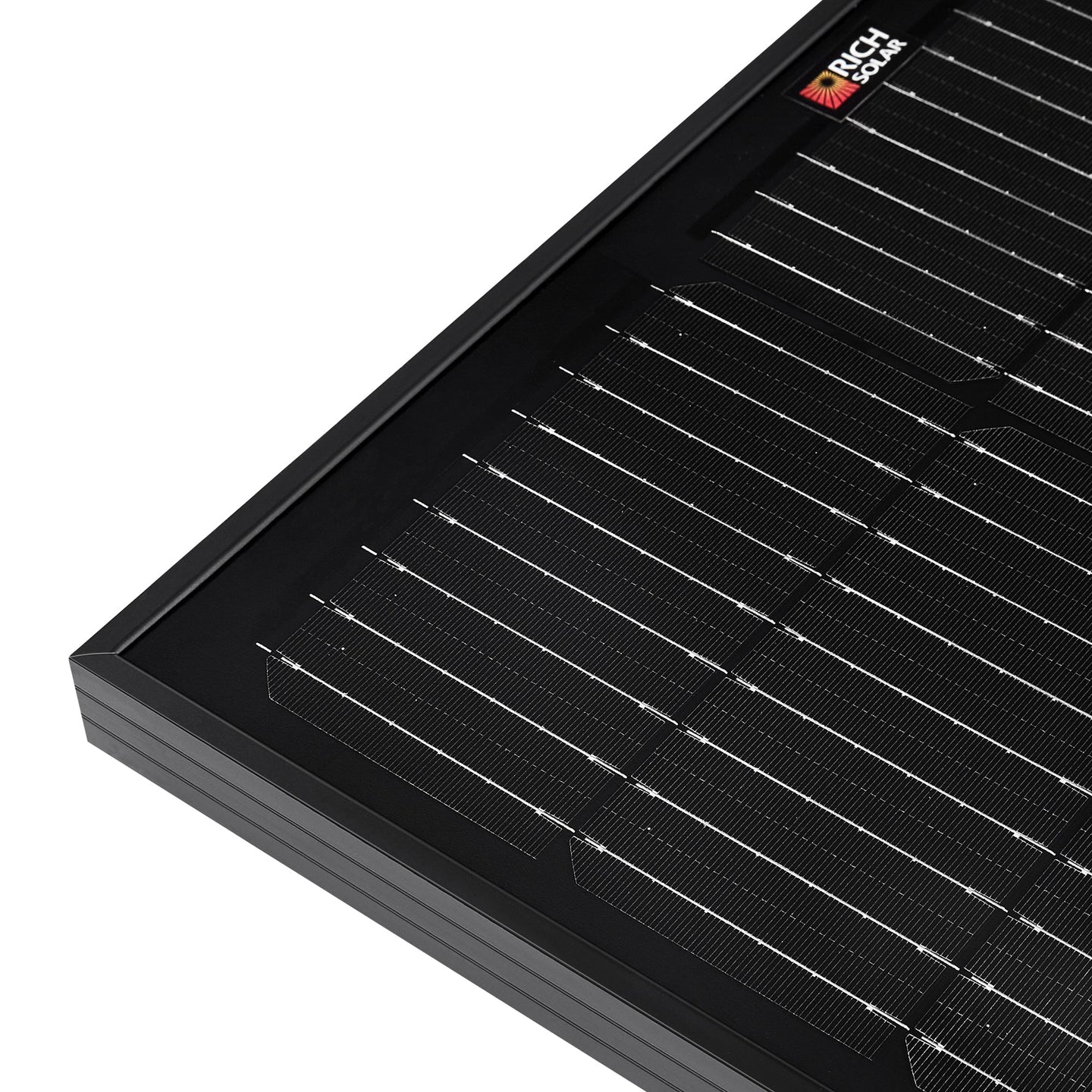

• Built with strong tempered glass and an aluminum frame.
• Certified to withstand challenging environmental conditions.
• Excellent low light performance on cloudy days, mornings, and evenings.

Installation

• Easy installation and handling for various applications.
• Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts and tilt mounts.
• Compatible with on-grid and off-grid inverters.

Warranty

• 25-year output warranty.
• 10-year workmanship warranty.

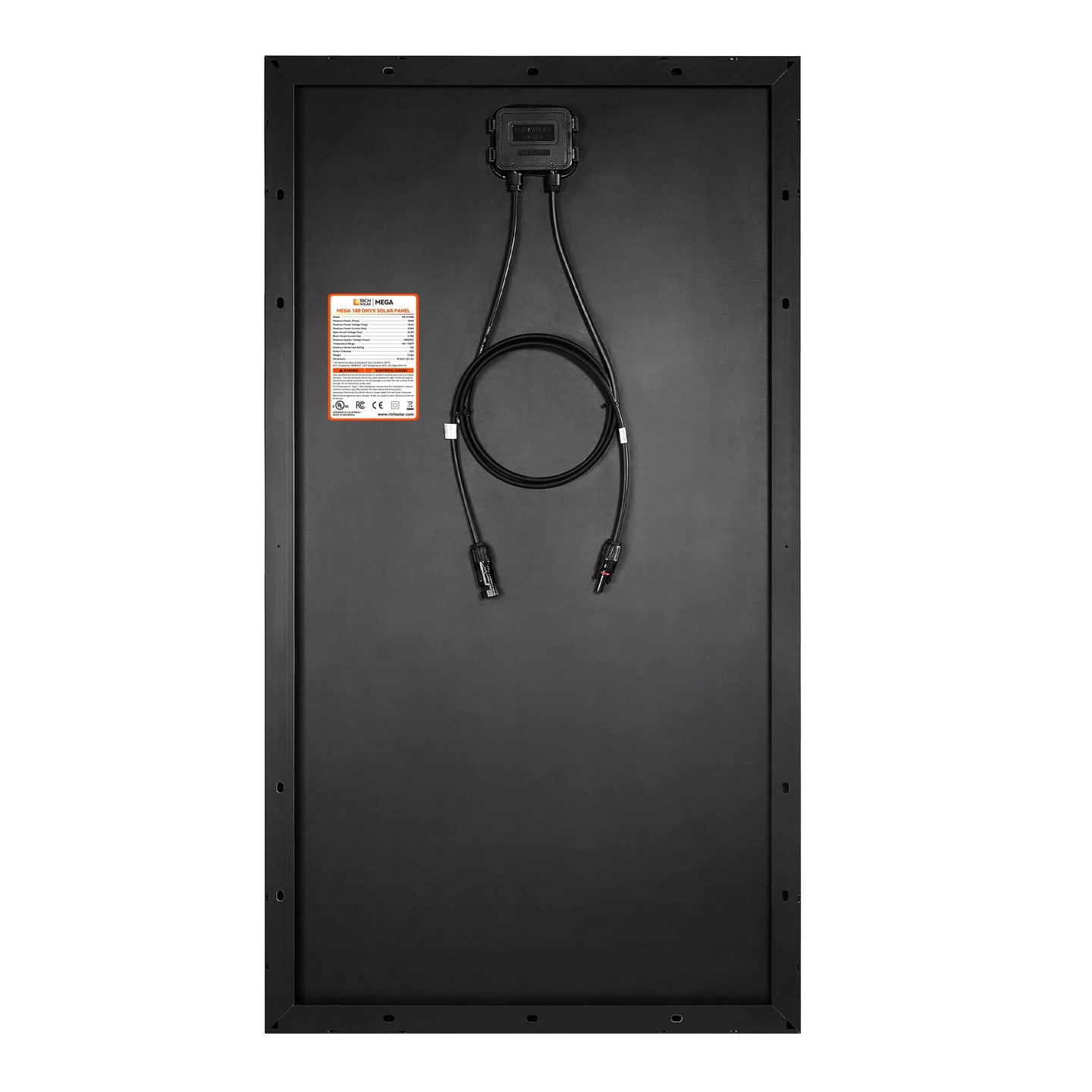

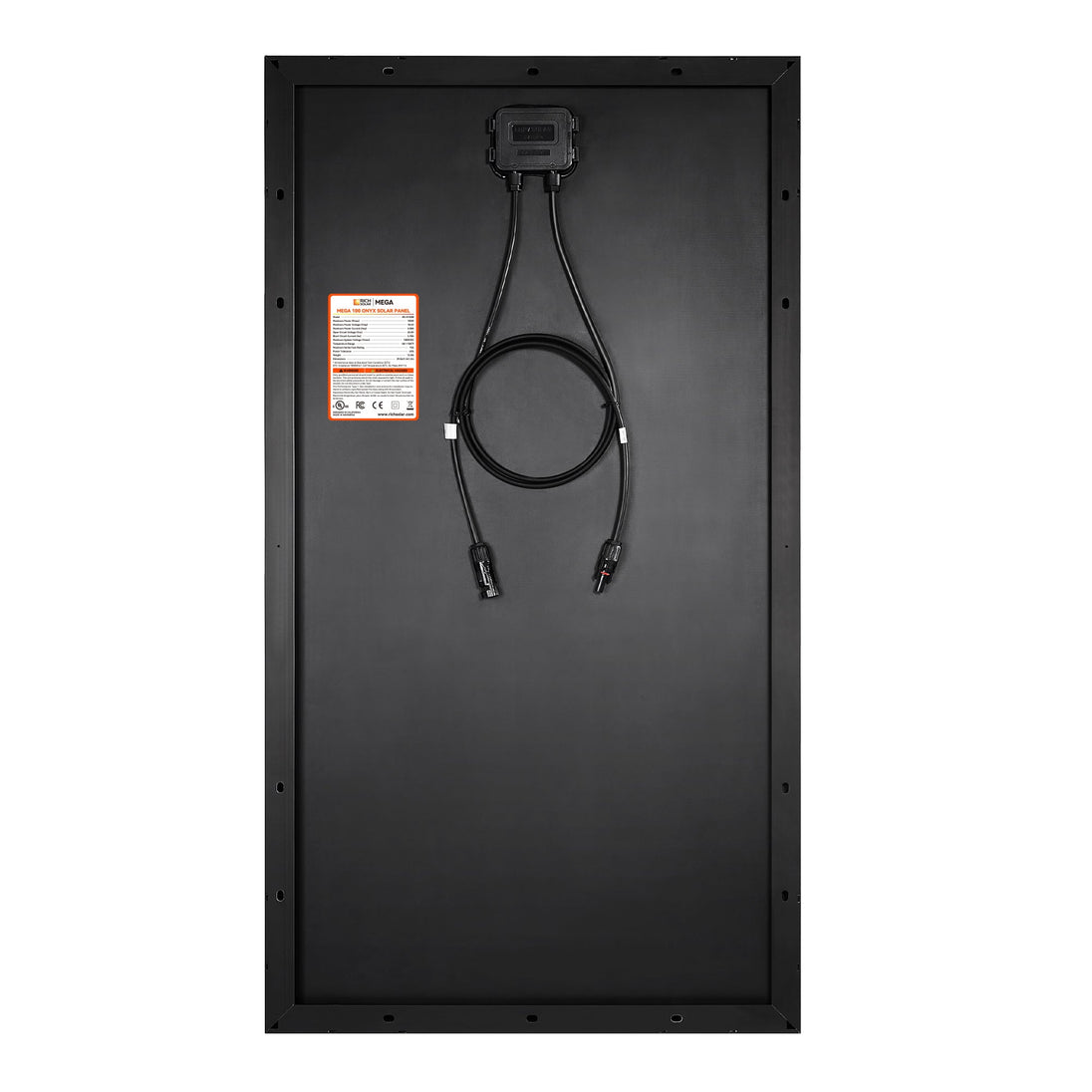

Built-in Components

• Panel Leads (Pair): 12AWG, 3FT each
• IP67-rated waterproof junction box
• IP67-rated waterproof solar connectors

Specifications

• Model: RS-M100B
• Maximum Power (Pmax): 100W
• Maximum Power Voltage (Vmp): 18.6V
• Maximum Power Current (Imp): 5.38A
• Open Circuit Voltage (Voc): 22.8V
• Short Circuit Current (Isc): 5.78A
• Maximum System Voltage (Vmax): 1000VDC
• Maximum Series Fuse Rating: 15A
• Weight: 13.2 lb

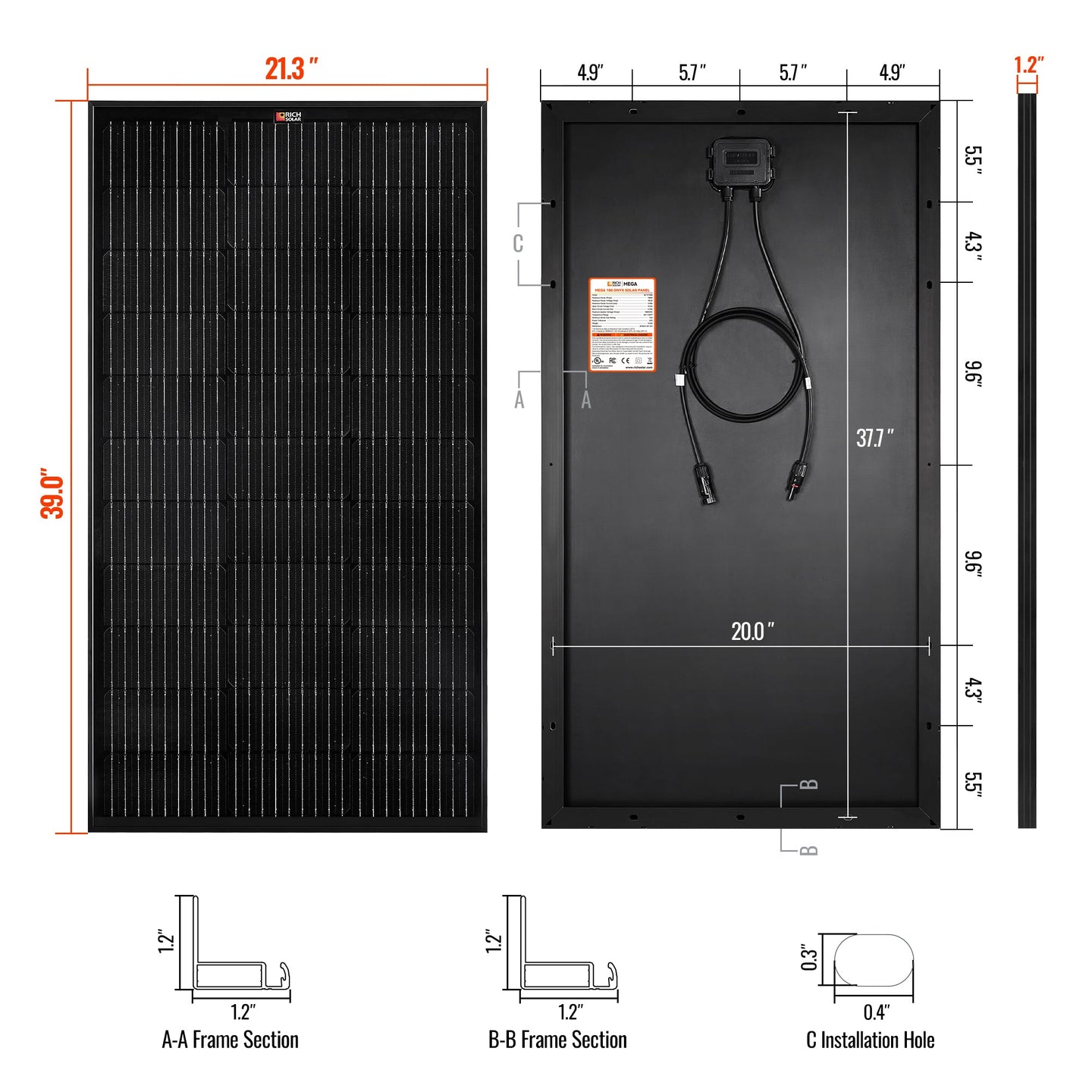

• Dimensions: 39.0 x 21.3 x 1.2 in
