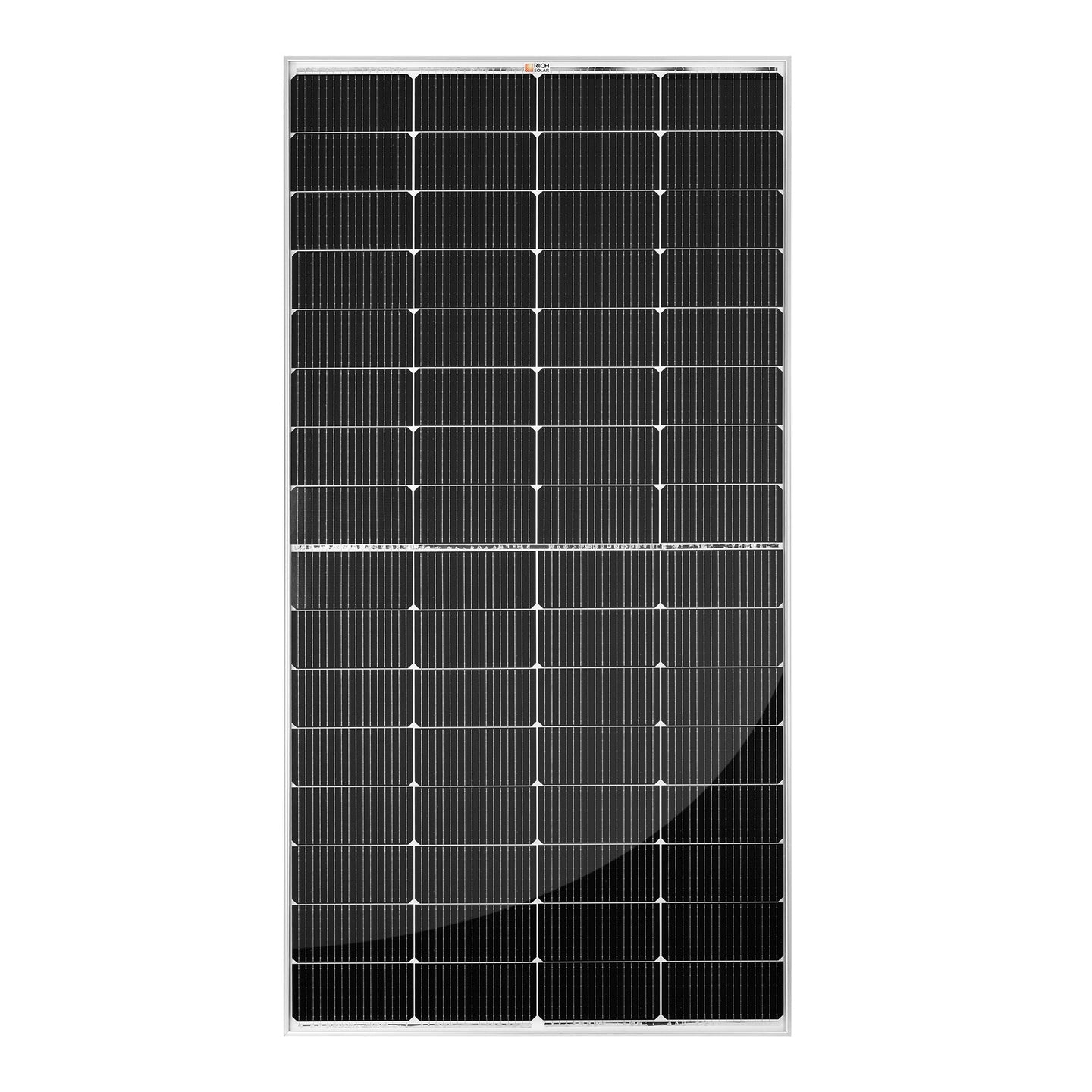

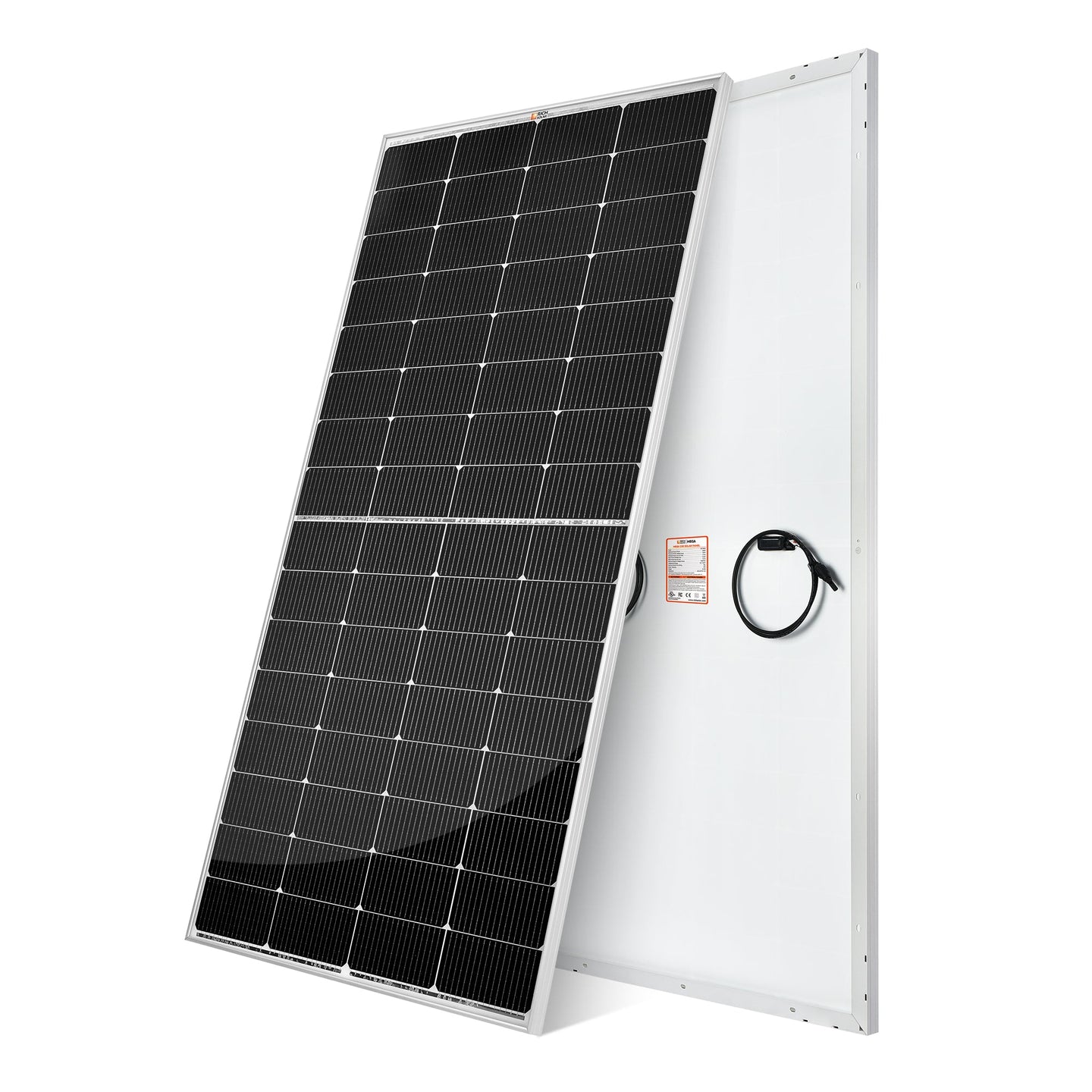

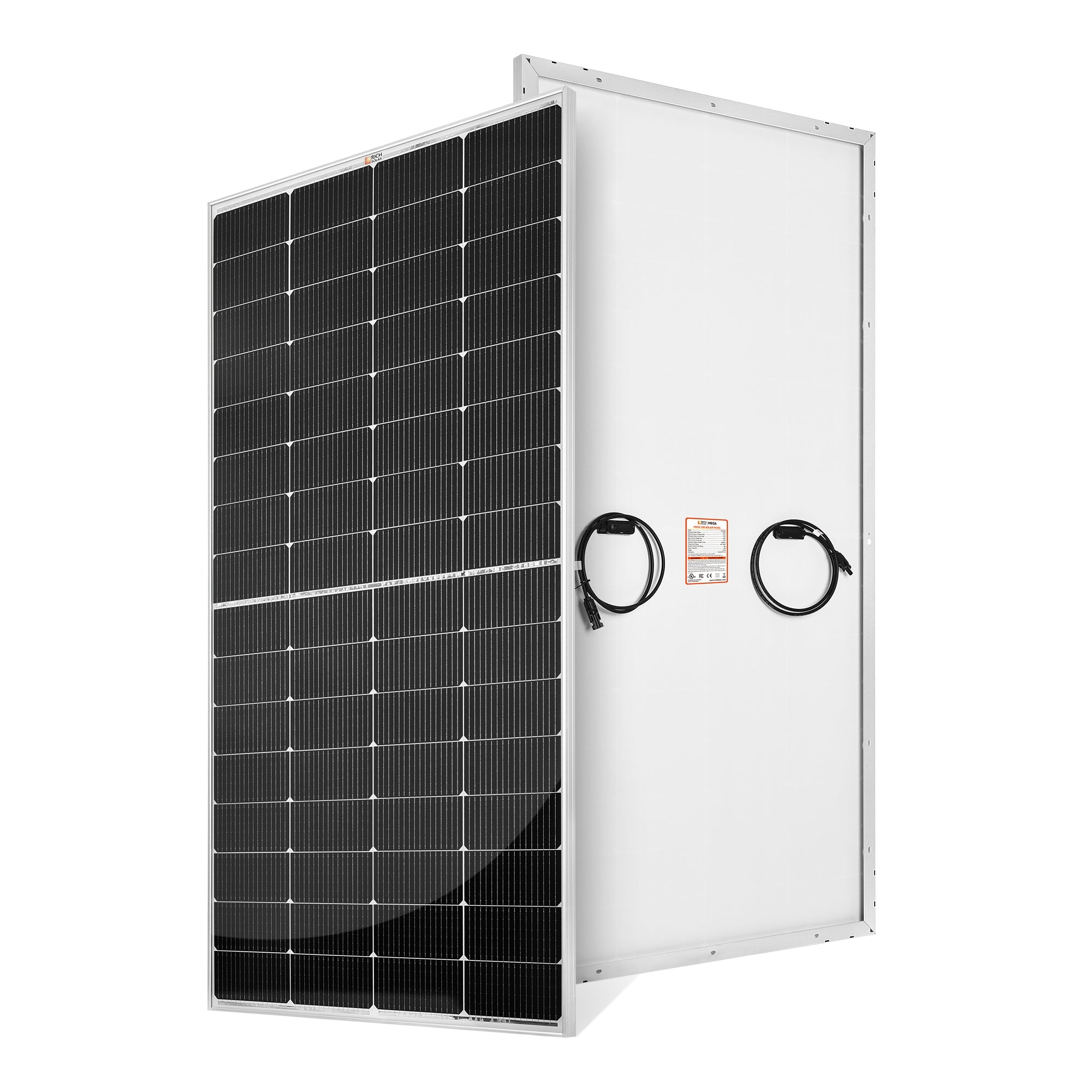

MEGA 250 | 250 Watt Solar Panel | Premier 12V Off-Grid Solar Panel for RVs, Vans, Boats | 25-Year Output Warranty

Features

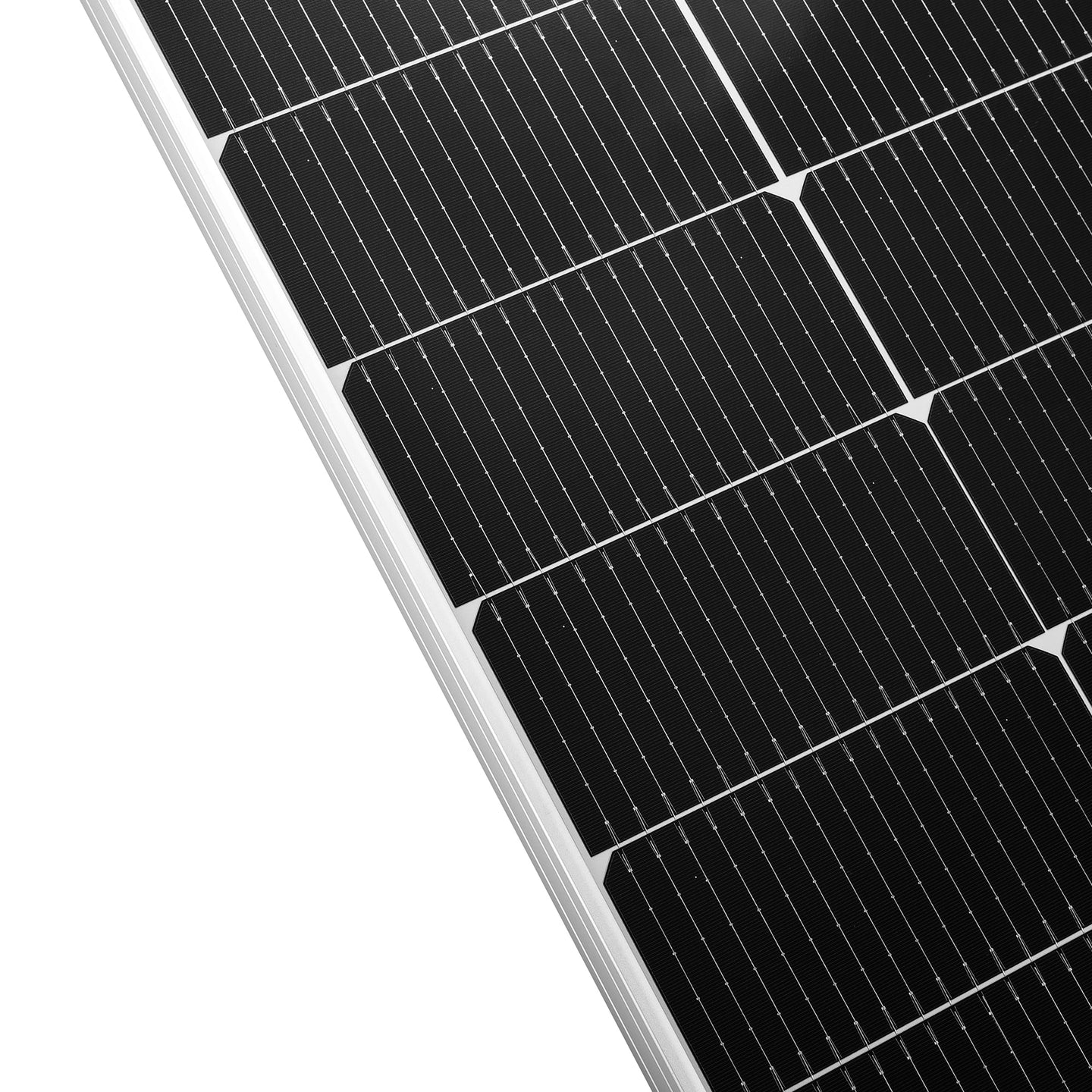

• 16-busbar solar cell configuration

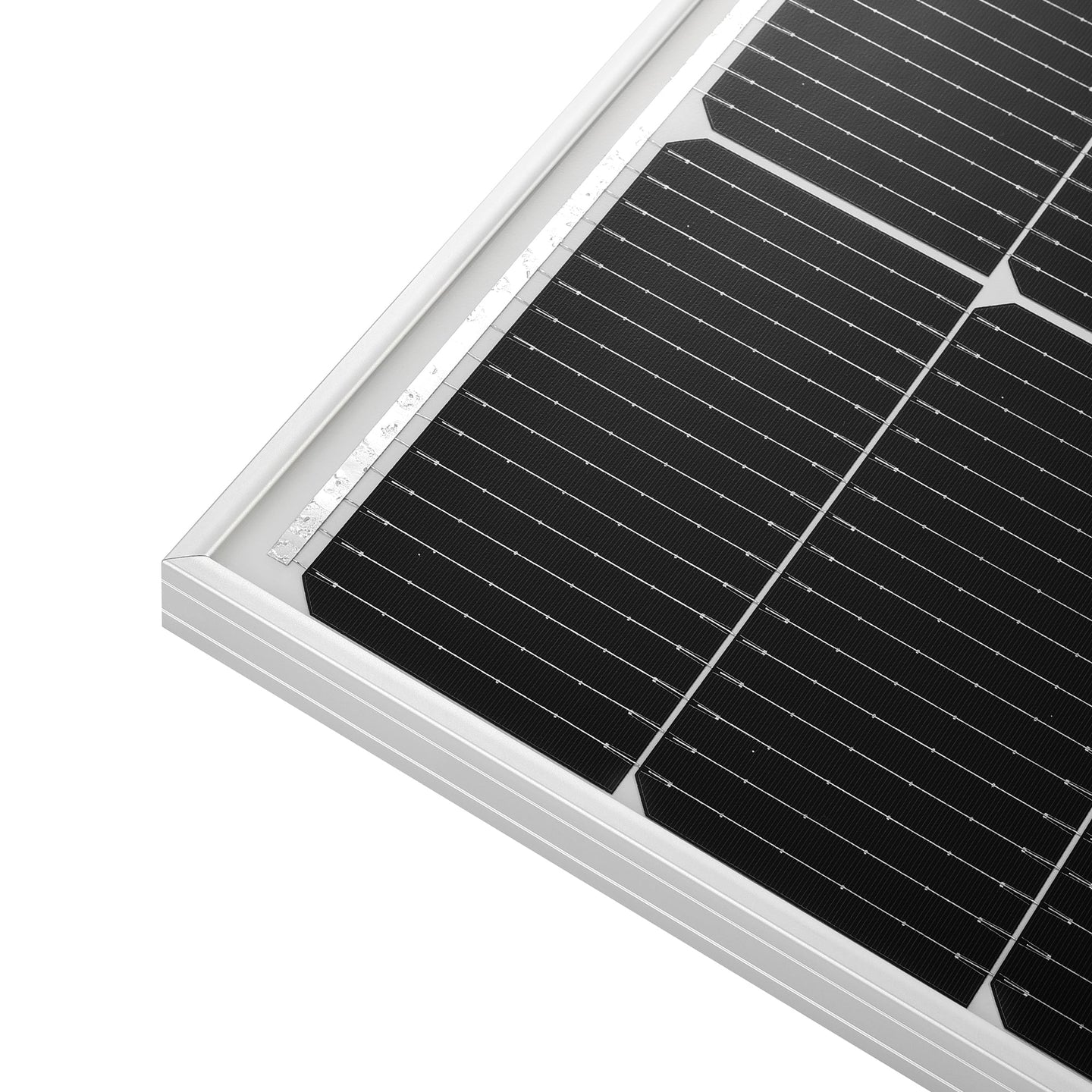

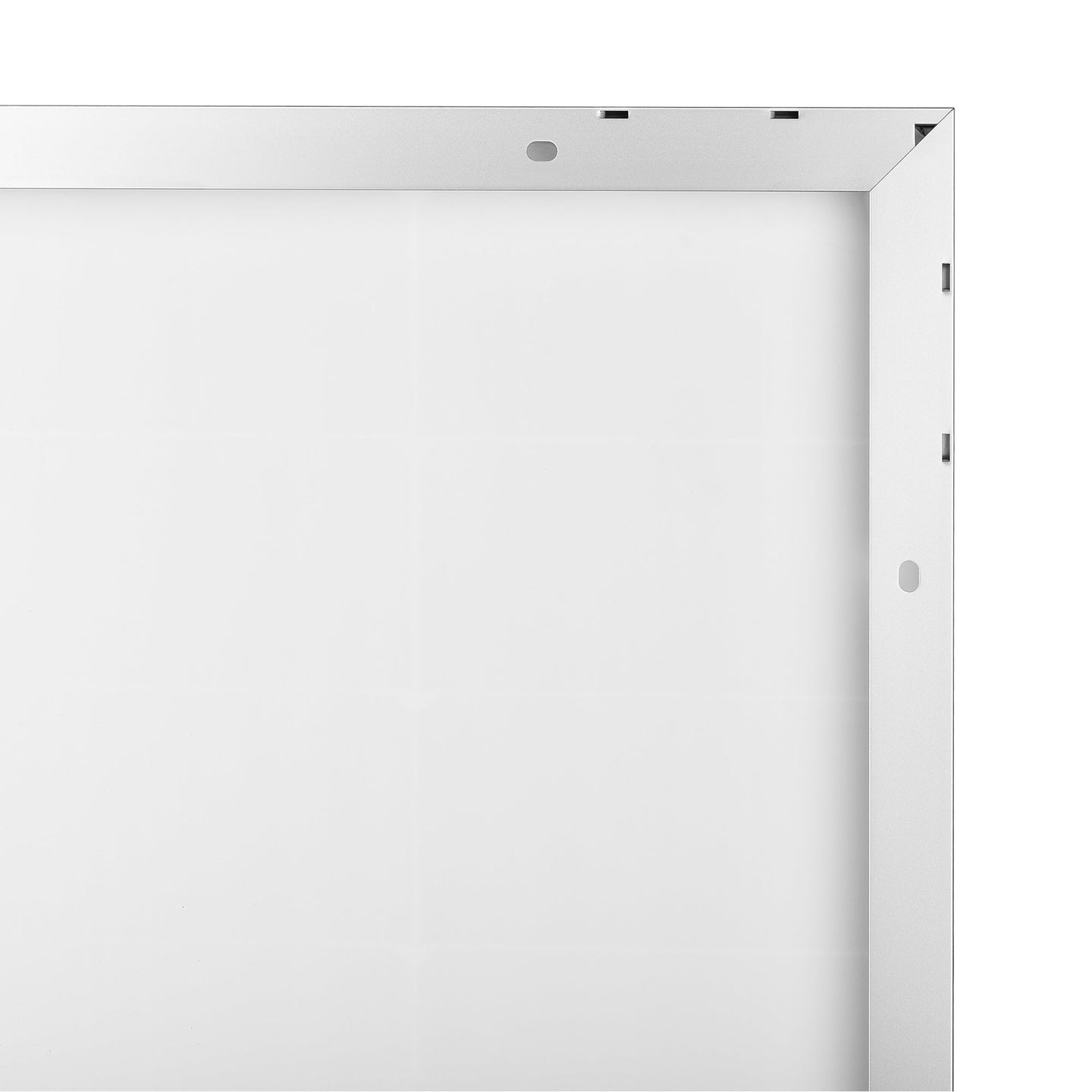

• Lightweight anodized aluminum frame
• High Transmission, AR (anti-reflective) Coated Tempered Glass
• Plug and play junction box
• Industry standard quick-connect cables work in series or parallel
• Certified to withstand challenging environmental conditions
• Excellent low-light performance on cloudy days, mornings and evenings

Installation

• Easy installation and handling for various applications (high-end off-grid and mobile applications)

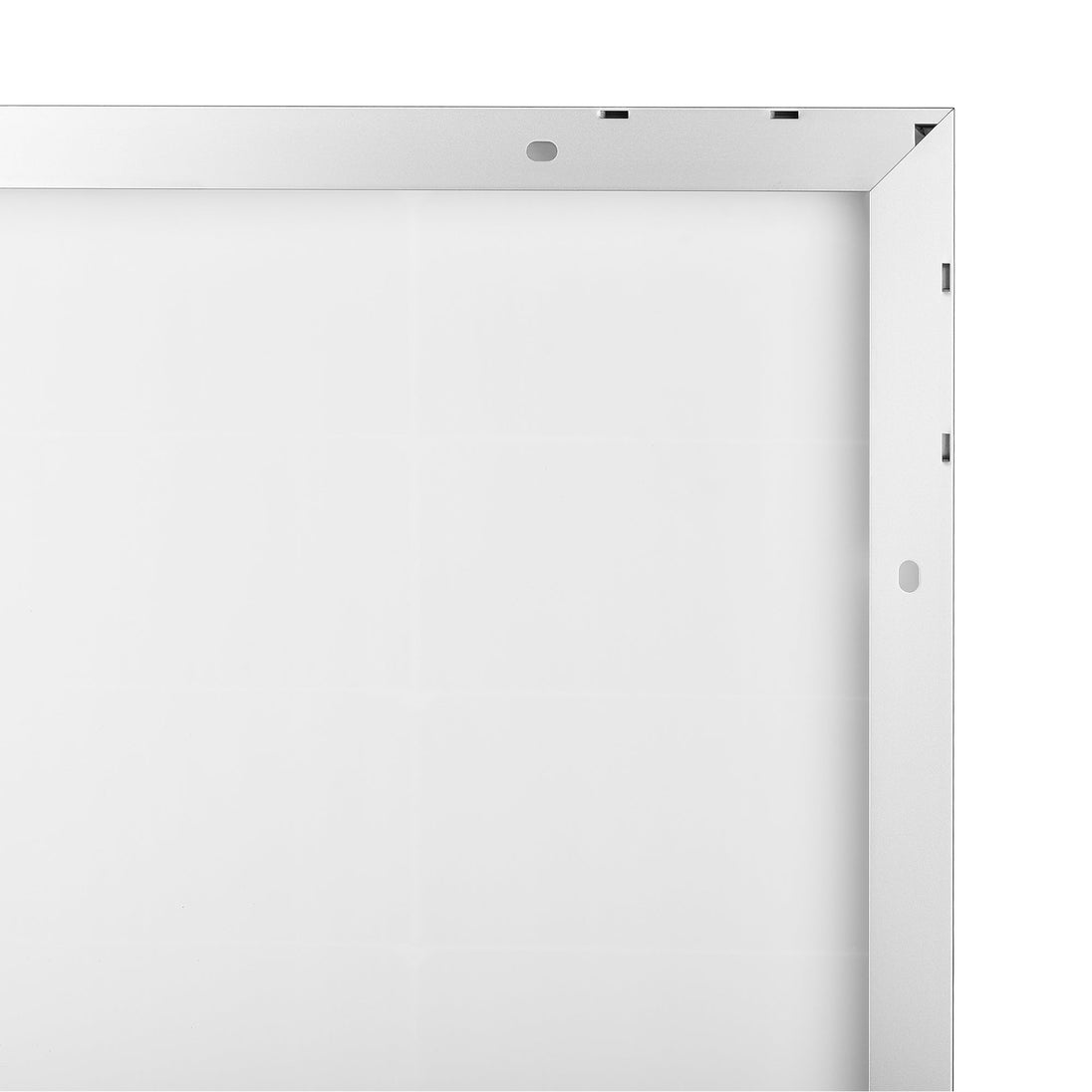

• Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
• Compatible with on-grid and off-grid inverters


Warranty

• 25-year output warranty
• 10-year workmanship warranty

Built-in Components

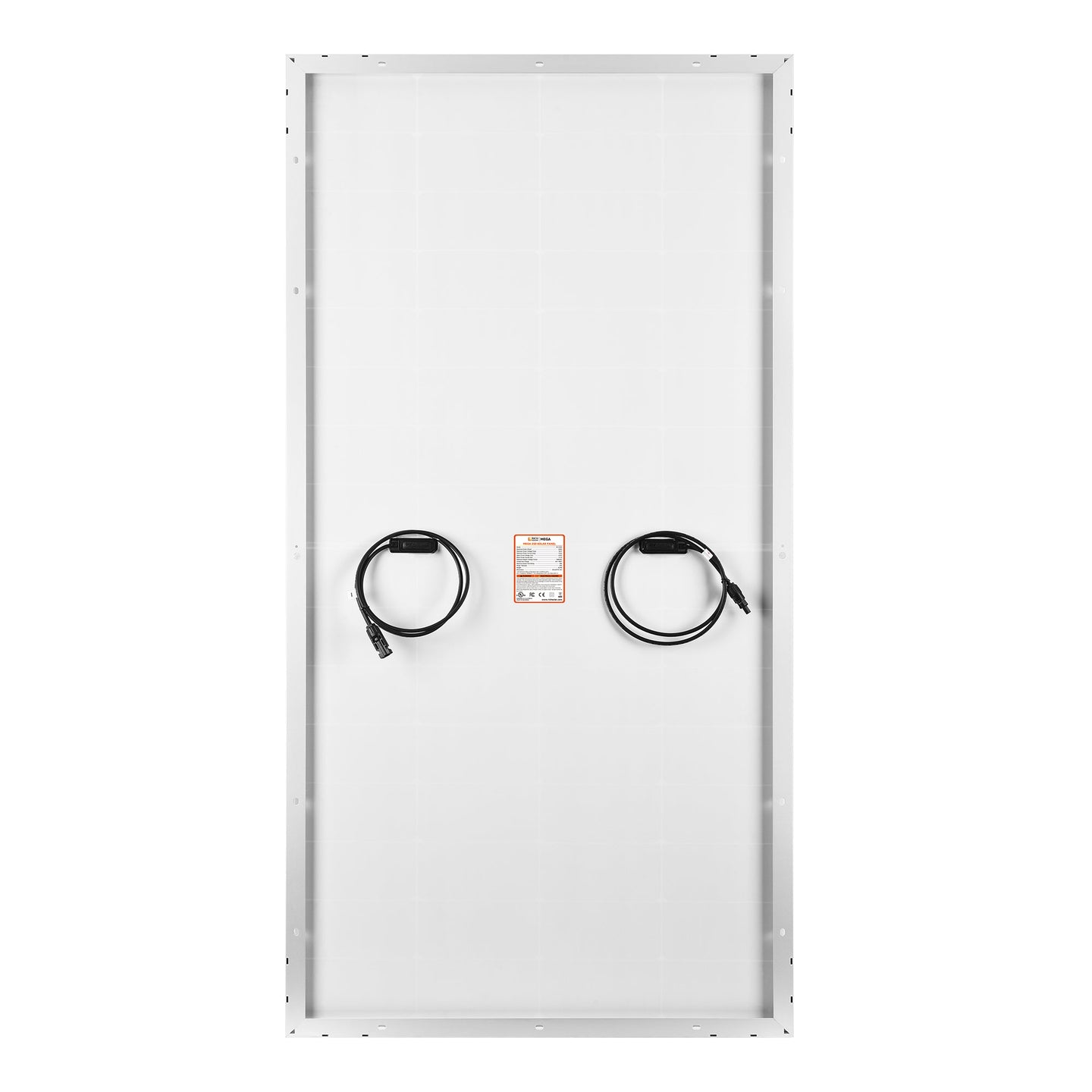

• Panel leads (pair): 3 feet each

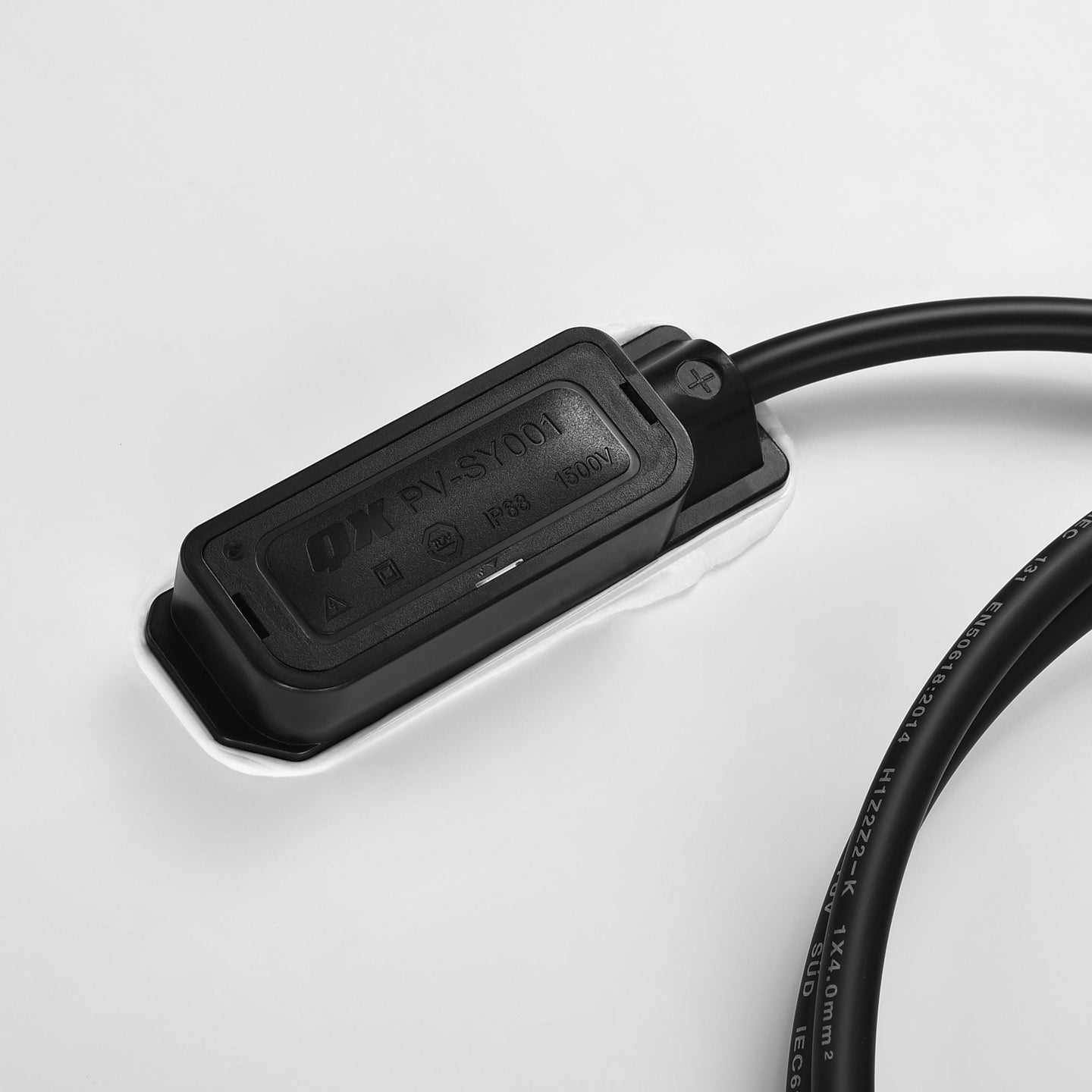

• IP67-rated waterproof junction box
• IP67-rated waterproof solar connectors
• Bypass diodes built into the junction box

Specifications

• Model: RS-M250
• Maximum Power (Pmax): 250W
• Maximum Power Voltage (Vmp): 18.9V
• Maximum Power Current (Imp): 13.2A
• Open Circuit Voltage (Voc): 22.8V
• Short Circuit Current (Isc): 13.7A
• Maximum System Voltage (Vmax): 1500VDC
• Temperature Range: -40 ~ +185℉
• Weight: 26.9 lb

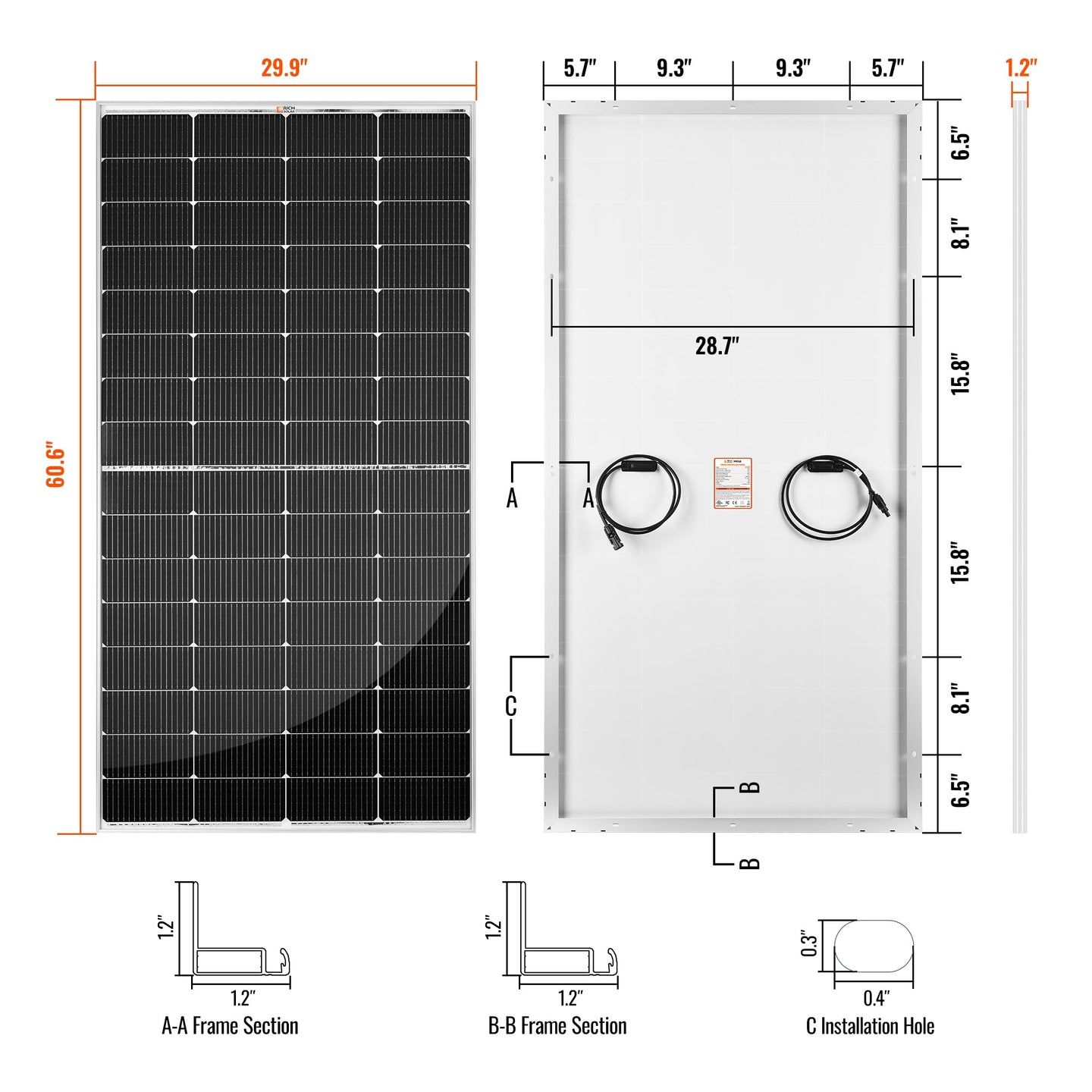

• Dimensions: 60.6 x 29.9 x 1.2 in
