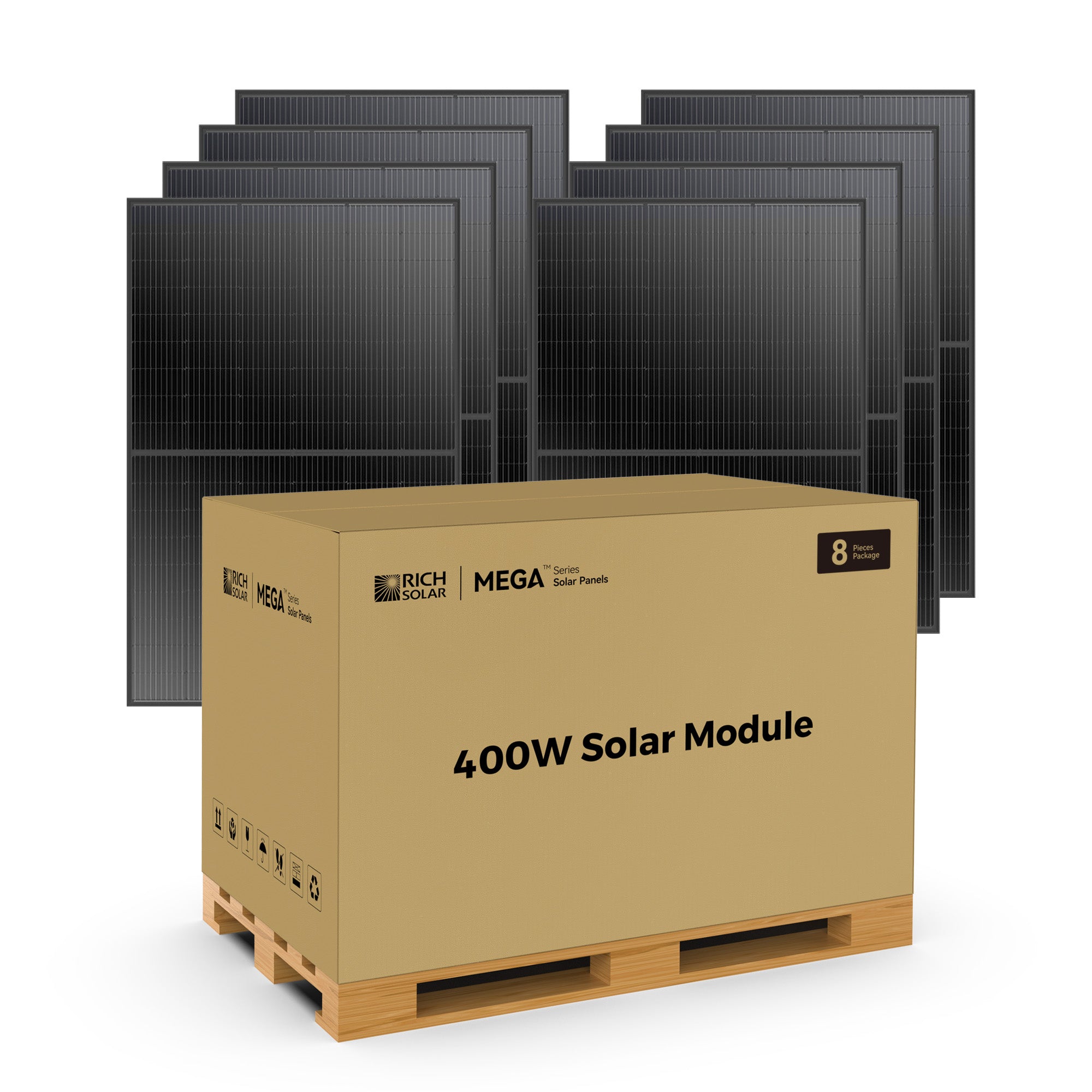

MEGA 400 | 400 Watt Solar Panel | Premium Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture | 25-Year Output Warranty

NOTICE: The new 400w panels have the following dimensions: 67.8 x 44.7 x 1.2 in
For any other quantities, please call our sales team at 1-800-831-9889 or email at sales@richsolar.com.

Features

• 10-busbar solar cell configuration
• Mono PERC Technology
• Lightweight anodized aluminum frame
• High-transmission, AR (anti-reflective) Coated Tempered Glass
• Plug-and-play junction box
• Industry-standard quick-connect cables work in series or parallel
• Certified to withstand challenging environmental conditions
• Excellent low-light performance on cloudy days, mornings, and evenings

Installation

• Easy installation and handling for various applications (high-end off-grid and mobile applications)
• Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
• Compatible with on-grid and off-grid inverters

Warranty

• 25-year limited power output warranty
• 10-year workmanship warranty

Specifications

• Panel Cable Length: ≈ 47 in
• Material: Tempered Glass, Aluminum, Monocrystalline Silicon
• Dimensions: 67.8 x 44.7 x 1.2 in
• Weight: 45.2 lbs
• Maximum Power (PMAX): 400W
• Maximum Power Voltage (VMP): 31.0V
• Maximum Power Current (IMP): 12.9A
• Open Circuit Voltage (VOC): 37.1V
• Short Circuit Current (ISC): 13.7A
• Maximum System Voltage (VMAX): 1500VDC
• Temperature Range: -40 ~ +185°F
• Maximum Series Fuse Rating: 25A
