RICH SOLAR

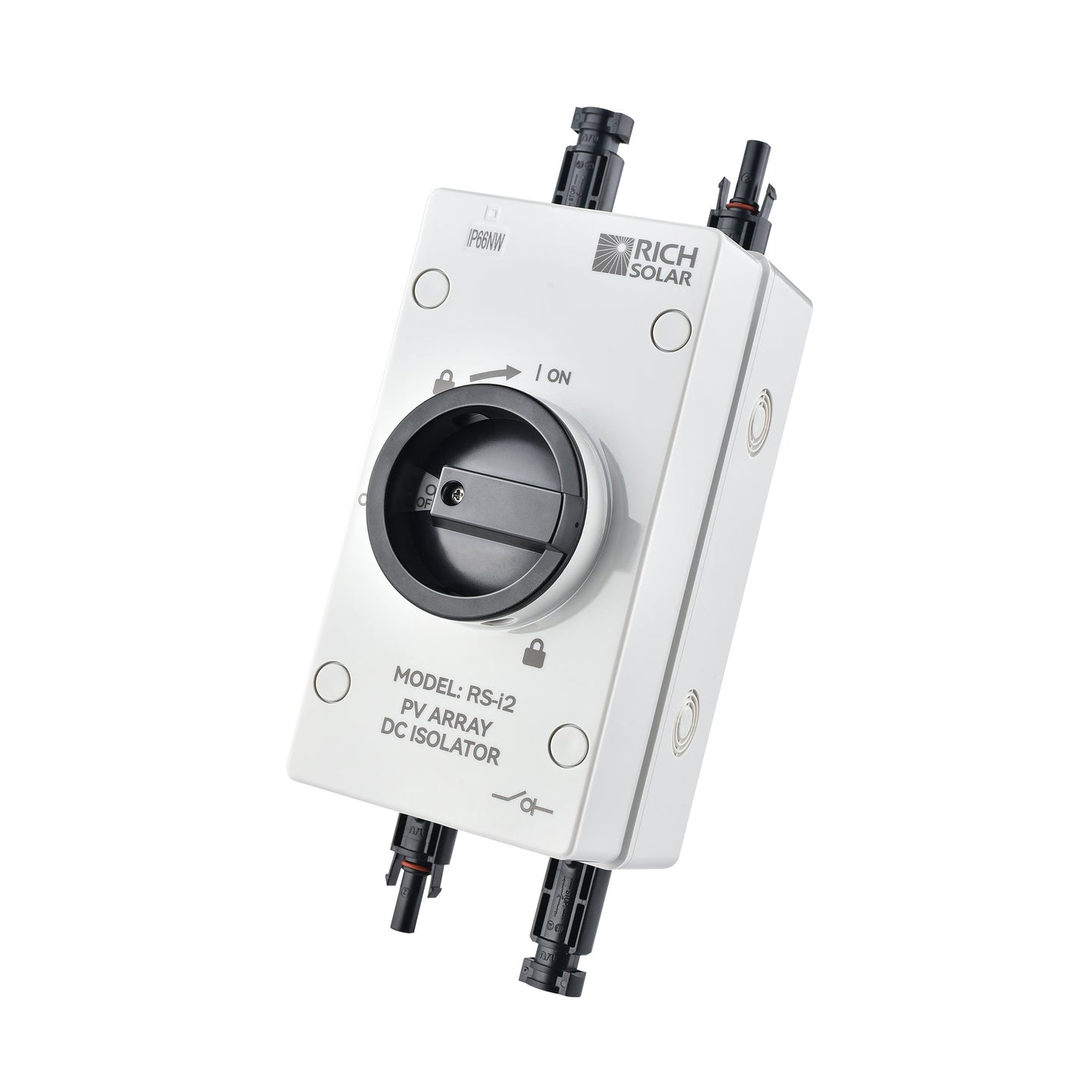

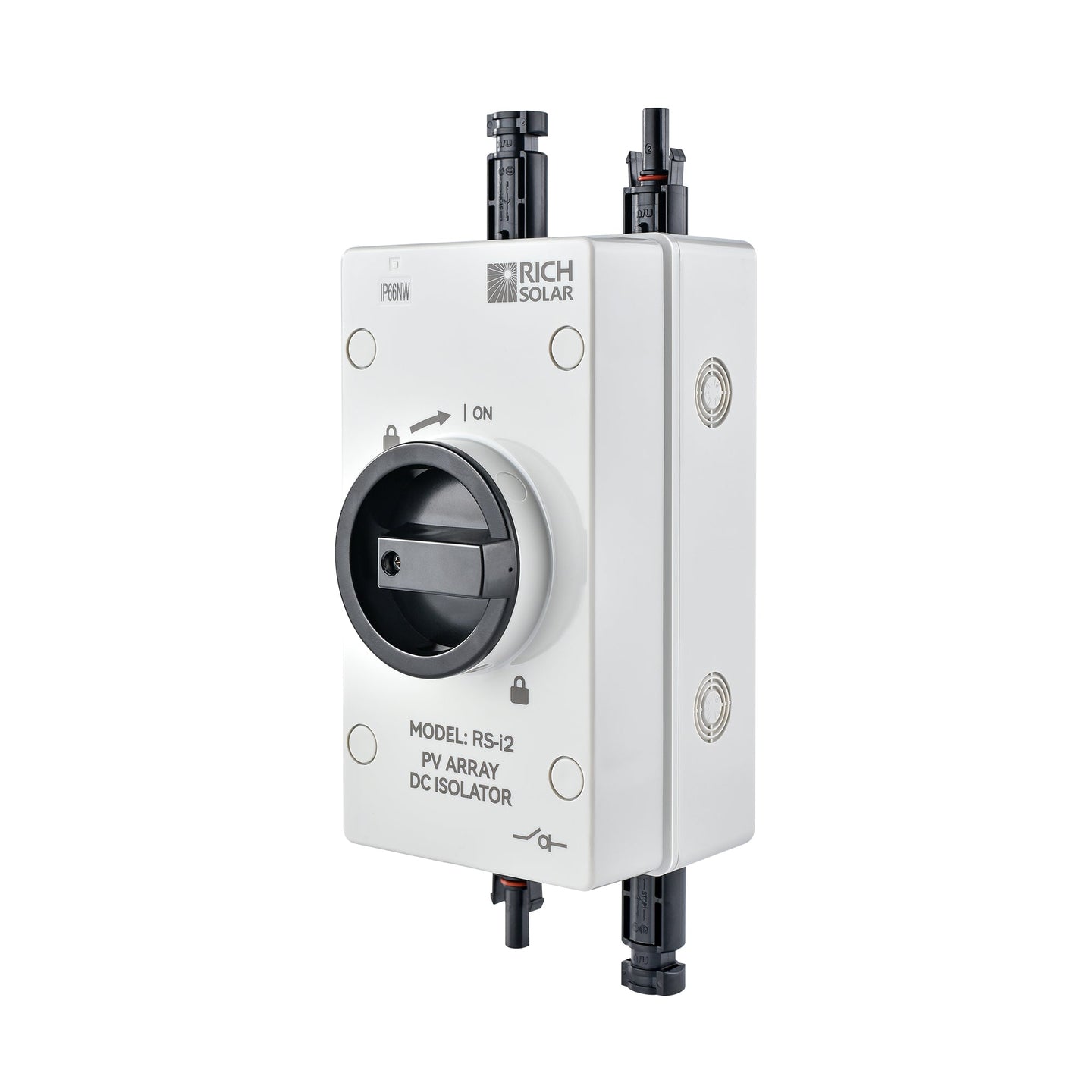

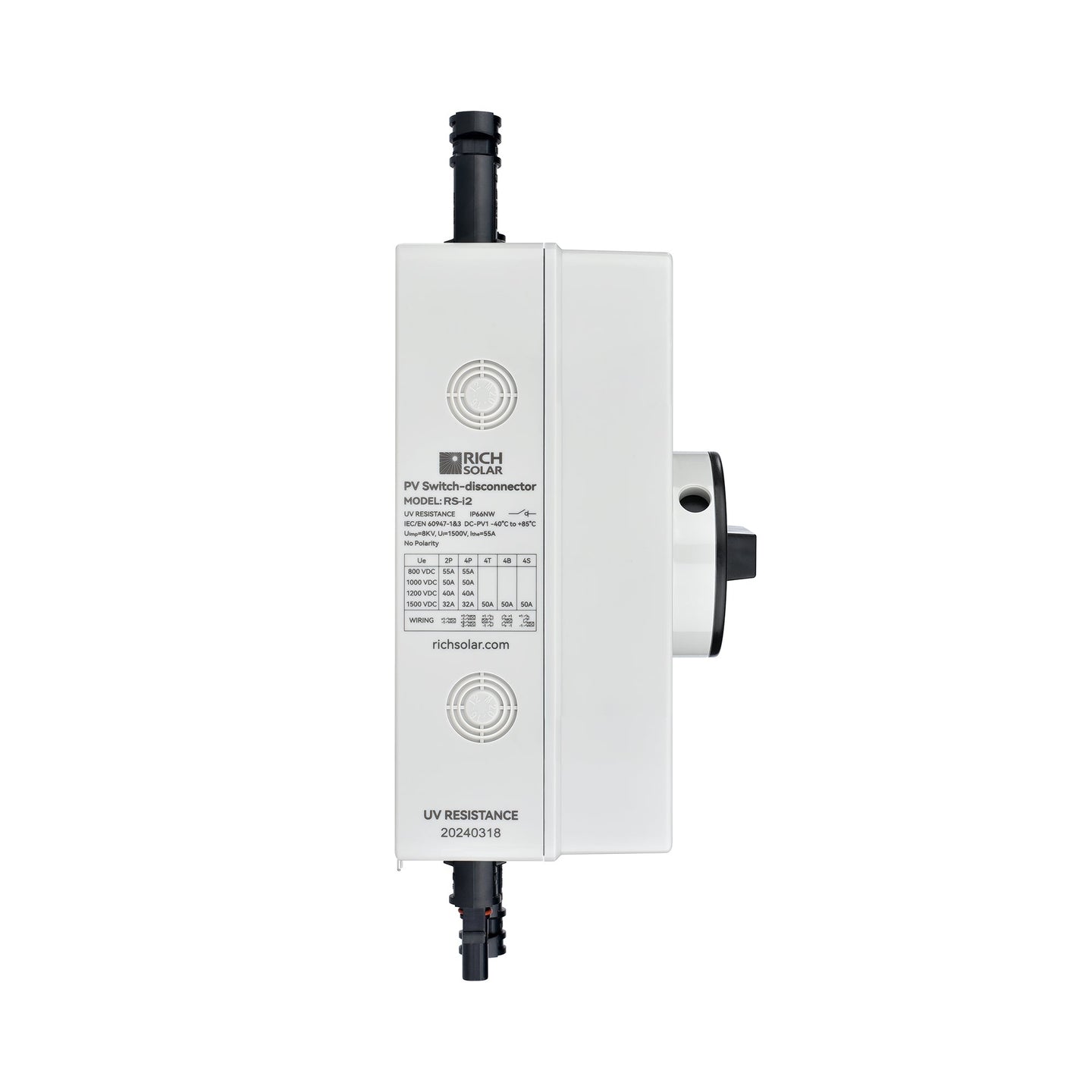

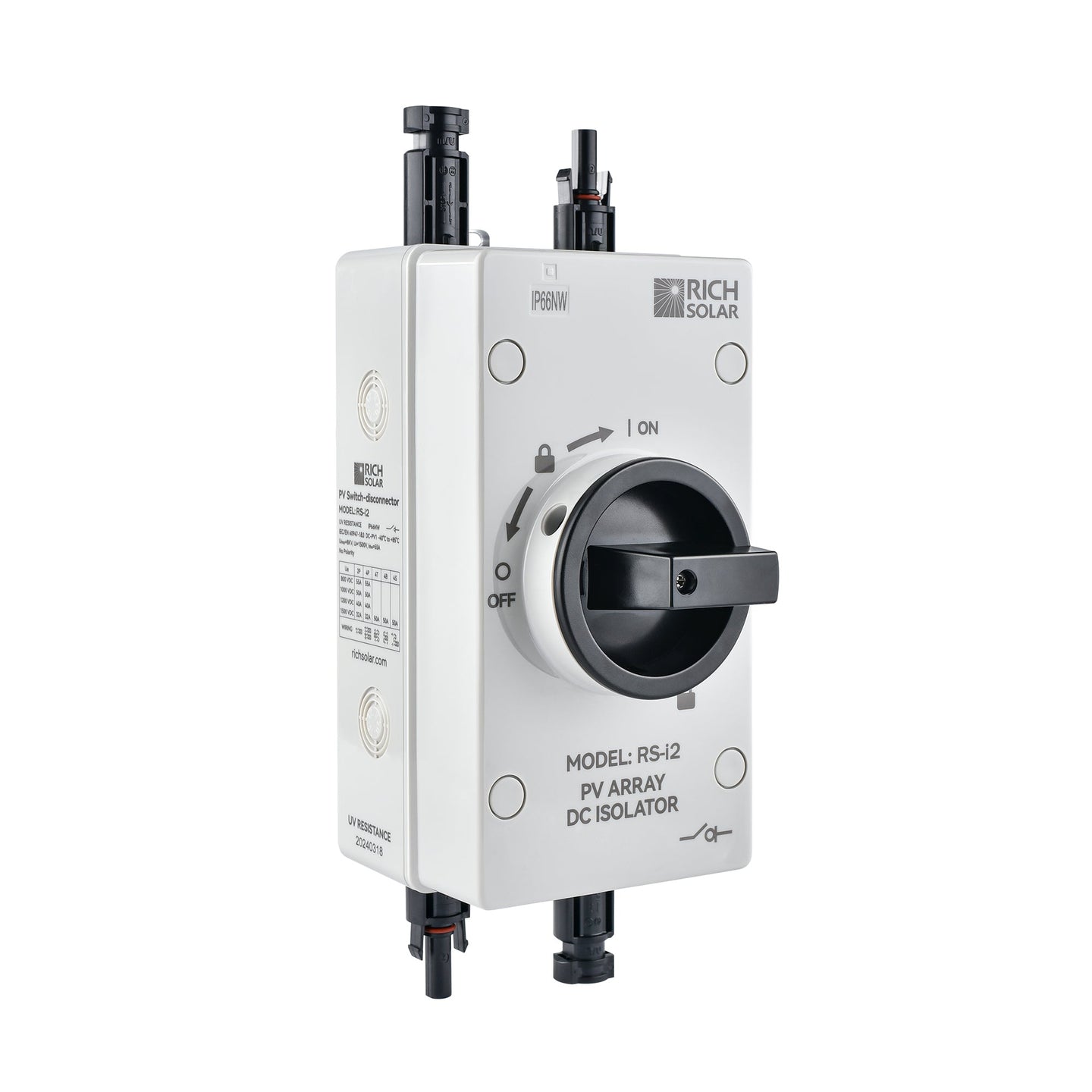

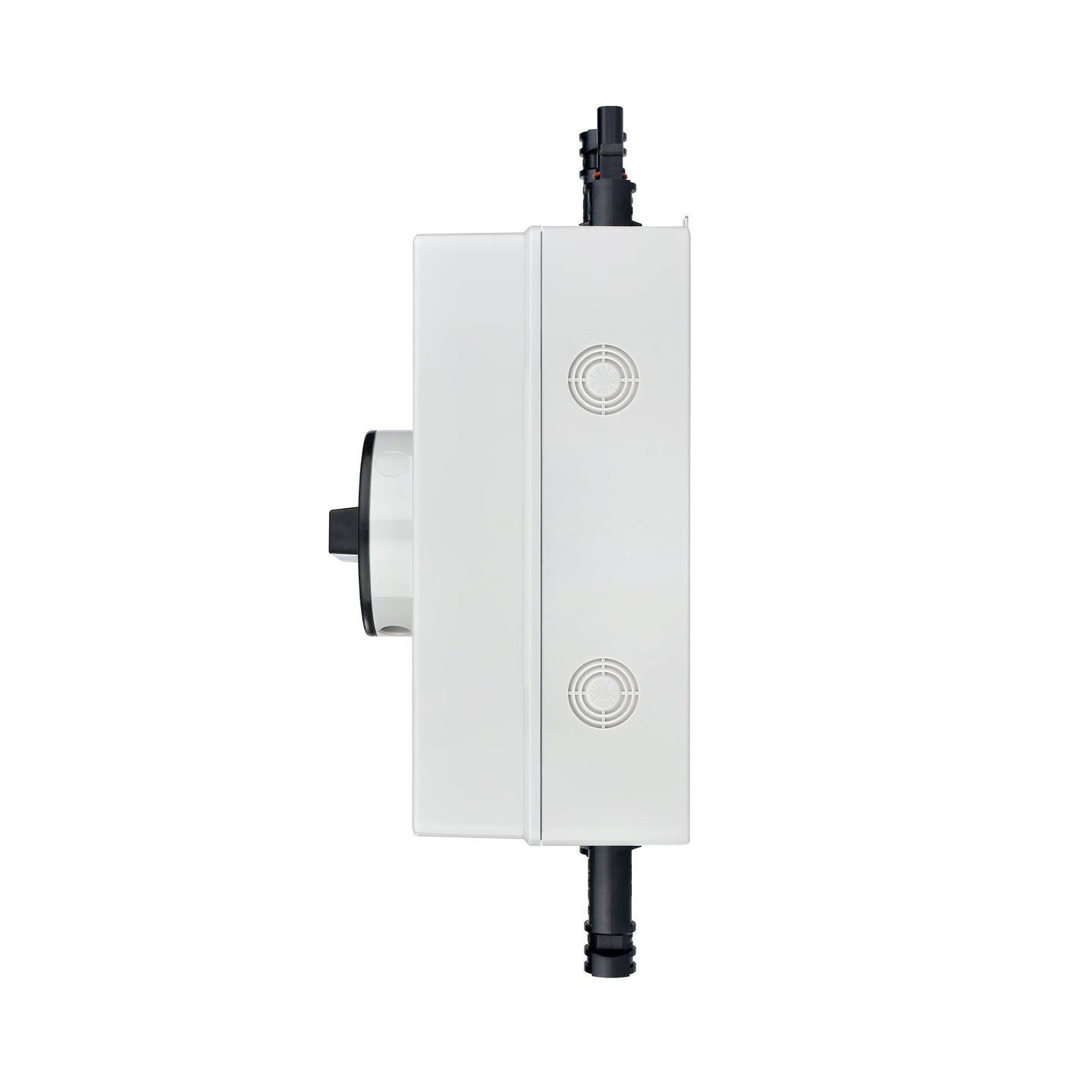

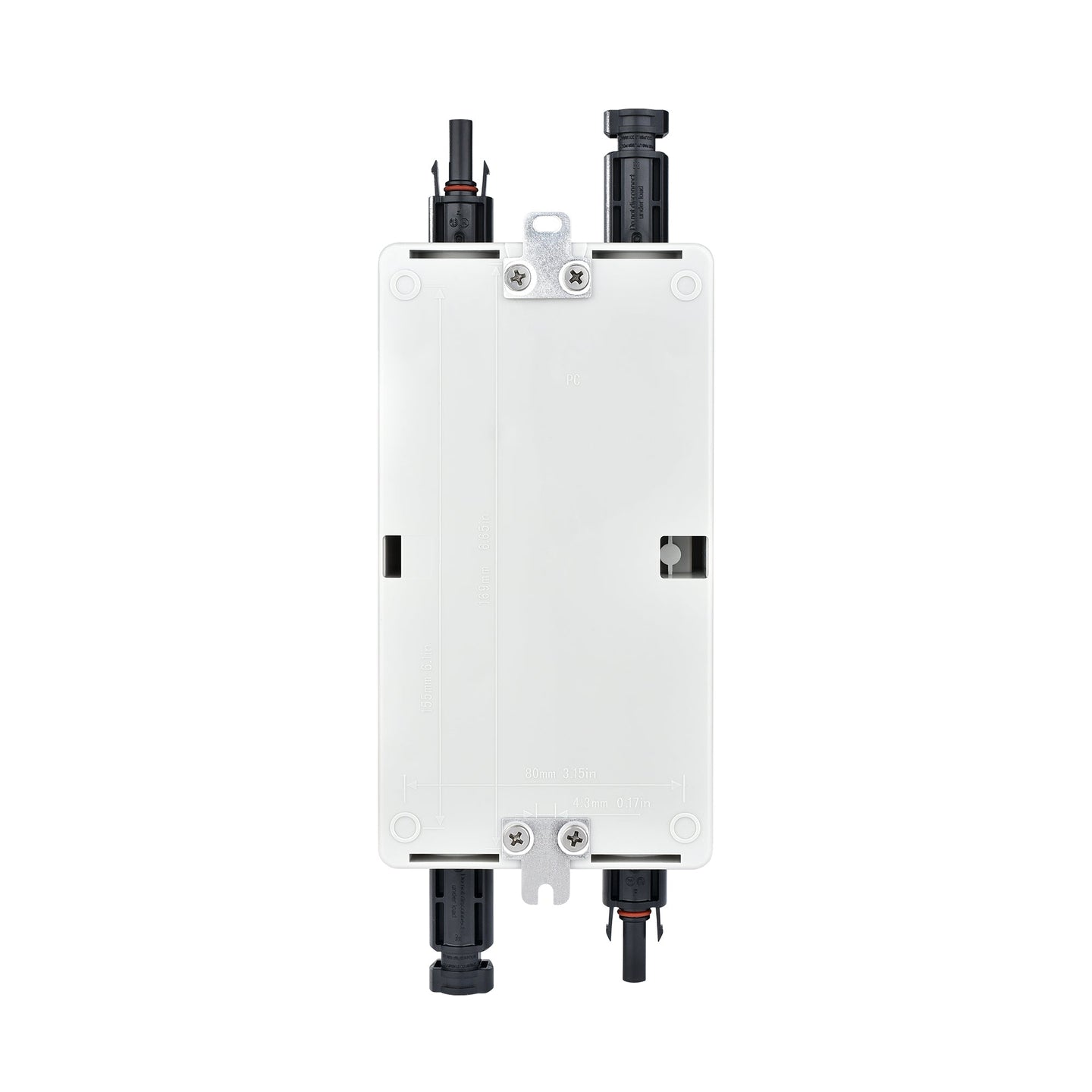

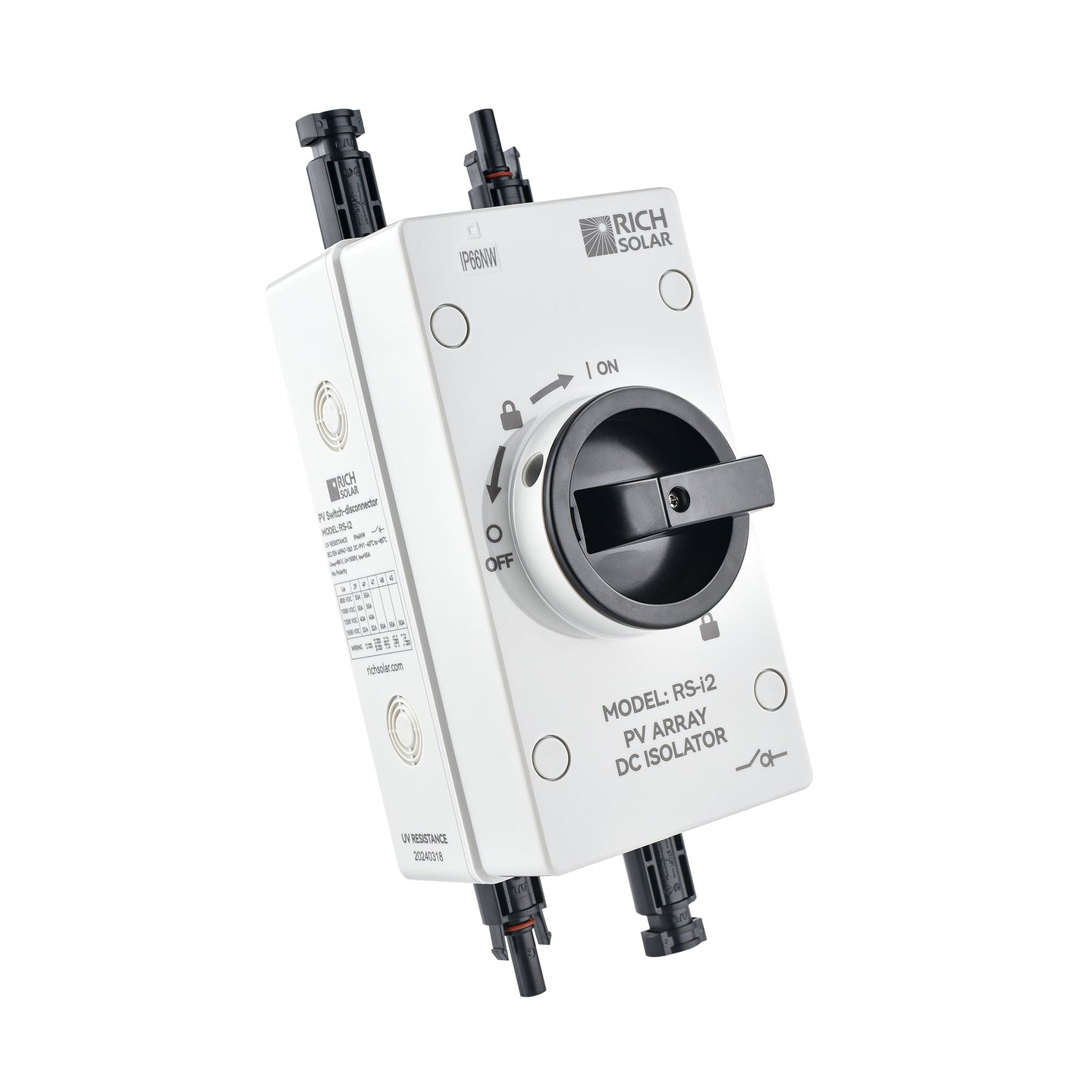

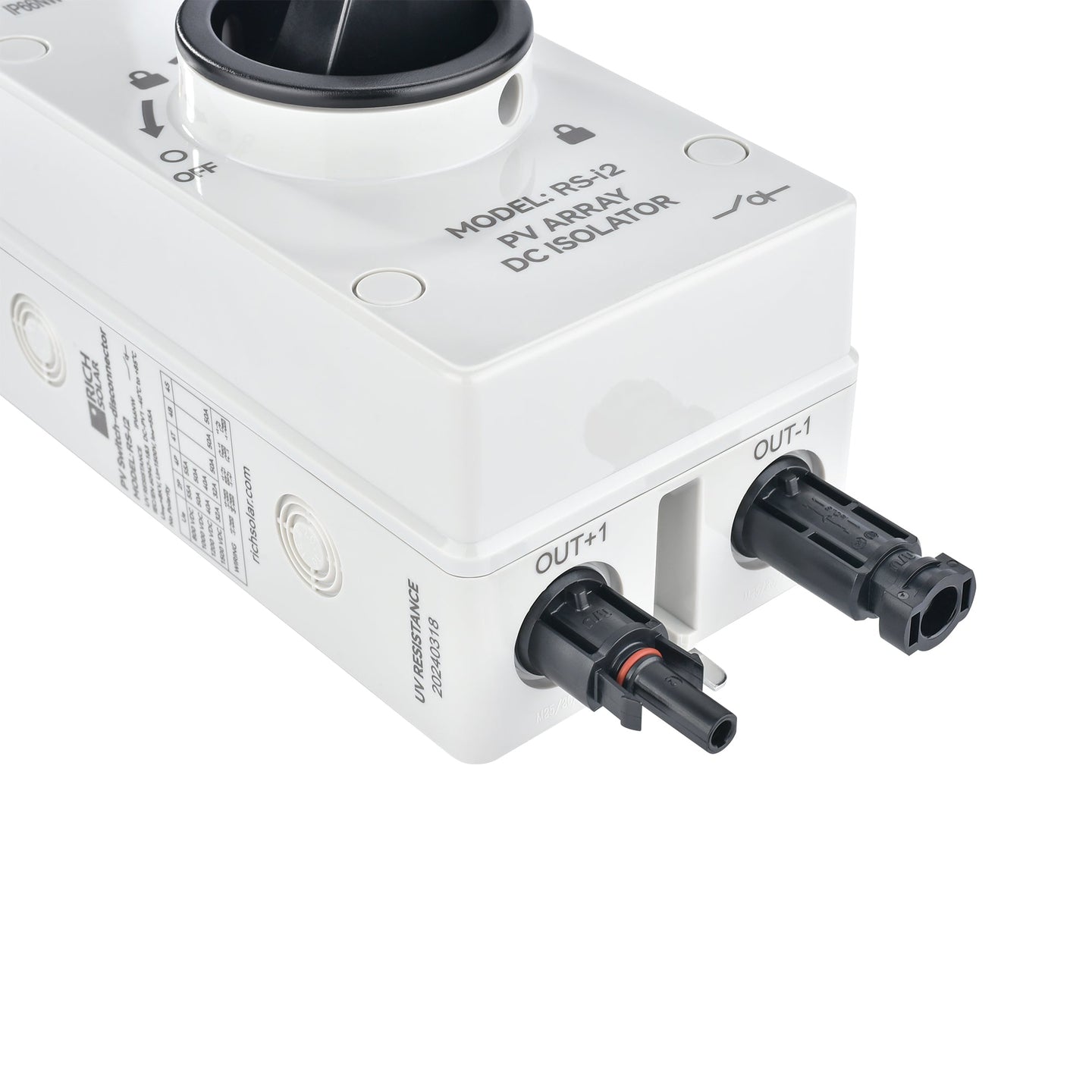

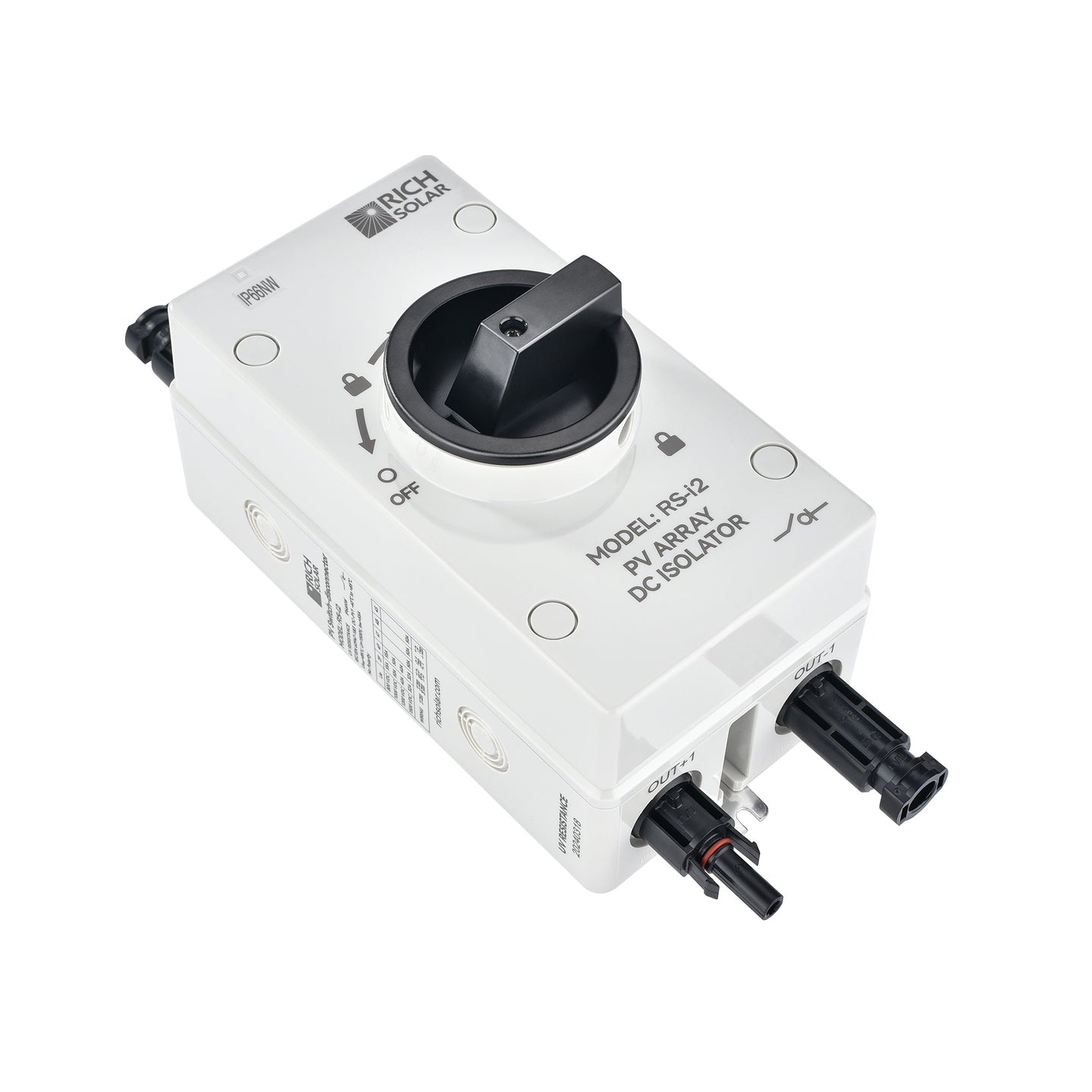

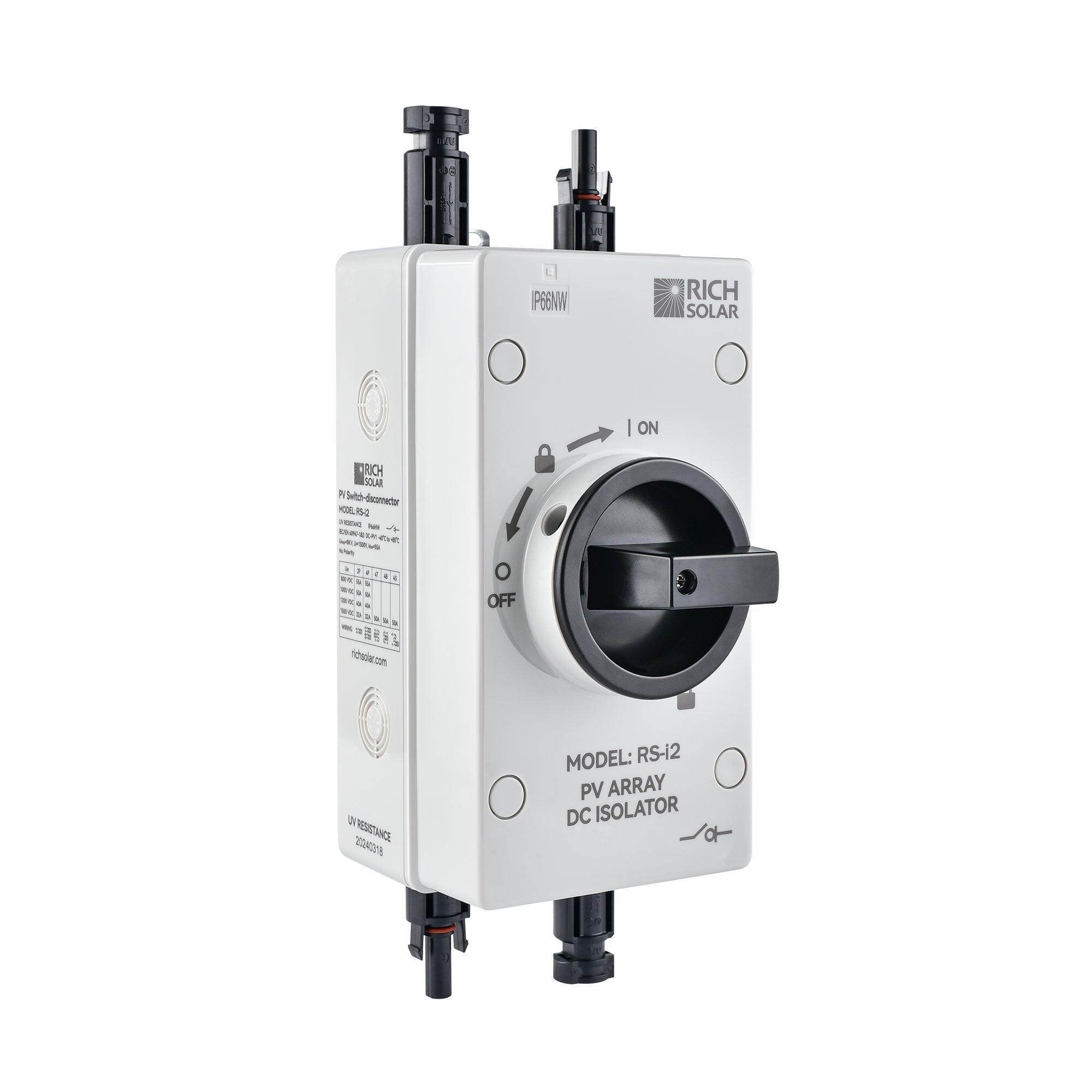

Solar PV DC Quick Disconnect Switch | Solar Array DC Quick Disconnect Switch | 1500 Volt 55 Amp | 2 Pole 1 String | Easy to Install

SKU RS-i2
$99.99
$99.99

RICH SOLAR

Solar PV DC Quick Disconnect Switch | Solar Array DC Quick Disconnect Switch | 1500 Volt 55 Amp | 2 Pole 1 String | Easy to Install

SKU RS-i2
$99.99
Solar PV DC Quick Disconnect Switch | Solar Array DC Quick Disconnect Switch | 1500 Volt 55 Amp | 2 Pole 1 String | Easy to Install

Frequently Bought Together

Total price$7,688.98

Product Description

Features

  • Quickly disconnects DC power from your solar array to the charge controller, batteries and/or inverters.
  • Outdoor rated.
  • Off and on-grid applications.

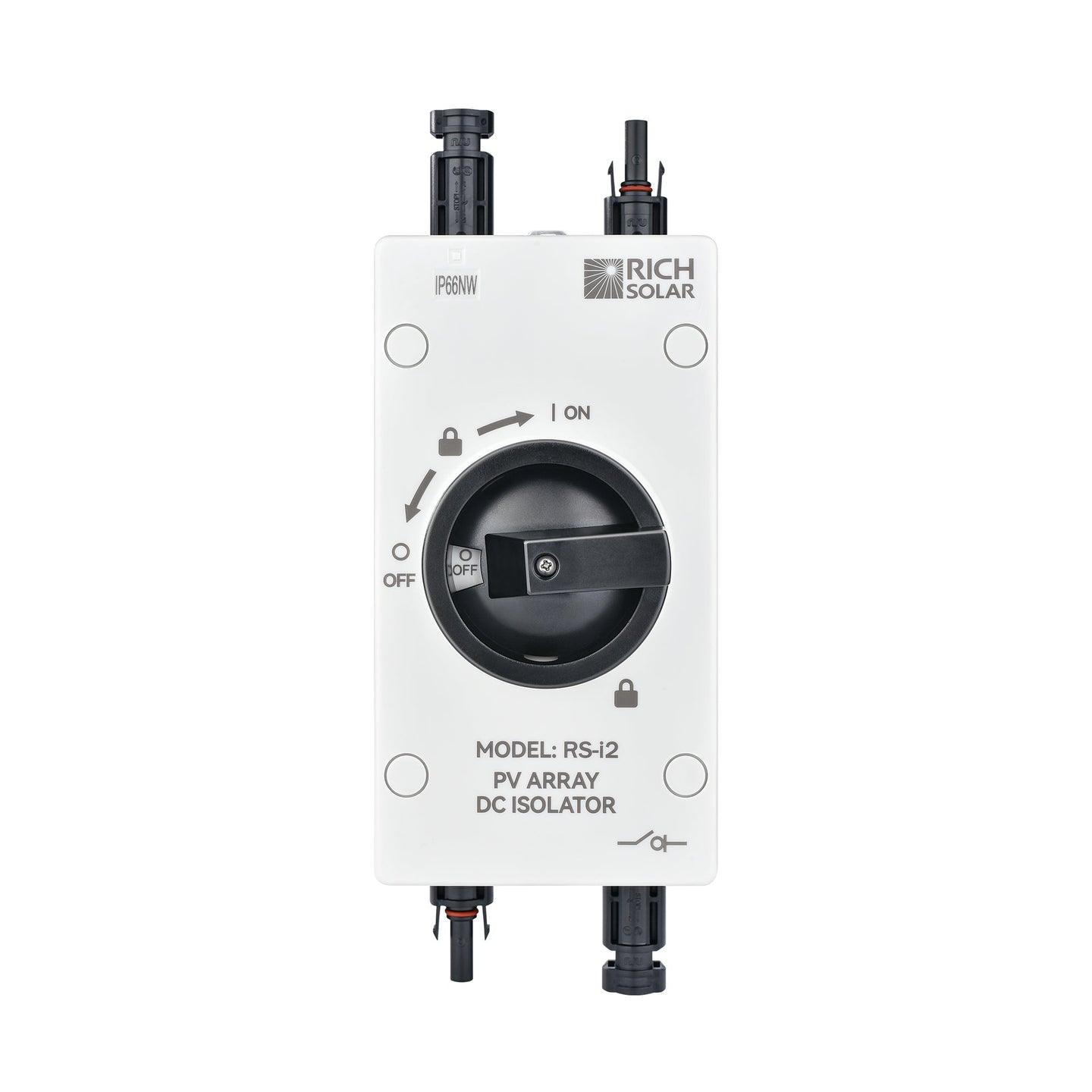

  • Isolated SAFE-LOCK with three rotational positions, reducing the risk of tampering.
  • 2 poles and 1 string.
  • Ensures the disconnection of load circuits and suppression of the arc in under 3 milliseconds.
  • Lockout option.

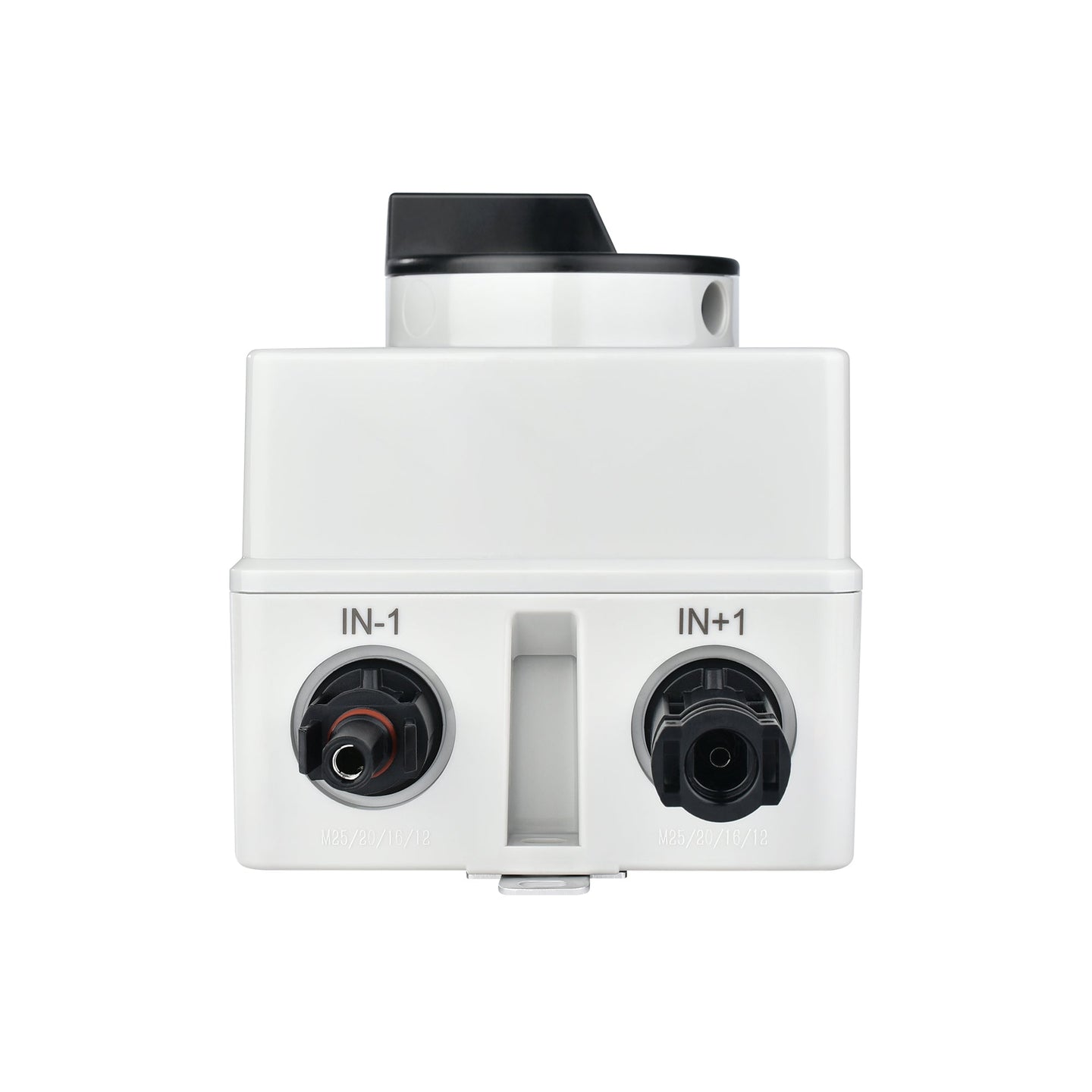

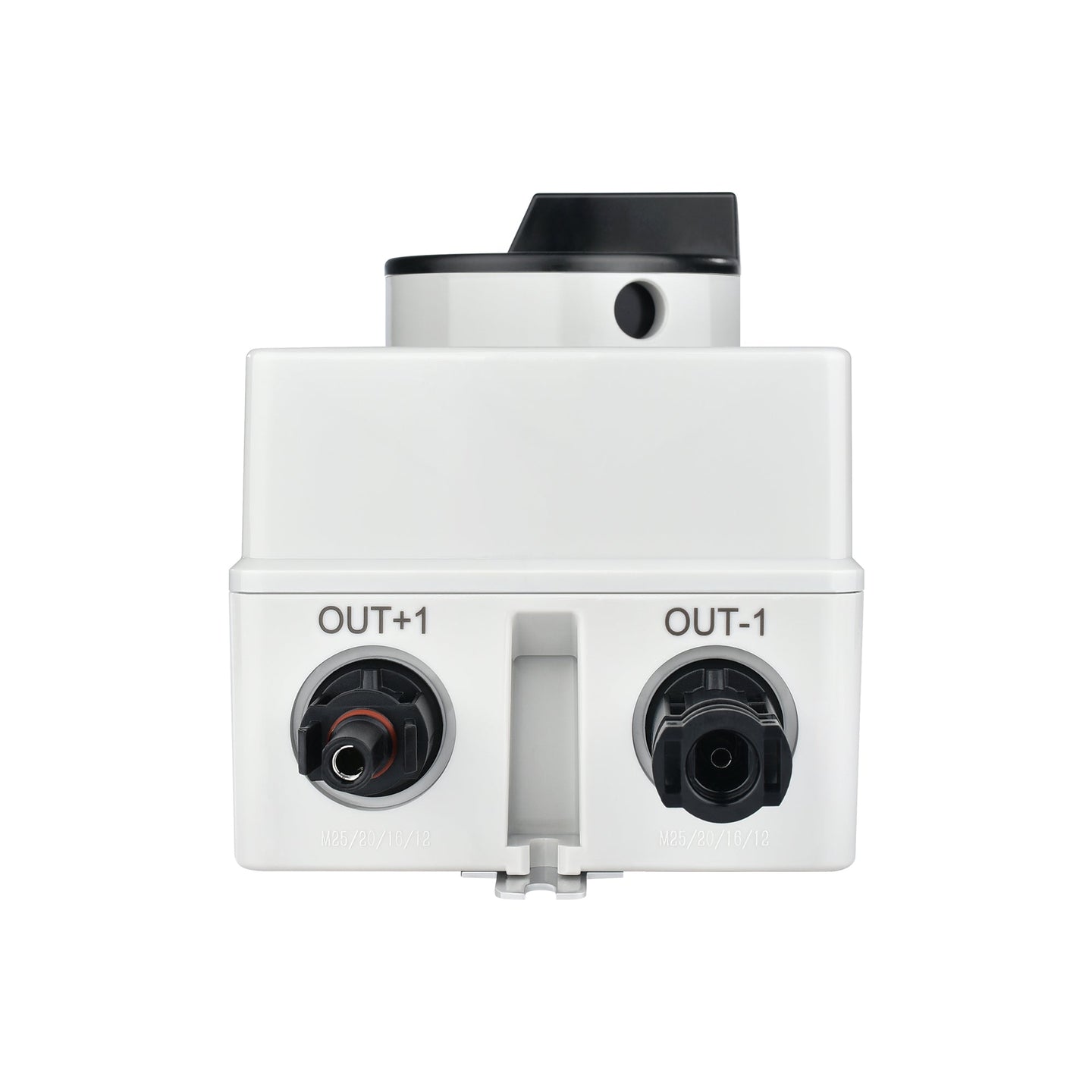

  • Output and input connections are built for easy setup and installation.

Solar PV DC Quick Disconnect Switch <

Specifications

  • Max. Rated Current: 55A
  • Max. Rated Voltage: 1500VDC
  • Poles / Circuit: 2P in series
  • Supported PV Strings: 1 PV string
  • Impulse Withstand Voltage: 8 kV
  • Arc Suppression Time: <3ms
  • IP Rating: IP66NW
  • Operating Temperature: -40°F to +185°F (-40°C to +85°C)
  • Housing Material: Flame-retardant PC (UL94 V-0)
  • Dimensions (HxWxD): 9.8x3.8x4.3 in (249.4x97.6x110 mm)
  • Weight: 1.3lb (0.57kg)
  • Certifications: CE
  • Warranty: 3 years
